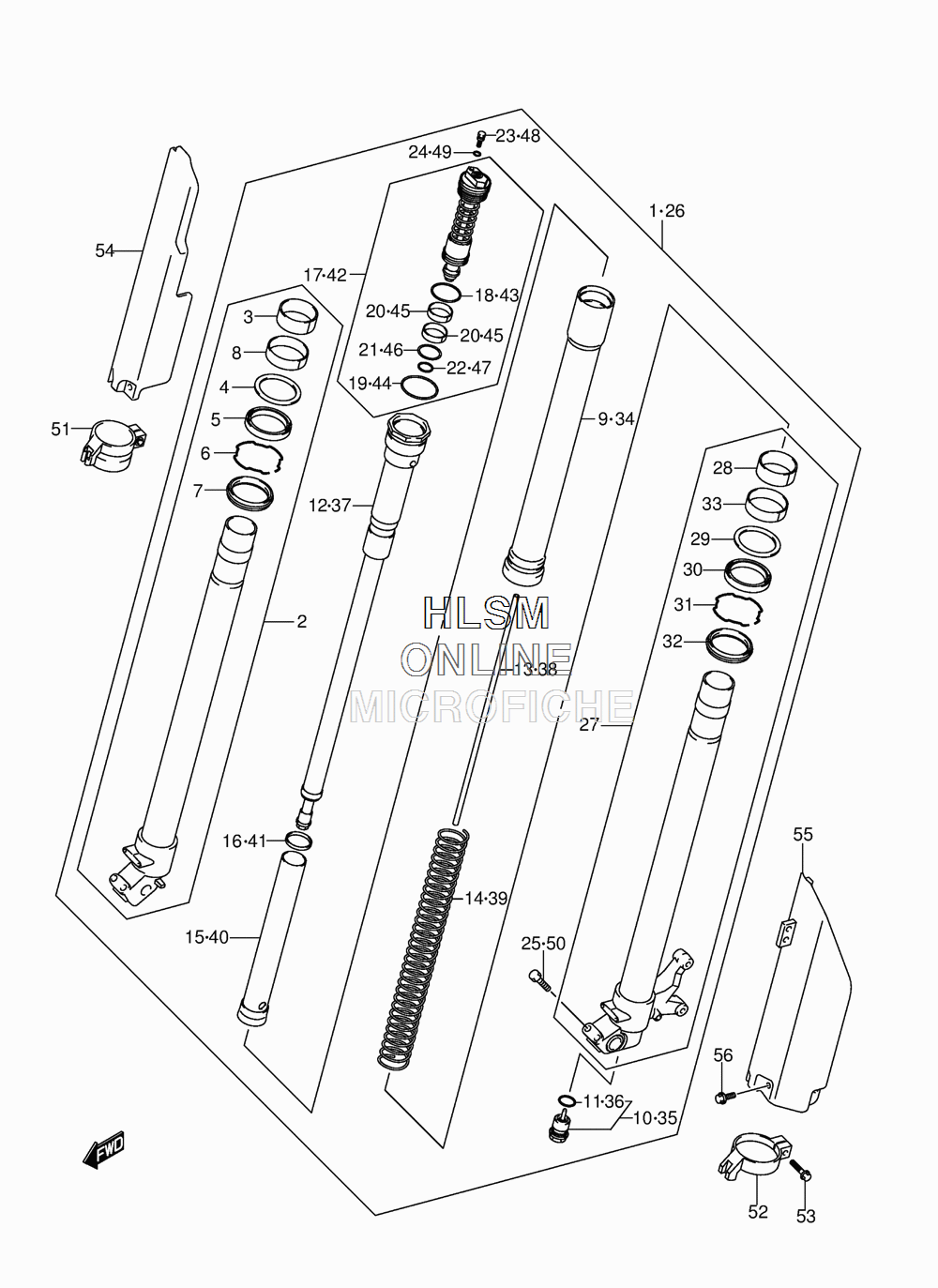

SUSPENSION - FRONT FORK для Suzuki DR-Z400SM - 2014 года выпуска`
-
№АртикулНазвание
-
151103-29F70 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-29F70 TUBE, INNERTUBE, INNER
-
351167-36F00 BUSH, GUIDEBUSH, GUIDE
-
451158-36F00 SPACER, SEALSPACER, SEAL
-
551153-37F80 OIL SEALOIL SEAL
-
651156-27C40 RING, STOPPERRING, STOPPER
-
751173-37F80 SEAL, DUSTSEAL, DUST
-
851121-36F00 BUSH, SLIDEBUSH, SLIDE
-
951130-29F70 TUBE, OUTERTUBE, OUTER
-
1051170-37F70 BOLT, CENTERBOLT, CENTER
-
1151177-36E20 O-RINGO-RING
-
1251190-29F70 ROD, FRONT DAMPERROD, FRONT DAMPER
-
1351191-29F70 ROD, PUSHROD, PUSH
-
1451171-29F70 SPRING, FRONTSPRING, FRONT
-
1551198-37F70 COLLAR, SPRINGCOLLAR, SPRING
-
1651178-29F70 SEAT, SPRINGSEAT, SPRING
-
1751351-29F70 BOLT, FORKBOLT, FORK
-
1851117-37F80 O-RINGO-RING
-
1951118-37F80 O-RINGO-RING
-
2051123-28E30 BUSHBUSH
-
2151174-36E40 O-RINGO-RING
-
2251175-36E20 O-RINGO-RING
-
2351357-36F20 BOLT, PLUGBOLT, PLUG
-
2451358-28E30 O-RING, PLUGO-RING, PLUG
-
2551166-35F00 BOLTBOLT
-
2651104-29F70 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2751120-29F70 TUBE, INNERTUBE, INNER
-
2851167-36F00 BUSH, GUIDEBUSH, GUIDE
-
2951158-36F00 SPACER, SEALSPACER, SEAL
-
3051153-37F80 OIL SEALOIL SEAL
-
3151156-27C40 RING, STOPPERRING, STOPPER
-
3251173-37F80 SEAL, DUSTSEAL, DUST
-
3351121-36F00 BUSH, SLIDEBUSH, SLIDE
-
3451130-29F70 TUBE, OUTERTUBE, OUTER
-
3551170-37F70 BOLT, CENTERBOLT, CENTER
-
3651177-36E20 O-RINGO-RING
-
3751190-29F70 ROD, FRONT DAMPERROD, FRONT DAMPER
-
3851191-29F70 ROD, PUSHROD, PUSH
-
3951171-29F70 SPRING, FRONTSPRING, FRONT
-
4051198-37F70 COLLAR, SPRINGCOLLAR, SPRING
-
4151178-29F70 SEAT, SPRINGSEAT, SPRING
-
4251351-29F70 BOLT, FORKBOLT, FORK
-
4351117-37F80 O-RINGO-RING
-
4451118-37F80 O-RINGO-RING
-
4551123-28E30 BUSHBUSH
-
4651174-36E40 O-RINGO-RING
-
4751175-36E20 O-RINGO-RING
-
4851357-36F20 BOLT, PLUGBOLT, PLUG
-
4951358-28E30 O-RINGO-RING
-
5051166-35F00 BOLTBOLT
-
5151220-36E61 GUIDE, PROTECTOR RIGHT HANDGUIDE, PROTECTOR RIGHT HAND
-
5251210-36E61 GUIDE, PROTECTOR LEFT HANDGUIDE, PROTECTOR LEFT HAND
-
5301547-06207 BOLT 6 X 20BOLT 6 X 20
-
5451501-29F70-019 PROTECTOR RIGHT HAND (BLACK)PROTECTOR RIGHT HAND (BLACK)
-
5551511-29F70-019 PROTECTOR LEFT HAND (BLACK)PROTECTOR LEFT HAND (BLACK)
-
5609103-06256 BOLT (6X10)BOLT (6X10)
