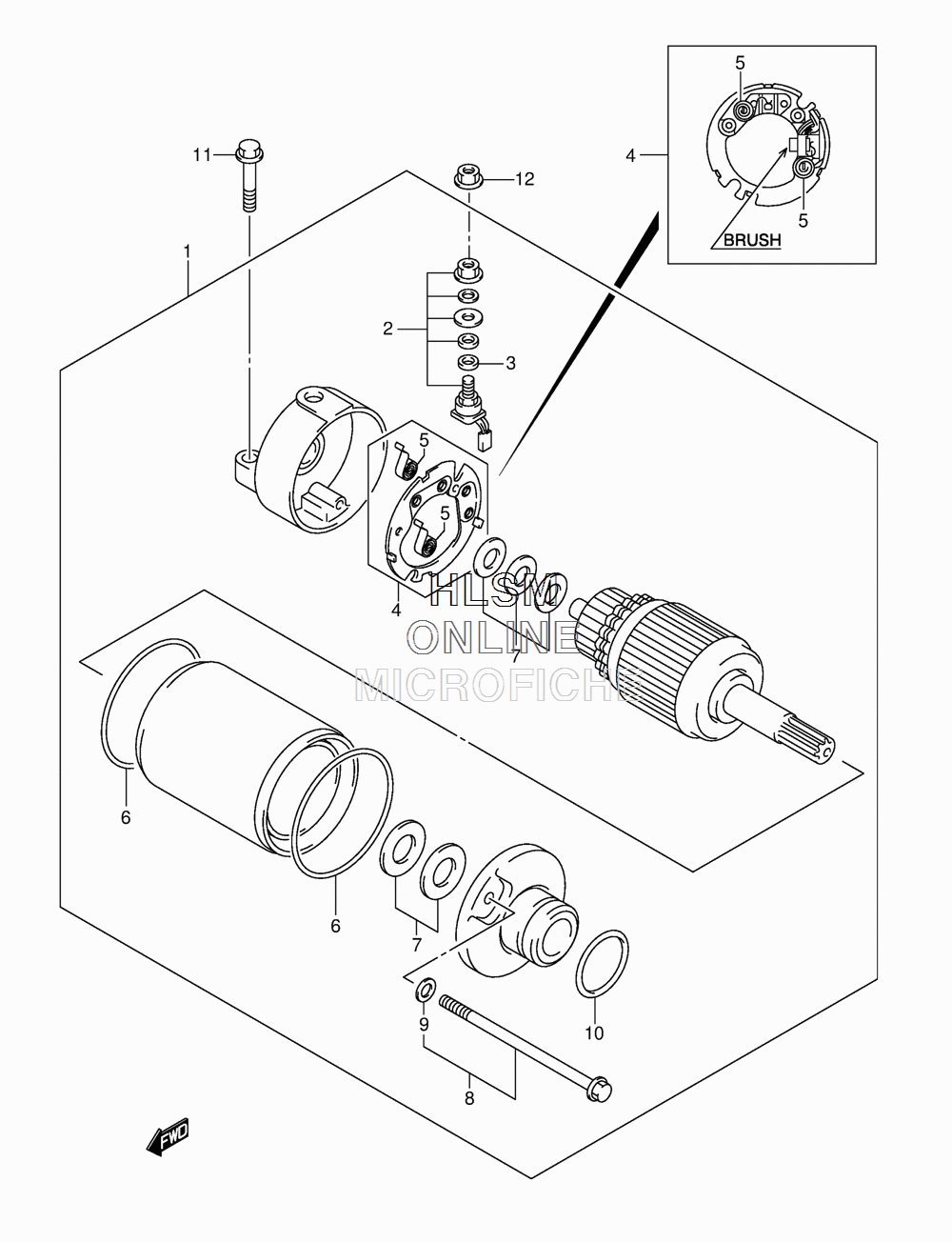

STARTING MOTOR для Suzuki DR-Z400SM - 2014 года выпуска`
-
№АртикулНазвание
-
131100-29F00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-13E00 BRUSH TERMINAL SETBRUSH TERMINAL SET
-
331143-49040 O-RINGO-RING
-
431132-13E00 BRUSH HOLDER SETBRUSH HOLDER SET
-
531135-31300 SPRING, BRUSHSPRING, BRUSH
-
631264-13E00 O-RINGO-RING
-
731170-19B10 WASHER SETWASHER SET
-
831280-19F00 BOLT SETBOLT SET
-
931156-13E00 O-RINGO-RING
-
1009280-24003 O-RING (D:3,ID:24.5)O-RING (D:3,ID:24.5)
-
1109103-06212 BOLT (6X25)BOLT (6X25)
-
1208361-3506A NUTNUT
