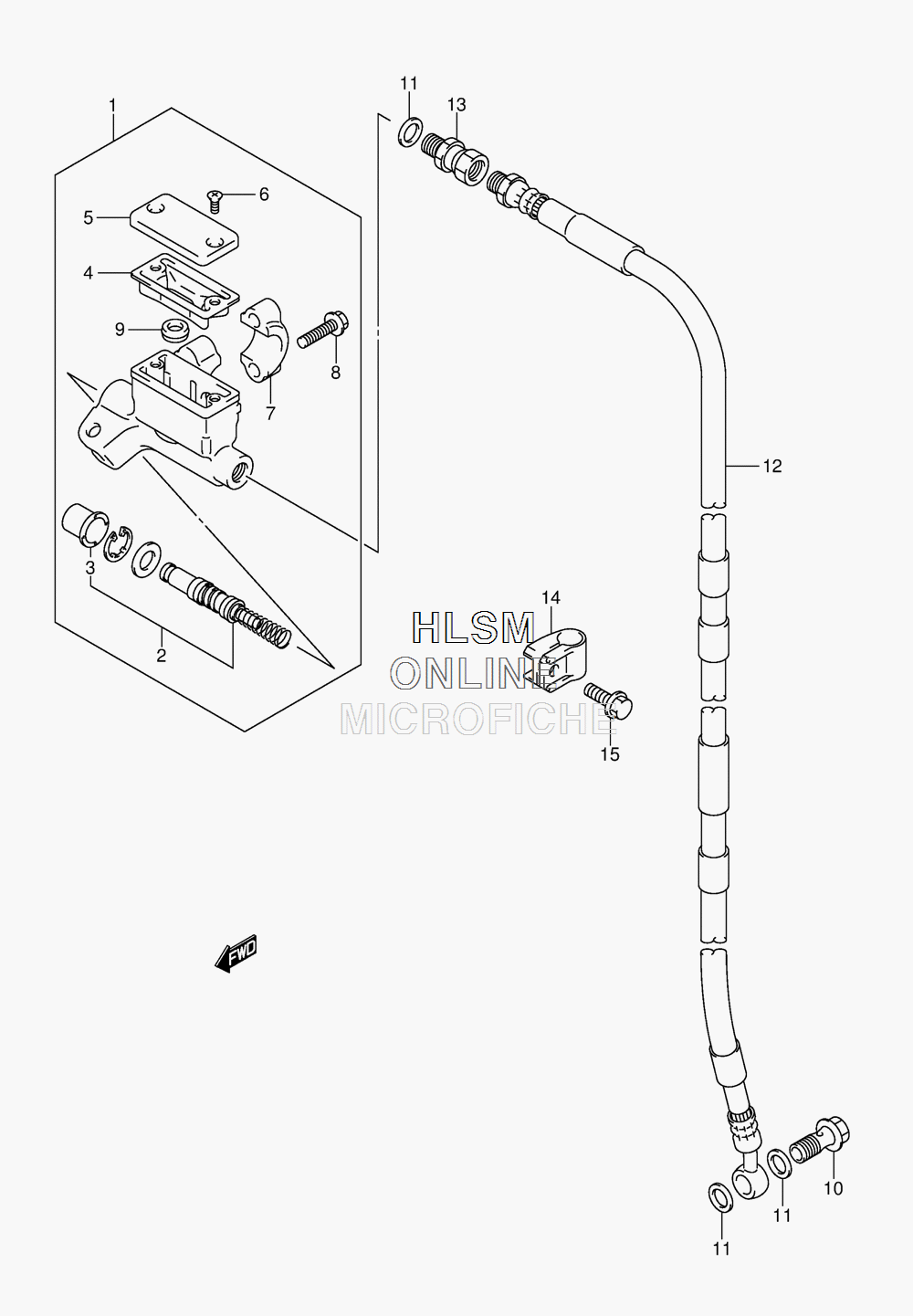

BRAKE - FRONT MASTER CYLINDER для Suzuki DR-Z125LL4 - 2014 года выпуска
-
№АртикулНазвание
-
159600-27C01 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-27820 PISTON AND CUP SETPISTON AND CUP SET
-
359666-44300 BOOTBOOT
-
459667-14500 DIAPHRAGMDIAPHRAGM
-
559669-27C01 CAPCAP
-
669689-49300 SCREW, RESERVOIR CAPSCREW, RESERVOIR CAP
-
759671-27C00 HOLDERHOLDER
-
859675-27C00 BOLTBOLT
-
959748-14500 SEPARATORSEPARATOR
-
1009360-10062 UNION BOLT (10X1.25X22)UNION BOLT (10X1.25X22)
-
1109161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1259480-08G01 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1359290-14501 ADAPTER, BRAKE HOSEADAPTER, BRAKE HOSE
-
1459243-03B01 CLAMP, FRONT BRAKE HOSECLAMP, FRONT BRAKE HOSE
-
1501547-0616A BOLTBOLT
