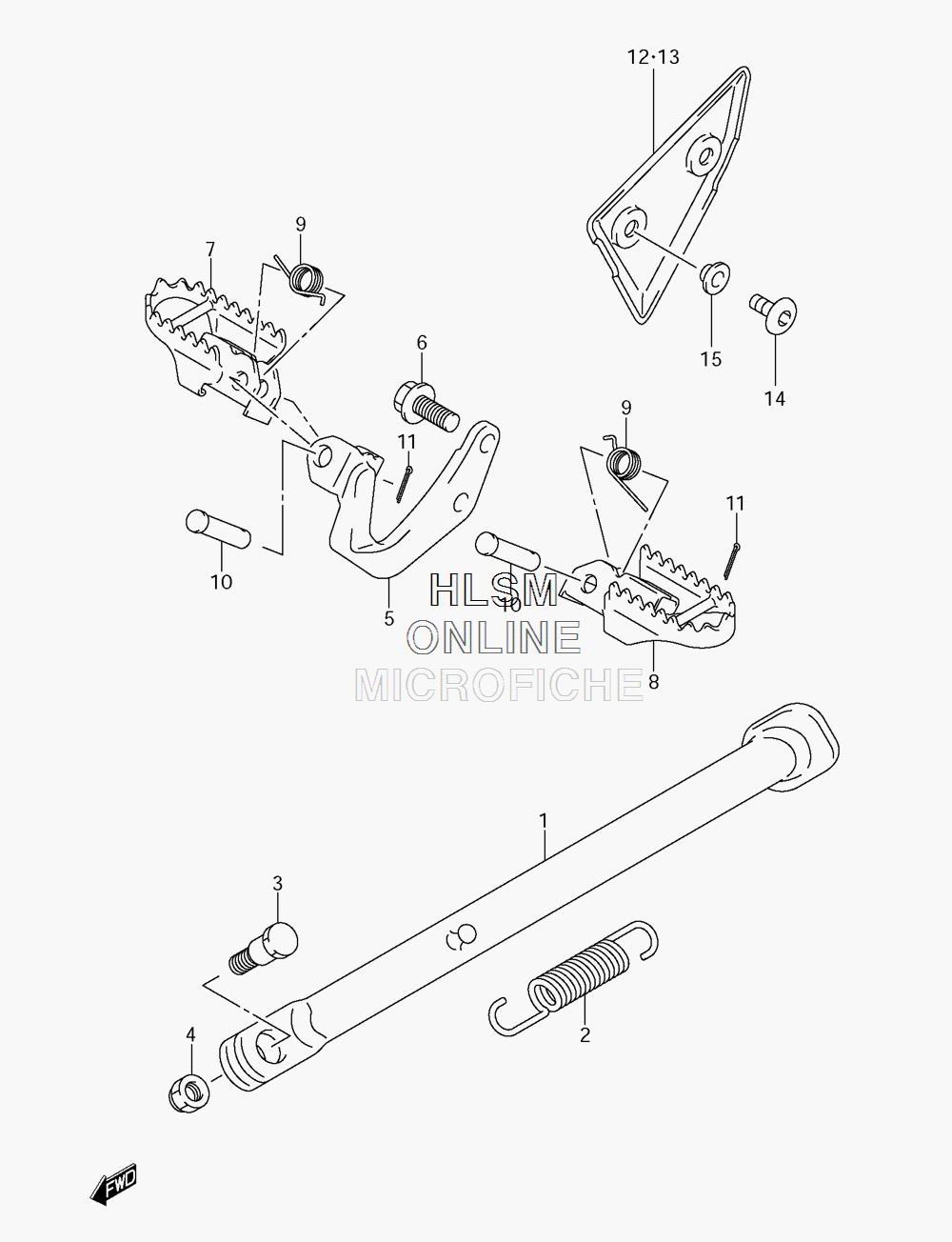

BRAKE PEDAL W/ STAND (CANADA ONLY) для Suzuki DR-Z125LL3 - 2013 года выпуска
-
№АртикулНазвание
-
142310-08G00 STAND, PROPSTAND, PROP
-
209443-17006 SPRINGSPRING
-
309111-10060 BOLT (10X33)BOLT (10X33)
-
442321-03FK0 NUTNUT
-
543510-08G00 BRACKET, FOOTREST RIGHTBRACKET, FOOTREST RIGHT
-
601550-1025B BOLTBOLT
-
743550-03B00-019 FOOTREST, FRONT RIGHT (019 - BLACK)FOOTREST, FRONT RIGHT (019 - BLACK)
-
843560-03B00-019 FOOTREST, FRONT LEFT (019 -BLACK)FOOTREST, FRONT LEFT (019 -BLACK)
-
909448-15004 SPRINGSPRING
-
1009200-10013 PINPIN
-
1104111-2015A COTTER PINCOTTER PIN
-
1243571-08G00 GUARD, FOOTREST RIGHTGUARD, FOOTREST RIGHT
-
1343572-08G00 GUARD, FOOTREST LEFTGUARD, FOOTREST LEFT
-
1409139-06115 SCREW (6X12)SCREW (6X12)
-
1509169-06071 WASHERWASHER
