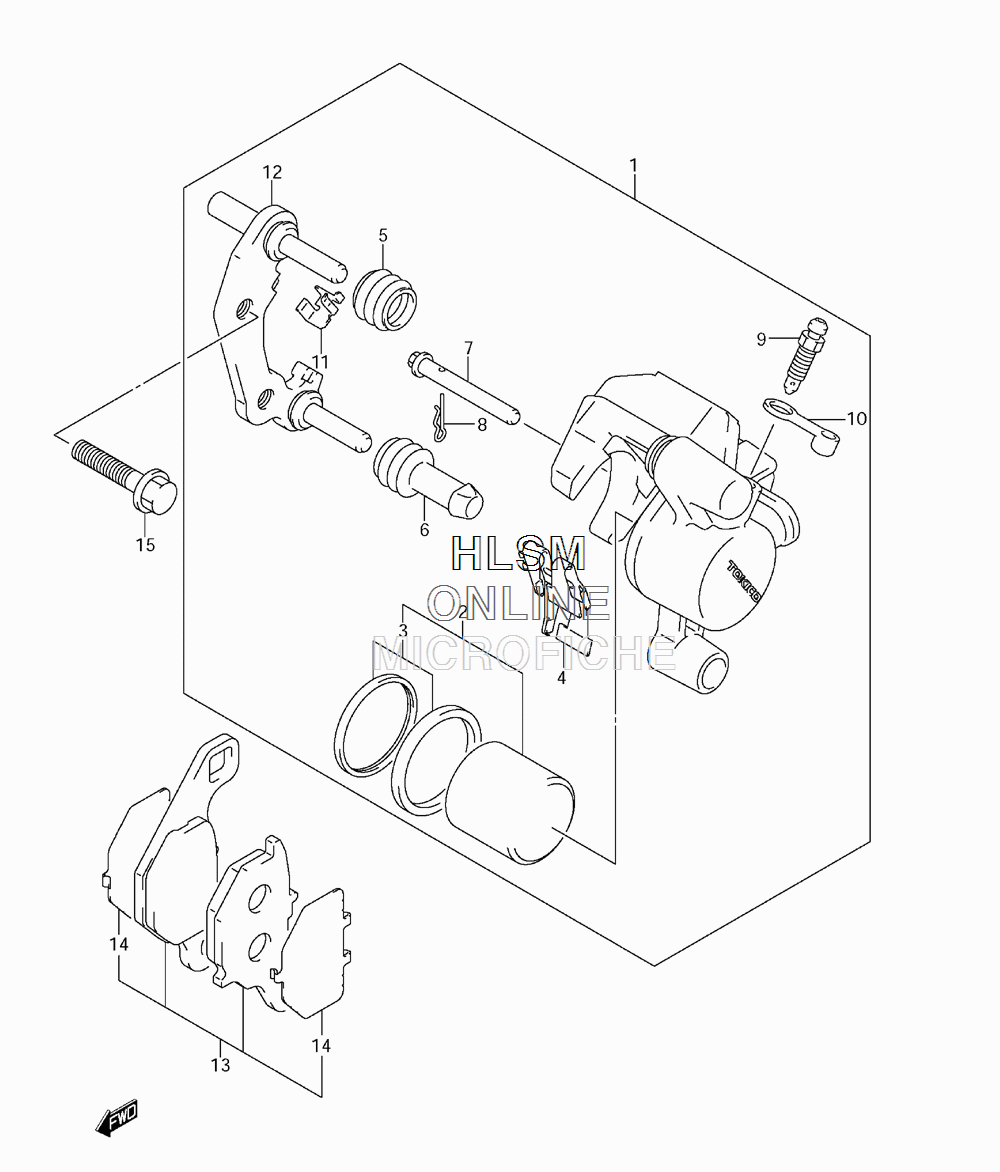

BRAKE - FRONT CALIPER для Suzuki DR-Z100LL3 - 2013 года выпуска`
-
№АртикулНазвание
-
159300-03B10-999 CALIPER ASSY, FRONT LEFTCALIPER ASSY, FRONT LEFT
-
259301-20830 ...PISTON SET...PISTON SET
-
359300-35830 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-20E00 ...SPRING, PAD...SPRING, PAD
-
559312-36500 ...BOOT, AXLE...BOOT, AXLE
-
659313-36500 ...INSULATOR, AXLE...INSULATOR, AXLE
-
769141-44B02 ...PIN, PAD...PIN, PAD
-
869142-45000 ...CLIP, PAD PIN...CLIP, PAD PIN
-
959121-18410 ...BLEEDER...BLEEDER
-
1059122-02B40 ...CAP, BLEEDER...CAP, BLEEDER
-
1159116-20E00 ...GUIDE, PAD...GUIDE, PAD
-
1259350-20E00 ...CARRIER, CALIPER RH...CARRIER, CALIPER RH
-
1359301-20870 PAD & SHIM SETPAD & SHIM SET
-
1459371-20E00 ...SHIM, PAD...SHIM, PAD
-
1501550-0835A BOLTBOLT
