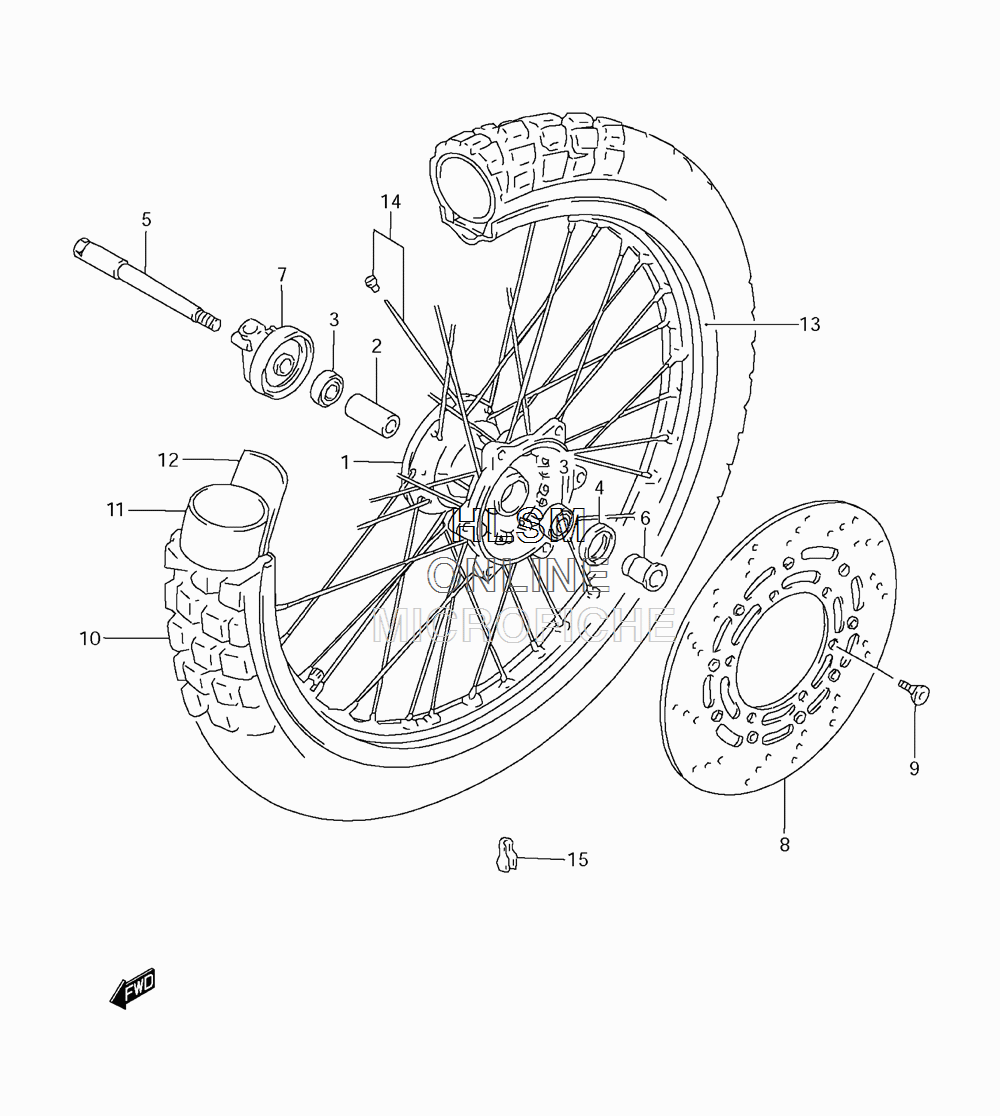

WHEEL - FRONT для Suzuki DR-650SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
154111-31D01 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254731-32E00 SPACER, FRONT HUBSPACER, FRONT HUB
-
308123-60037 BEARINGBEARING
-
409284-23001 OIL SEAL (23X35X6) (LEFT)OIL SEAL (23X35X6) (LEFT)
-
554711-05D01 AXLE, FRONTAXLE, FRONT
-
654751-05D00 SPACER, AXLE, LEFTSPACER, AXLE, LEFT
-
754600-05D00 BOX ASSY, SPEEDOMETER GEARBOX ASSY, SPEEDOMETER GEAR
-
859220-32E00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
909106-08155 BOLT (8X20)BOLT (8X20)
-
1055110-32E00 TIRE, FRONT (90/90-21 54S) (BRIDGESTONE)TIRE, FRONT (90/90-21 54S) (BRIDGESTONE)
-
1155200-32E01 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1255261-32E01 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1355311-44B00 RIM, FRONT WHEEL (1.85X21)RIM, FRONT WHEEL (1.85X21)
-
1455320-31D00 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
15-155412-41F00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
15-255413-41F00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
