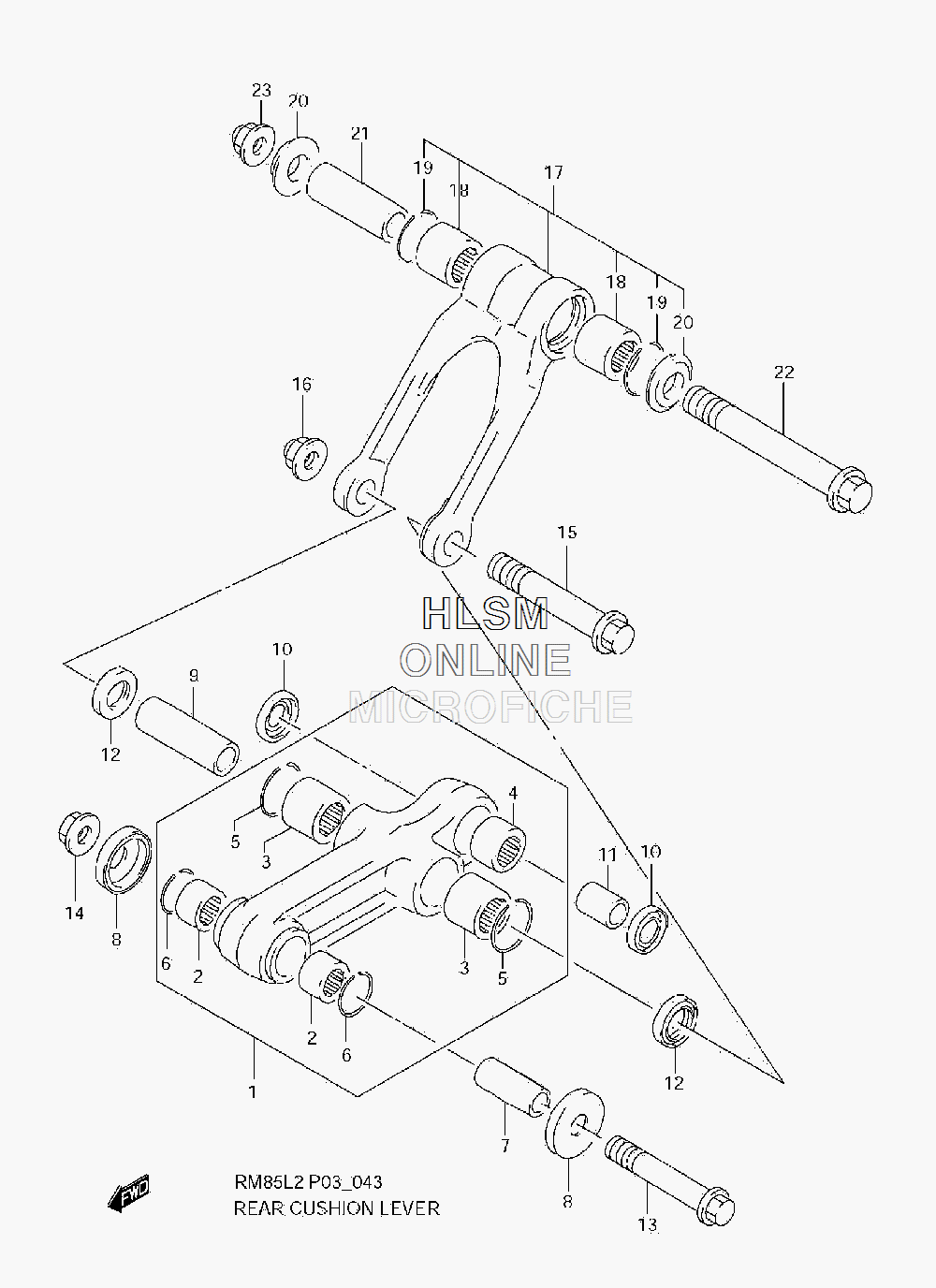

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM85LL2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    62600-03890 LEVER SET, REAR CUSHION (INCL. 2-6)
    LEVER SET, REAR CUSHION (INCL. 2-6)
  • 2
    09263-14027 BEARING (14X20X12)
    BEARING (14X20X12)
  • 3
    09263-17039 BEARING (17X24X20)
    BEARING (17X24X20)
  • 4
    09263-20083 BEARING (20X26X12)
    BEARING (20X26X12)
  • 5
    62657-34A01 RING, BEARING STOPPER LEVER
    RING, BEARING STOPPER LEVER
  • 6
    09381-20004 CIRCLIP
    CIRCLIP
  • 7
    62317-02B40 SPACER, FRONT (10X14X37)
    SPACER, FRONT (10X14X37)
  • 8
    62162-03B00 SEAL, REAR CUSHION LEVER FR DUST
    SEAL, REAR CUSHION LEVER FR DUST
  • 9
    62626-02B40 SPACER, REAR CUSHION LEVER CENTER
    SPACER, REAR CUSHION LEVER CENTER
  • 10
    09284-20001 OIL SEAL (20X26X4.5)
    OIL SEAL (20X26X4.5)
  • 11
    62684-36E00 SPACER, RR CUSHION LEVER REAR
    SPACER, RR CUSHION LEVER REAR
  • 12
    09285-17001 OIL SEAL (17X24X3)
    OIL SEAL (17X24X3)
  • 13
    62658-02B40 BOLT, REAR CUSHION LEVER FRONT
    BOLT, REAR CUSHION LEVER FRONT
  • 14
    09159-10115 NUT
    NUT
  • 15
    62621-02B40 BOLT, REAR CUSHION LEVER CENTER
    BOLT, REAR CUSHION LEVER CENTER
  • 16
    08319-3112A NUT
    NUT
  • 17
    62600-03880 ROD SET, CUSHION LEVER (INCL. 18-20)
    ROD SET, CUSHION LEVER (INCL. 18-20)
  • 18
    09263-17039 BEARING (17X24X20)
    BEARING (17X24X20)
  • 19
    62657-34A01 RING, BEARING STOPPER LEVER
    RING, BEARING STOPPER LEVER
  • 20
    62647-02B40 SPACER, REAR CUSHION ROD SIDE
    SPACER, REAR CUSHION ROD SIDE
  • 21
    62646-02B40 SPACER, REAR CUSHION ROD
    SPACER, REAR CUSHION ROD
  • 22
    62622-02B40 BOLT, REAR CUSHION ROD
    BOLT, REAR CUSHION ROD
  • 23
    08319-3112A NUT
    NUT
