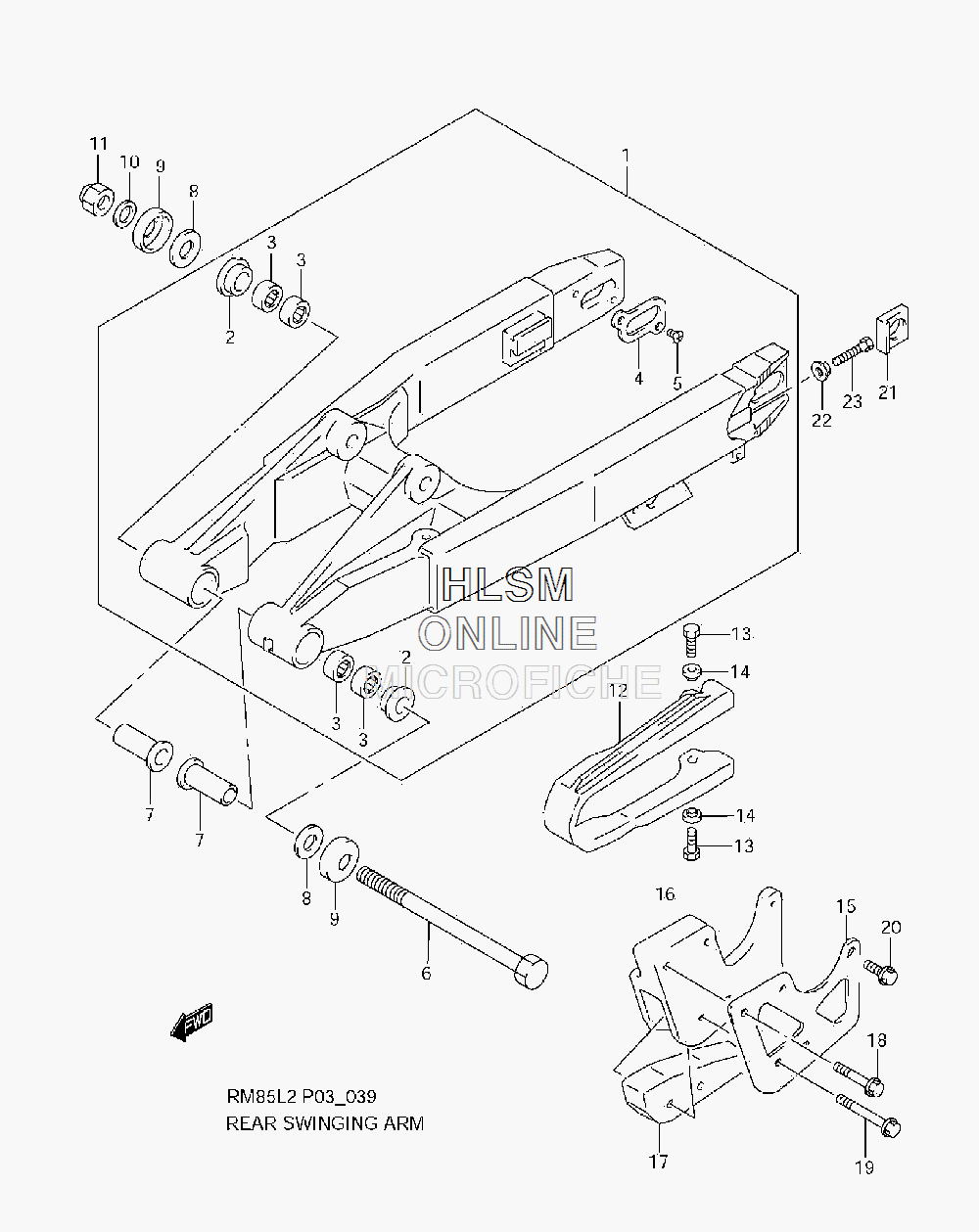

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM85L2 - 2012 года выпуска
-
№АртикулНазвание
-
161000-03BB0 SWINGING ARM ASSY, REAR (INCL. 2-5)SWINGING ARM ASSY, REAR (INCL. 2-5)
-
261261-02B00 BUSHINGBUSHING
-
309263-17039 BEARING (17X24X20)BEARING (17X24X20)
-
409285-17001 OIL SEAL (17X24X3)OIL SEAL (17X24X3)
-
502122-0410B SCREWSCREW
-
661211-02B40 SHAFT, REAR SWINGARM PIVOTSHAFT, REAR SWINGARM PIVOT
-
761251-02B40 SPACER, REAR SWINGARM PIVOTSPACER, REAR SWINGARM PIVOT
-
808211-12282 WASHERWASHER
-
961262-03B00 COVER, PIVOTCOVER, PIVOT
-
1008322-0112B WASHERWASHER
-
1108319-2112A NUTNUT
-
1261273-02B20 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1309103-06234 BOLT (6X16)BOLT (6X16)
-
1409169-06057 WASHERWASHER
-
1561342-02B40 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1661343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1761348-02B20 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1809103-06251 BOLT (6X30)BOLT (6X30)
-
1909103-06241 BOLT (6X40)BOLT (6X40)
-
2009103-06234 BOLT (6X16)BOLT (6X16)
-
2161445-03B00 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2209159-08034 NUTNUT
-
2309100-08301 BOLT (8X43)BOLT (8X43)
