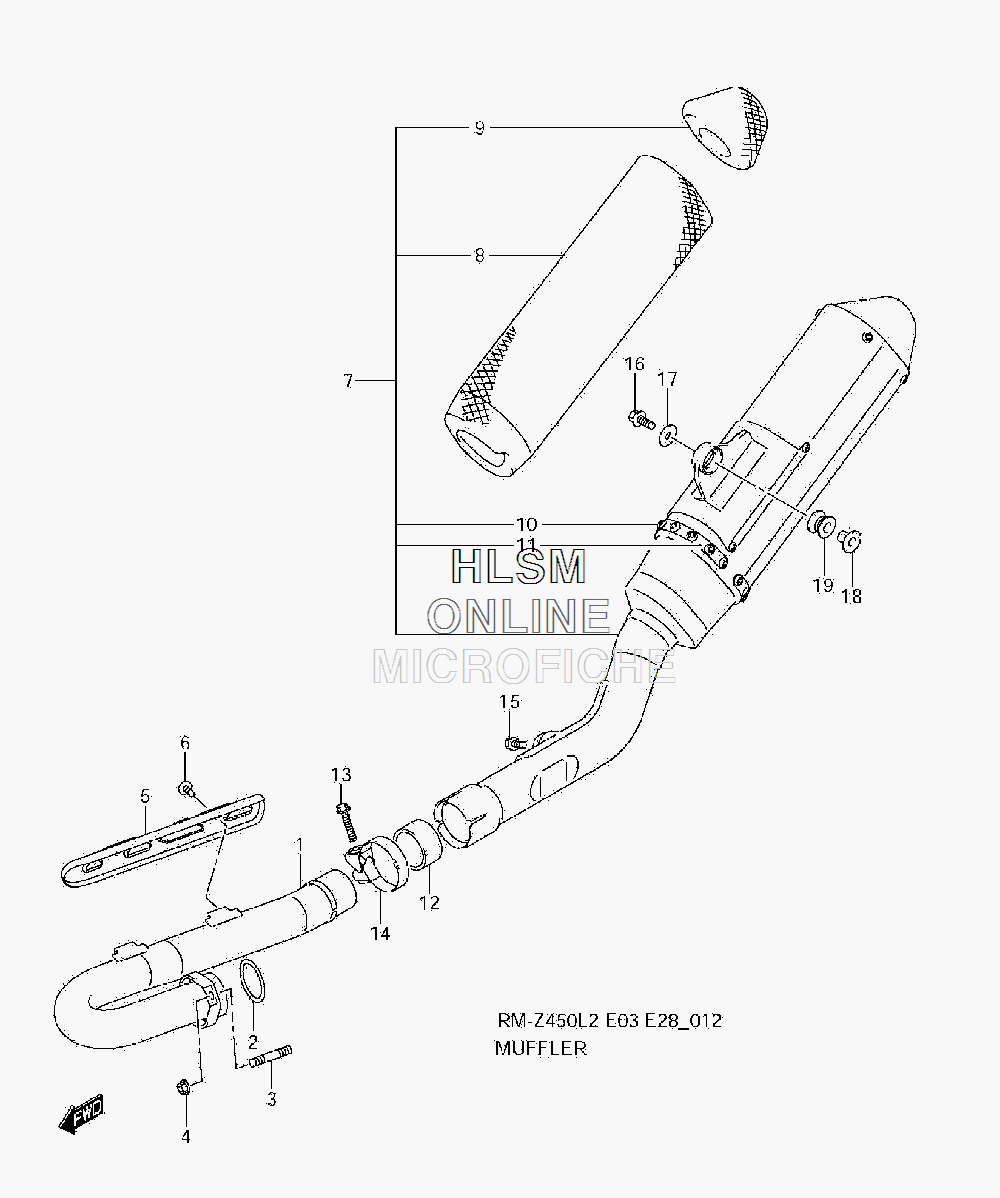

MUFFLER для Suzuki RM-Z450L2 - 2012 года выпуска
-
№АртикулНазвание
-
114150-28H20 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-35G00 GASKETGASKET
-
301421-0820A BOLT, STUDBOLT, STUD
-
408316-1008A NUTNUT
-
514186-28H20 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609139-06178 BOLT (6X8)BOLT (6X8)
-
714310-28H50 BODY, MUFFLER (INCL. 8-11)BODY, MUFFLER (INCL. 8-11)
-
814351-28H40 SILENCER, MUFFLER (OPT)SILENCER, MUFFLER (OPT)
-
914355-49H00 GLASS WOOL, MUFFLER TAIL (OPT)GLASS WOOL, MUFFLER TAIL (OPT)
-
1014454-28H00 RIVET, MUFFLERRIVET, MUFFLER
-
1114781-28H10 BAND, MUFFLERBAND, MUFFLER
-
1214771-42F10 CONNECTORCONNECTOR
-
1309103-08391 BOLT (8X35)BOLT (8X35)
-
1414459-28H00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1509103-08426 BOLT (8X20)BOLT (8X20)
-
1609103-08391 BOLT (8X35)BOLT (8X35)
-
1709160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
1809180-08157 SPACER (8.6X12X18.5)SPACER (8.6X12X18.5)
-
1909320-12043 CUSHIONCUSHION
