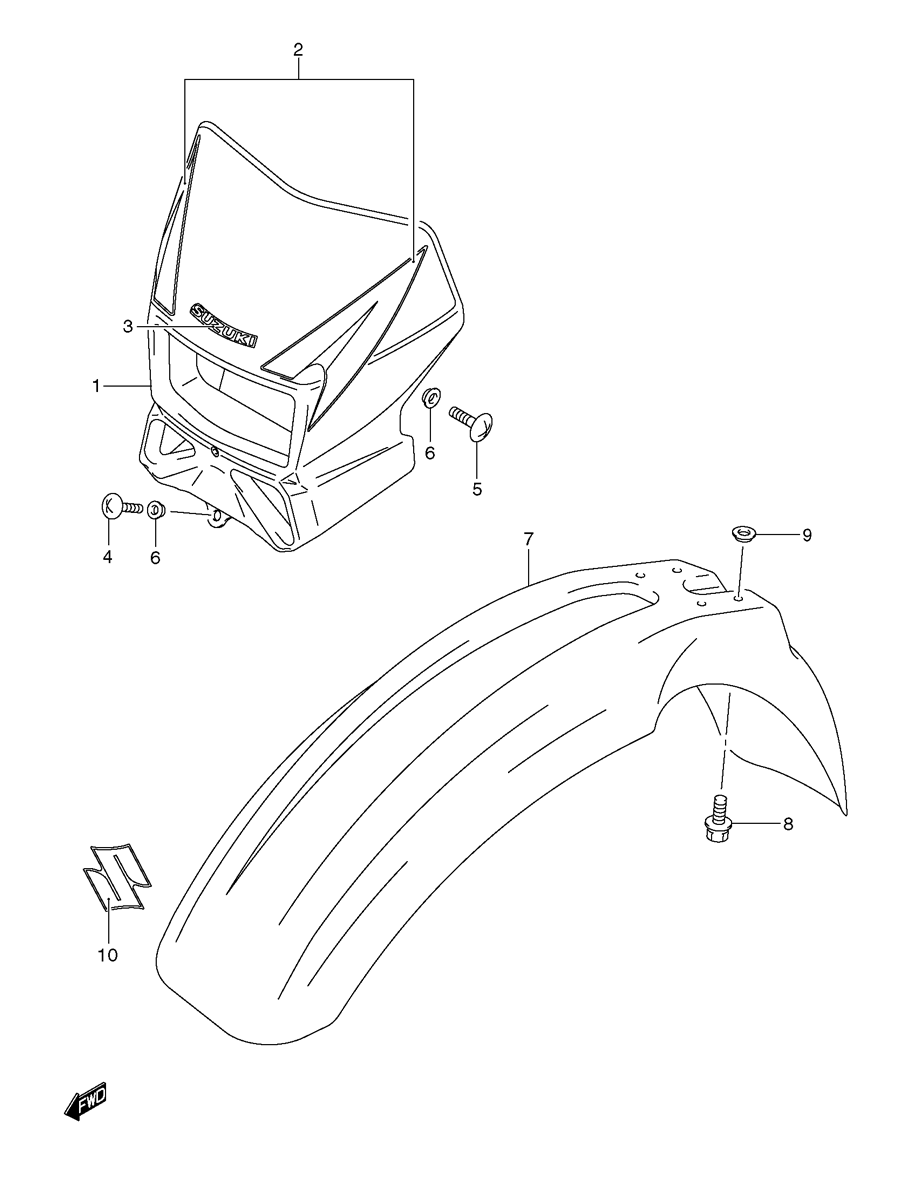

FENDER - FRONT для Suzuki DR-Z400SK9 - 2009 года выпуска`
-
№АртикулНазвание
-
151811-29F50-019 COVER, HEADLAMP (BLACK) (019)COVER, HEADLAMP (BLACK) (019)
-
151811-29F50-30H COVER, HEADLAMP (WHITE) (30H)COVER, HEADLAMP (WHITE) (30H)
-
268720-29FD0-GFN TAPE SET (GFN FOR 019)TAPE SET (GFN FOR 019)
-
268720-29FD0-GFM TAPE SET (GFM FRO 30H)TAPE SET (GFM FRO 30H)
-
368281-01H00-YD8 EMBLEM (SILVER) (YD8)EMBLEM (SILVER) (YD8)
-
402142-0512B SCREW, LOWERSCREW, LOWER
-
502142-0612B SCREW, SIDESCREW, SIDE
-
609169-06071 WASHERWASHER
-
753111-27C22-019 FENDER, FRONT (BLACK) (019)FENDER, FRONT (BLACK) (019)
-
753111-27C22-30H FENDER, FRONT (WHITE) (30H)FENDER, FRONT (WHITE) (30H)
-
809116-06170 BOLTBOLT
-
909169-06073 WASHERWASHER
-
1068151-07G10-YD8 EMBLEM "S" (SILVER) (YD8)EMBLEM "S" (SILVER) (YD8)
