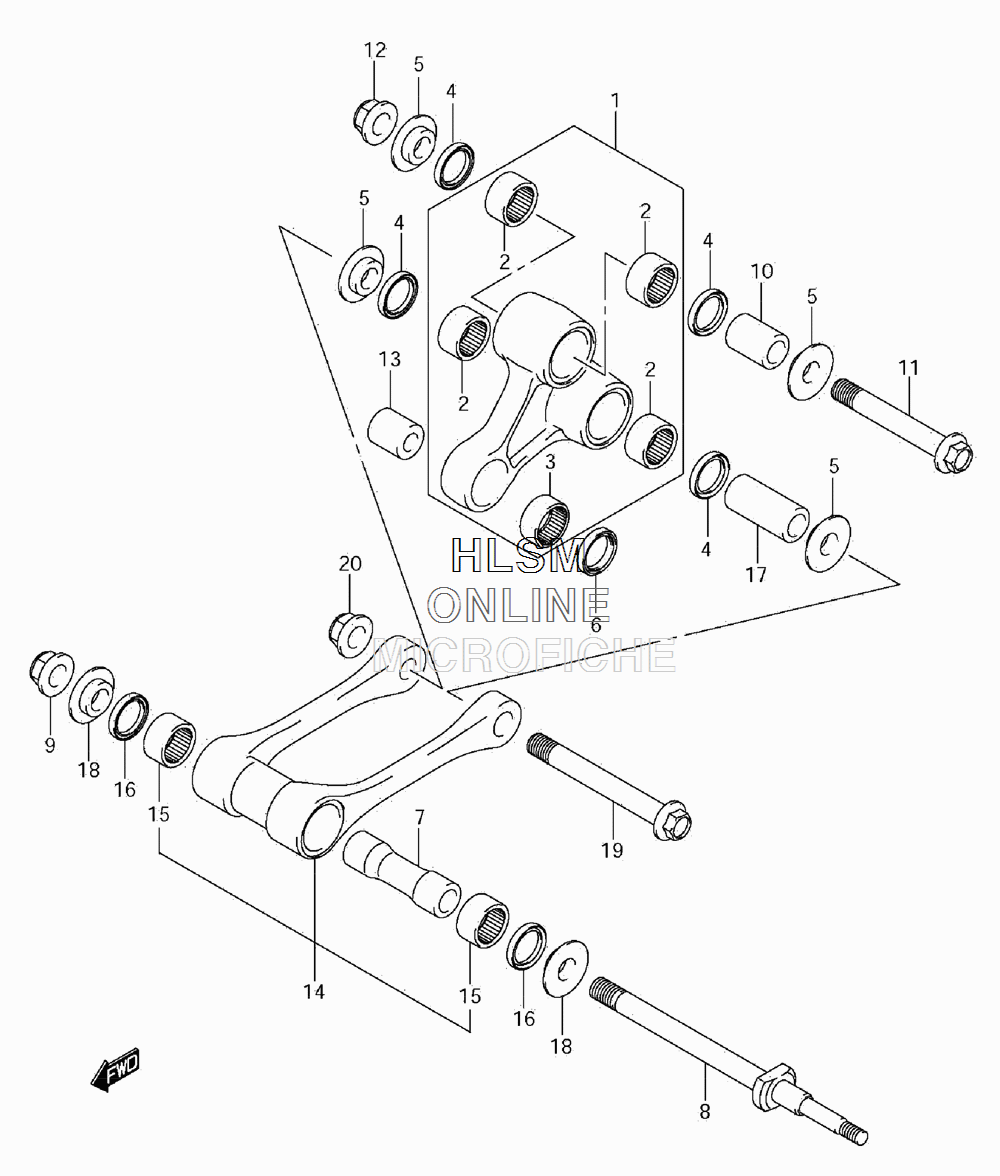

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM-Z450K8 - 2008 года выпуска`
-
№АртикулНазвание
-
162600-35850 LEVER SET, REAR CUSHION (INCL. 2-3)LEVER SET, REAR CUSHION (INCL. 2-3)
-
209263-20090 BEARING (20X26X14)BEARING (20X26X14)
-
309263-20083 BEARING (20X26X12)BEARING (20X26X12)
-
409284-20003 SEAL, DUST (19X26X4)SEAL, DUST (19X26X4)
-
562647-37F10 SPACERSPACER
-
609284-20001 SEAL, REAR (20X26X4.5)SEAL, REAR (20X26X4.5)
-
762317-37F10 SPACER, RR CUSHION RODSPACER, RR CUSHION ROD
-
862621-28H00 BOLT, RR CUSHION RODBOLT, RR CUSHION ROD
-
909159-12056 NUTNUT
-
1062648-37F10 SPACER, CENTER (15X20X44)SPACER, CENTER (15X20X44)
-
1162658-37F10 BOLT, CENTERBOLT, CENTER
-
1209159-12056 NUTNUT
-
1362684-36E00 SPACER, REAR CUSHION LEVERSPACER, REAR CUSHION LEVER
-
1462600-35860 ROD SET, REAR CUSHION LEVER (INC 15)ROD SET, REAR CUSHION LEVER (INC 15)
-
1509263-20090 BEARING (20X26X14)BEARING (20X26X14)
-
1609284-20003 SEAL (20X26X4)SEAL (20X26X4)
-
1762646-37F10 SPACER, RR CUSHION LOWERSPACER, RR CUSHION LOWER
-
1862647-37F10 SPACERSPACER
-
1962657-37F10 BOLT, RODBOLT, ROD
-
2009159-12056 NUTNUT
