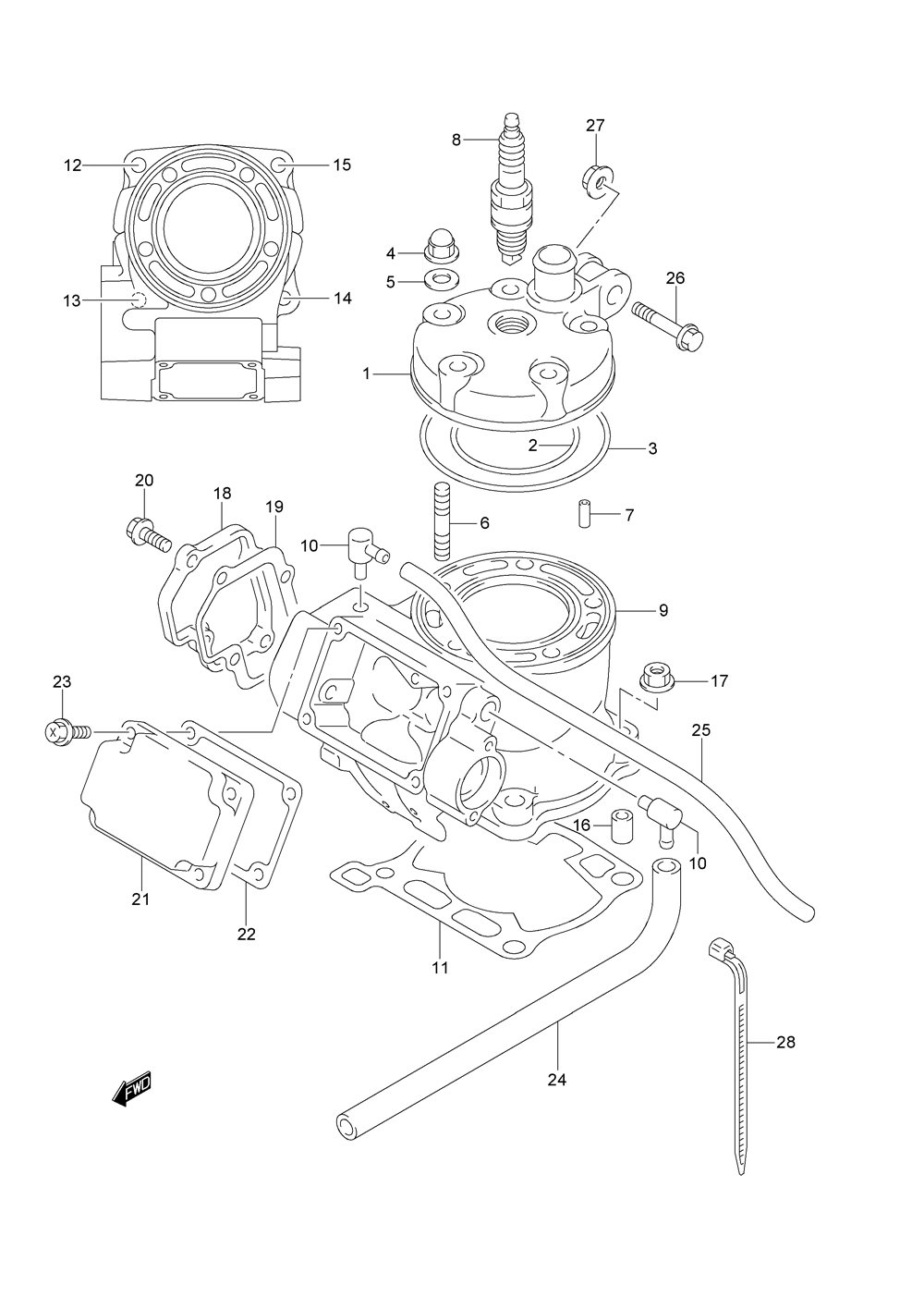

CYLINDER для Suzuki RM-125K8 - 2008 года выпуска`
-
№АртикулНазвание
-
111111-36F30 HEAD, CYLINDERHEAD, CYLINDER
-
211147-27C11 O RING, CYLINDER HEAD NO.1O RING, CYLINDER HEAD NO.1
-
311148-27C11 O RING, CYLINDER HEAD NO.2O RING, CYLINDER HEAD NO.2
-
409159-08049 NUTNUT
-
509168-08021 WASHERWASHER
-
609108-08227 STUD BOLT (L:38)STUD BOLT (L:38)
-
704221-04089 PINPIN
-
809482-00509 SPARK PLUG (NGK,R6918B-8)SPARK PLUG (NGK,R6918B-8)
-
911200-36870 CYLINDER SET (INCL. 10)CYLINDER SET (INCL. 10)
-
1016910-09401 UNION, CYLINDERUNION, CYLINDER
-
1111241-36F00 GASKET, CYLINDERGASKET, CYLINDER
-
1209108-08220 STUD BOLT (8X33)STUD BOLT (8X33)
-
1309108-08142 STUD BOLT (8X30)STUD BOLT (8X30)
-
1401421-0835A STUD BOLT (8X35)STUD BOLT (8X35)
-
1501421-0840A STUD BOLT (8X40)STUD BOLT (8X40)
-
1609206-11004 PINPIN
-
1709159-08124 NUTNUT
-
1811231-27C30 COVER, CYLINDER NO.1COVER, CYLINDER NO.1
-
1911233-27C34 GASKET, CYLINDER COVER NO.1GASKET, CYLINDER COVER NO.1
-
2009103-06234 BOLTBOLT
-
2111248-36E00 COVER, CYLINDER NO.2COVER, CYLINDER NO.2
-
2211238-36E01 GASKET, CYLINDER COVER NO.2GASKET, CYLINDER COVER NO.2
-
2309103-05023 BOLTBOLT
-
2409359-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2509352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2609103-10149 BOLT, ENG MTGBOLT, ENG MTG
-
2709159-10078 NUTNUT
-
2809407-18402 CLAMPCLAMP
