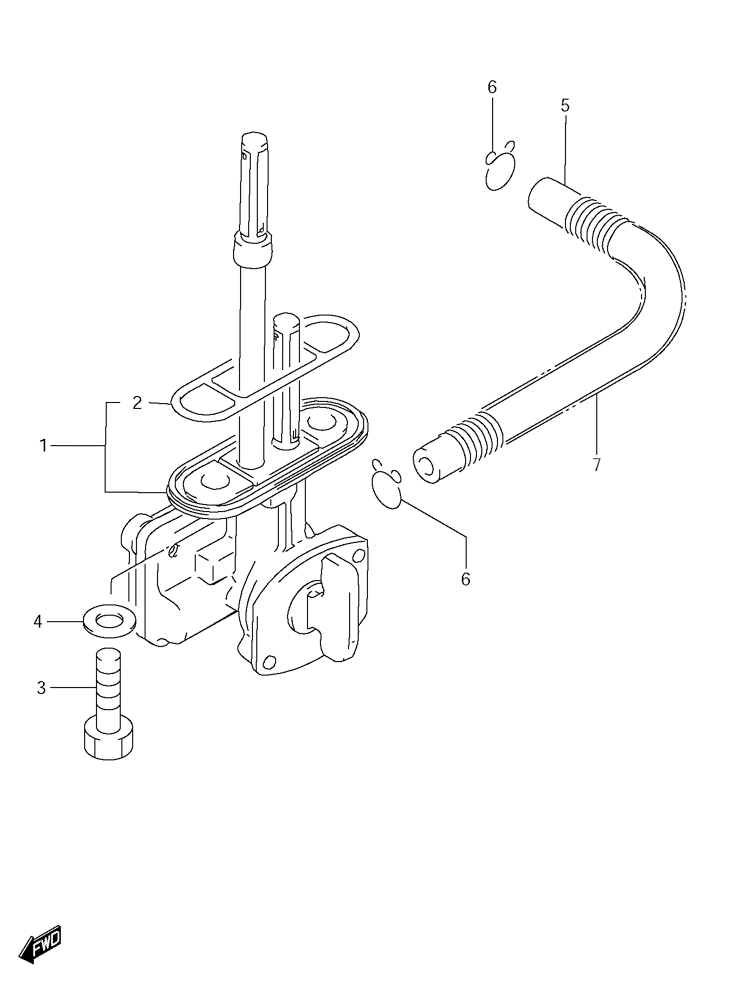

FUEL COCK ASSY. для Suzuki DR200SEK8 - 2008 года выпуска
-
№АртикулНазвание
-
144300-44AB0 COCK ASSEMBLY, FUELCOCK ASSEMBLY, FUEL
-
244348-87420 ...O RING...O RING
-
309128-06006 SCREW (6X20)SCREW (6X20)
-
409168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
509355-50109-160 HOSE, FUELHOSE, FUEL
-
544421-44A00 HOSE, FUEL (FOR CALF. ONLY)HOSE, FUEL (FOR CALF. ONLY)
-
609401-09403 CLIPCLIP
-
709440-10009 SPRING (FOR CALF. ONLY)SPRING (FOR CALF. ONLY)
