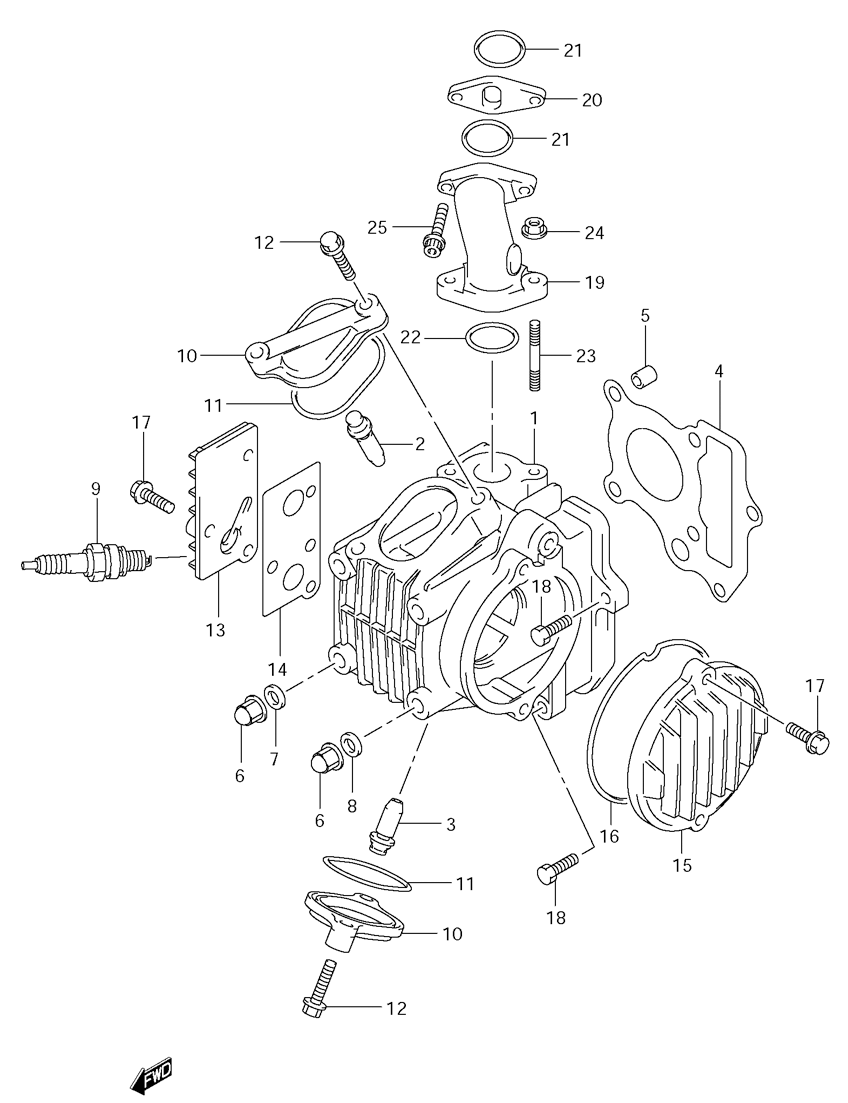

CYLINDER HEAD для Suzuki DR-Z70K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    11110-02A00 HEAD, CYLINDER
    HEAD, CYLINDER
  • 2
    11115-02A70 ...GUIDE, INTAKE VALVE (OVER SIZE: 0.3)
    ...GUIDE, INTAKE VALVE (OVER SIZE: 0.3)
  • 3
    11115-09470 ...GUIDE, EXHAUST VALVE (OVER SIZE: 0.3)
    ...GUIDE, EXHAUST VALVE (OVER SIZE: 0.3)
  • 4
    11141-02A00 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 5
    09206-08001 PIN (8X11)
    PIN (8X11)
  • 6
    09159-06100 NUT
    NUT
  • 7
    09168-06017 GASKET
    GASKET
  • 8
    09160-06127 WASHER (6.5X14X2.3)
    WASHER (6.5X14X2.3)
  • 9
    09482-00408 SPARK PLUG (NGK,CR7HSA)
    SPARK PLUG (NGK,CR7HSA)
  • 9
    09482-00314 SPARK PLUG (ND,U22FSR-U)
    SPARK PLUG (ND,U22FSR-U)
  • 10
    11175-09400 CAP, INSPECTION
    CAP, INSPECTION
  • 11
    09280-50007 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 48.6)
    O RING (DIAMETER: 2.4,INSIDE DIAMETER: 48.6)
  • 12
    01550-0625B BOLT
    BOLT
  • 13
    11134-09400 COVER, CYLINDER HEAD, RIGHT HAND
    COVER, CYLINDER HEAD, RIGHT HAND
  • 14
    11135-09420 GASKET, HEAD COVER, RIGHT HAND
    GASKET, HEAD COVER, RIGHT HAND
  • 15
    11121-09405 COVER, CYLINDER HEAD, LEFT HAND
    COVER, CYLINDER HEAD, LEFT HAND
  • 16
    09280-70008 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 73.6)
    O RING (DIAMETER: 2.4,INSIDE DIAMETER: 73.6)
  • 17
    01550-0620B BOLT
    BOLT
  • 18
    01500-0620B BOLT
    BOLT
  • 19
    13111-14H00 PIPE, INTAKE
    PIPE, INTAKE
  • 20
    13129-36G00 INSULATOR, CARBURETOR
    INSULATOR, CARBURETOR
  • 21
    09280-21010 O RING, INSULATOR (DIAMETER: 1.9,INSIDE DIAMETER: 21.8)
    O RING, INSULATOR (DIAMETER: 1.9,INSIDE DIAMETER: 21.8)
  • 22
    09280-24010 O RING, INTAKE PIPE (DIAMETER: 2.4,INSIDE DIAMETER: 23.7)
    O RING, INTAKE PIPE (DIAMETER: 2.4,INSIDE DIAMETER: 23.7)
  • 23
    01421-0620A BOLT, STUD
    BOLT, STUD
  • 24
    08316-1006A NUT
    NUT
  • 25
    07130-0625A BOLT
    BOLT
