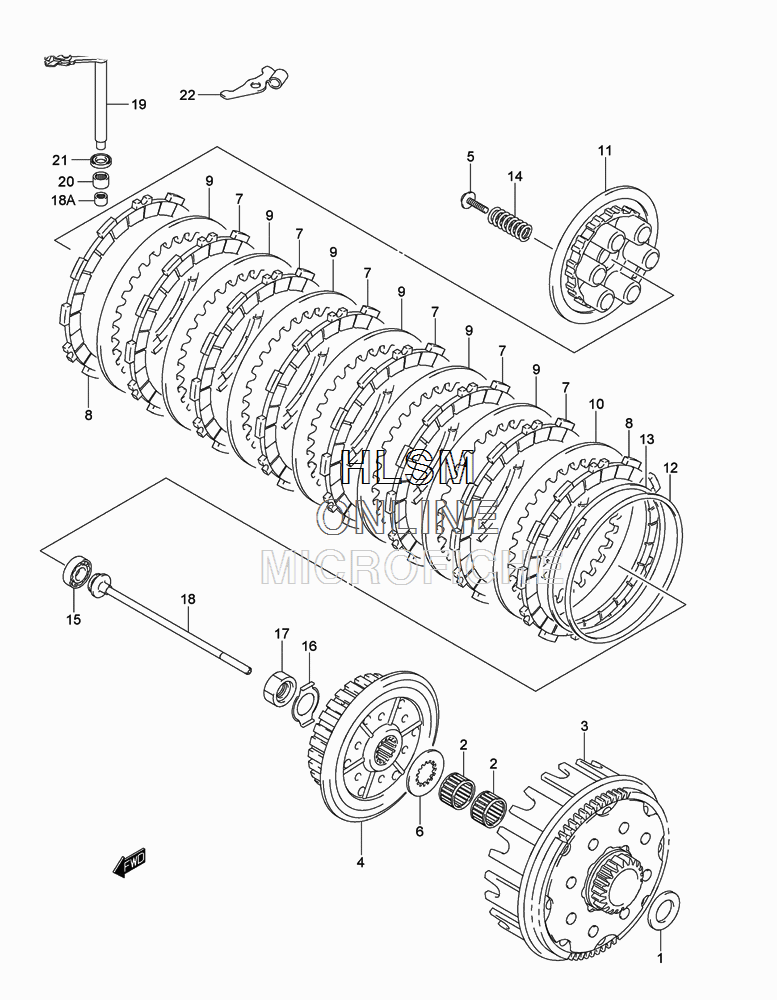

CLUTCH для Suzuki RM-Z450K7 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    09181-25181 WASHER, PRI DRIVEN GEAR 25X34X1.3
    WASHER, PRI DRIVEN GEAR 25X34X1.3
  • 2
    09263-25069 BEARING, PRIMARY DRIVEN 25X29X13
    BEARING, PRIMARY DRIVEN 25X29X13
  • 3
    21200-35G00 GEAR ASSY, PRIMARY DRIVE
    GEAR ASSY, PRIMARY DRIVE
  • 4
    21411-35G11 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21412-35G00 BOLT, CLUTCH SPRING 6X25
    BOLT, CLUTCH SPRING 6X25
  • 6
    21415-35G00 WASHER, CLUTCH SLEEVE 19.5X45X3
    WASHER, CLUTCH SLEEVE 19.5X45X3
  • 7
    21441-35G00 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 8
    21441-37F30 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 9
    21451-35G00 PLATE, CLUTCH DRIVEN
    PLATE, CLUTCH DRIVEN
  • 10
    21452-35G00 PLATE, CLUTCH DRIVEN
    PLATE, CLUTCH DRIVEN
  • 11
    21462-35G10 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 12
    21471-35G00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 13
    21472-35G00 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 14
    09440-18036 SPRING, CLUTCH
    SPRING, CLUTCH
  • 15
    08110-68040 BEARING, CLUTCH RELEASE
    BEARING, CLUTCH RELEASE
  • 16
    21416-35G10 WASHER, CLUTCH SLEEVE
    WASHER, CLUTCH SLEEVE
  • 17
    09140-18017 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 18
    23110-35G00 ROD, CLUTCH PUSH
    ROD, CLUTCH PUSH
  • 18A
    23129-35G00 BEARING, CL (7X11X9)
    BEARING, CL (7X11X9)
  • 19
    23200-35G00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 20
    09263-10014 BEARING, CL RELEASE CAMSHAFT
    BEARING, CL RELEASE CAMSHAFT
  • 21
    09285-10004 SEAL, CL RELEASE CAMSHAFT OIL 10X17X5
    SEAL, CL RELEASE CAMSHAFT OIL 10X17X5
  • 22
    23911-35G01 BRACKET, CLUTCH CABLE
    BRACKET, CLUTCH CABLE
