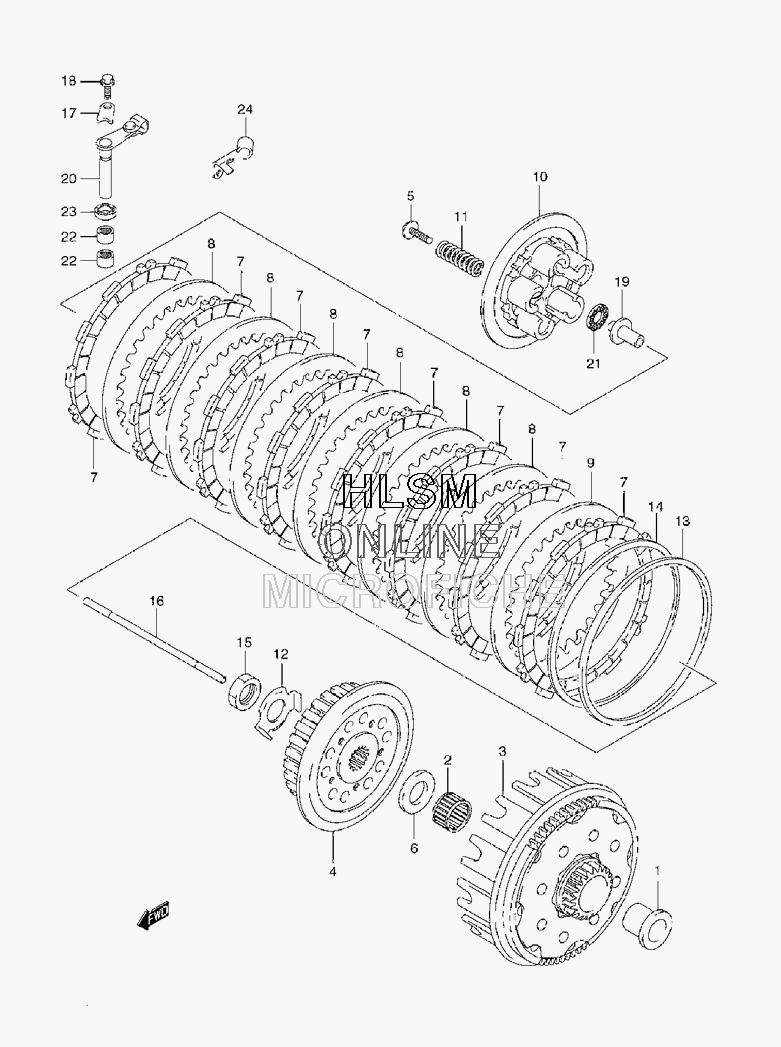

CLUTCH для Suzuki RM-Z250K7 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    21251-10H00 SPACER, PRI DRIVEN GEAR
    SPACER, PRI DRIVEN GEAR
  • 2
    09263-27004 BEARING, PRIMARY DRIVEN
    BEARING, PRIMARY DRIVEN
  • 3
    21200-10H00 GEAR ASSY, PRIMARY DRIVEN
    GEAR ASSY, PRIMARY DRIVEN
  • 4
    21411-10H00 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21412-45G00 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 6
    09160-22083 WASHER, CLUTCH SLEEVE HUB
    WASHER, CLUTCH SLEEVE HUB
  • 7
    21441-10H00 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 8
    21451-10H00 PLATE, CLUTCH DRIVEN
    PLATE, CLUTCH DRIVEN
  • 9
    21452-10H00 PLATE, CLUTCH DRIVEN
    PLATE, CLUTCH DRIVEN
  • 10
    21462-10H00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 11
    09440-18040 SPRING, CLUTCH
    SPRING, CLUTCH
  • 12
    21416-10H00 WASHER, CLUTCH SLEEVE
    WASHER, CLUTCH SLEEVE
  • 13
    21471-40F00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 14
    21472-10H00 WASHER, CLUTCH PLATE
    WASHER, CLUTCH PLATE
  • 15
    09140-18020 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 16
    23110-37F00 ROD, CLUTCH PUSH
    ROD, CLUTCH PUSH
  • 17
    23117-10H00 RETAINER, CL RELEASE
    RETAINER, CL RELEASE
  • 18
    09103-06233 BOLT, RTNR
    BOLT, RTNR
  • 19
    23121-37F00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 20
    23200-10H00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 21
    09263-10002 BEARING, CL RELEASE THRUST
    BEARING, CL RELEASE THRUST
  • 22
    09263-10014 BEARING, CL RELEASE CAMSHAFT
    BEARING, CL RELEASE CAMSHAFT
  • 23
    09285-10004 SEAL, CL RELEASE CAMSHAFT OIL
    SEAL, CL RELEASE CAMSHAFT OIL
  • 24
    23911-10H00 BRACKET, CLUTCH CABLE
    BRACKET, CLUTCH CABLE
