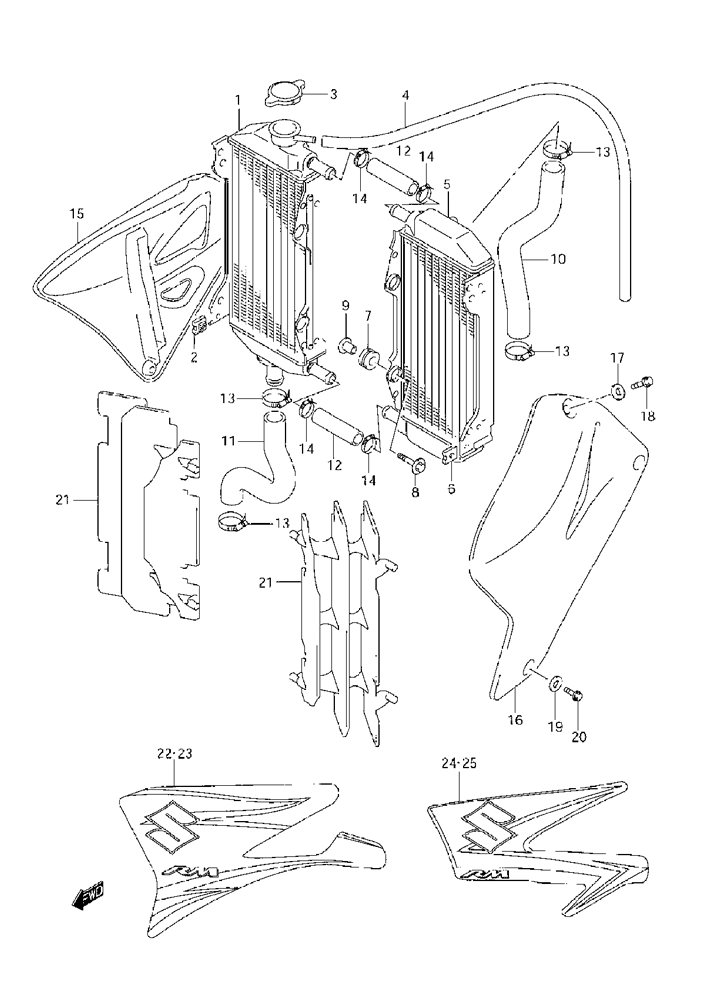

RADIATOR для Suzuki RM-250K7 - 2007 года выпуска
-
№АртикулНазвание
-
117710-37F00 RADIATOR, RIGHT HAND (INCL. 2)RADIATOR, RIGHT HAND (INCL. 2)
-
209148-06015 NUTNUT
-
317730-12C20 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
409351-50803-00A HOSE, OVER FLOWHOSE, OVER FLOW
-
517720-37F00 RADIATOR, LEFT HAND (INCL. 6)RADIATOR, LEFT HAND (INCL. 6)
-
609148-06015 NUTNUT
-
717787-19A00 CUSHION, SUPPORTCUSHION, SUPPORT
-
809116-06186 BOLTBOLT
-
909180-06243 SPACERSPACER
-
1017851-37F00 HOSE, INLETHOSE, INLET
-
1117852-37F00 HOSE, OUTLETHOSE, OUTLET
-
1217853-36F00 HOSE, JOINTHOSE, JOINT
-
1309402-28513 CLAMPCLAMP
-
1409402-22511 CLAMPCLAMP
-
1517761-37F10-YU1 COVER, RADIATOR RIGHT HAND (YELLOW) (YU1)COVER, RADIATOR RIGHT HAND (YELLOW) (YU1)
-
1617762-37F10-YU1 COVER, RADIATOR LEFT HAND (YELLOW) (YU1)COVER, RADIATOR LEFT HAND (YELLOW) (YU1)
-
1769232-37F00 WASHER, RADIATOR COVERWASHER, RADIATOR COVER
-
1809103-06233 BOLTBOLT
-
1969232-37F00 WASHER, RADIATOR COVERWASHER, RADIATOR COVER
-
2009103-06233 BOLTBOLT
-
2117831-37F00 LOUVER, RADIATORLOUVER, RADIATOR
-
2468660-37F70-EMA TAPE, RADIATOR COVER RIGHT HAND (EMA)TAPE, RADIATOR COVER RIGHT HAND (EMA)
-
2568670-37F70-EMA TAPE, RADIATOR COVER LEFT HAND (EMA)TAPE, RADIATOR COVER LEFT HAND (EMA)
