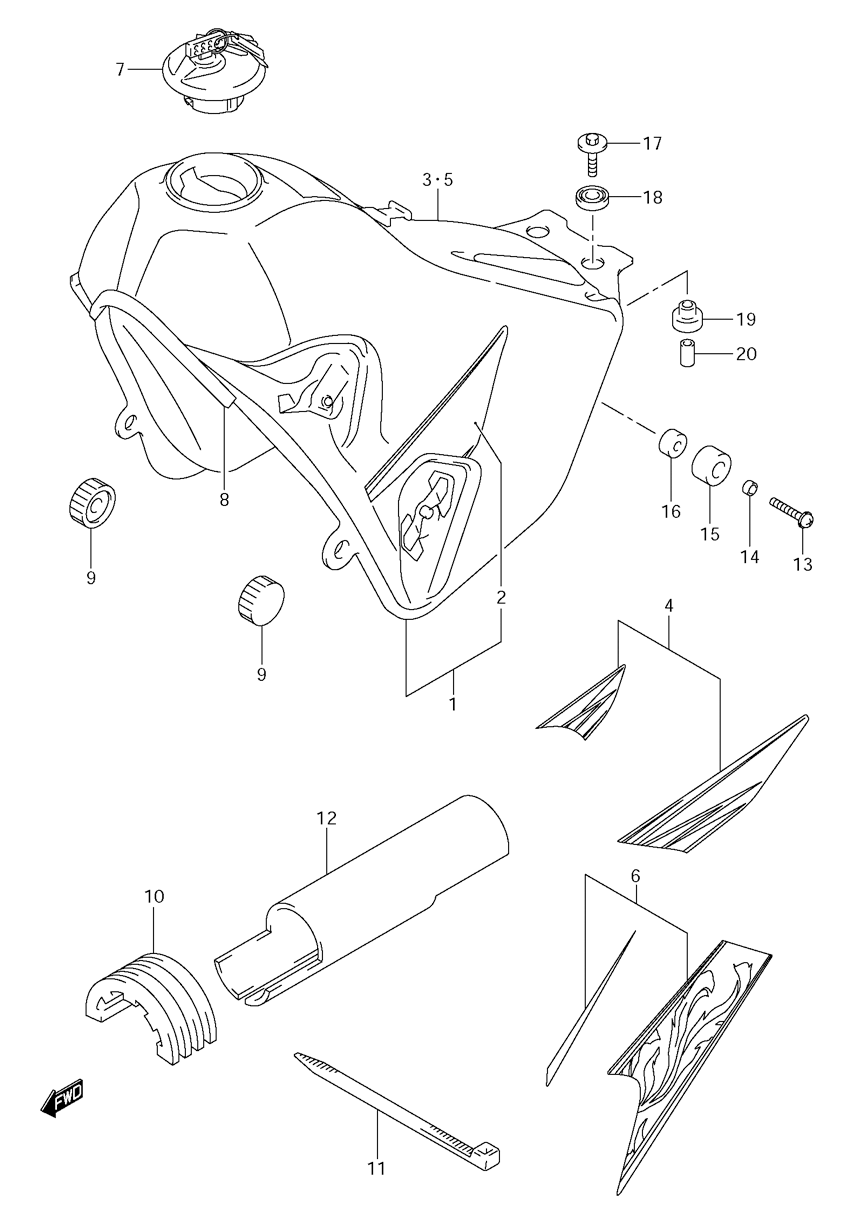

FUEL TANK для Suzuki DR-Z400SMK7 - 2007 года выпуска
-
№АртикулНазвание
-
149100-29FC0-YU1 TANK ASSEMBLY, FUEL (YELLOW) (YU1 FOR YU1)TANK ASSEMBLY, FUEL (YELLOW) (YU1 FOR YU1)
-
149100-29FD0-YU1 TANK ASSEMBLY, FUEL (YELLOW) (FOR CALF. ONLY) (YU1 FOR YU1)TANK ASSEMBLY, FUEL (YELLOW) (FOR CALF. ONLY) (YU1 FOR YU1)
-
268110-29FH0-DUN ...TAPE SET (DUN FOR YU1)...TAPE SET (DUN FOR YU1)
-
349100-29FF0-019 TANK ASSEMBLY, FUEL (BLACK) (019 FOR 019)TANK ASSEMBLY, FUEL (BLACK) (019 FOR 019)
-
349100-29FF0-YC2 TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J)TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J)
-
349100-29FG0-019 TANK ASSEMBLY, FUEL (BLACK) (FOR CALF. ONLY) (019 FOR 019)TANK ASSEMBLY, FUEL (BLACK) (FOR CALF. ONLY) (019 FOR 019)
-
349100-29FG0-YC2 TANK ASSEMBLY, FUEL (BLUE) (FOR CALF. ONLY) (YC2 FOR N9J)TANK ASSEMBLY, FUEL (BLUE) (FOR CALF. ONLY) (YC2 FOR N9J)
-
468110-29FJ0-DVS ...TAPE SET (DVS FOR 019)...TAPE SET (DVS FOR 019)
-
468110-29FJ0-DVT ...TAPE SET (DVT FOR YC2)...TAPE SET (DVT FOR YC2)
-
744200-29820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
744200-05820 CAP SET, FUEL TANK (FOR CALF. ONLY)CAP SET, FUEL TANK (FOR CALF. ONLY)
-
868241-04X50-300 MOLDING, FRONTMOLDING, FRONT
-
909329-10016 CUSHION, FRONTCUSHION, FRONT
-
1044541-29F00 CUSHION, UPPERCUSHION, UPPER
-
1109407-30402 CLAMPCLAMP
-
1244194-29F00 SHIELD, FUEL TANKSHIELD, FUEL TANK
-
1302112-1630B SCREWSCREW
-
1409180-06215 SPACERSPACER
-
1545149-14D00 CUSHION, SIDECUSHION, SIDE
-
1609180-06306 SPACERSPACER
-
1709116-06172 BOLT, REARBOLT, REAR
-
1809320-14022 CUSHION, UPPERCUSHION, UPPER
-
1909320-10020 CUSHION, LOWERCUSHION, LOWER
-
2009180-06271 SPACERSPACER
