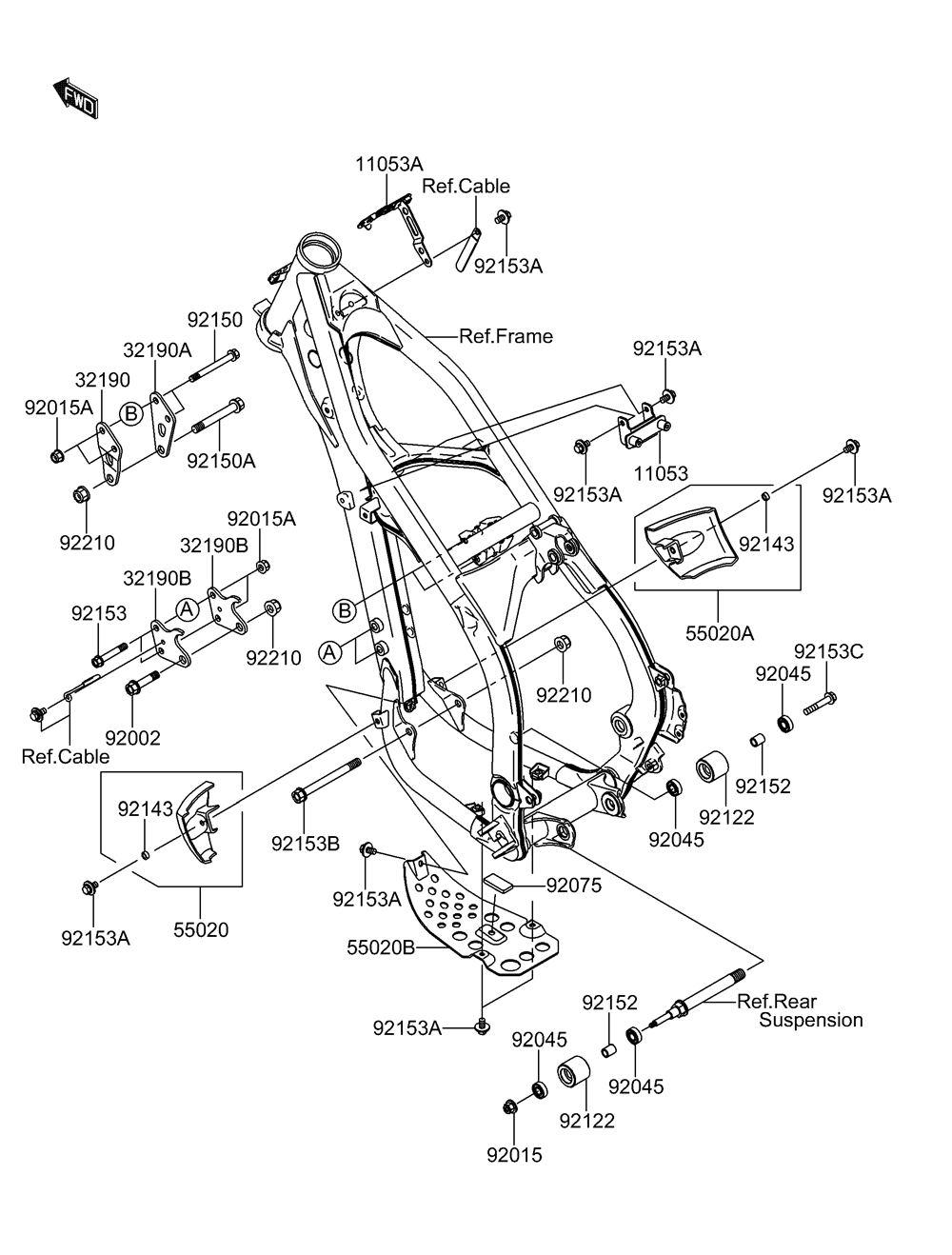

FRAME FITTING для Suzuki RM-Z250K6 - 2006 года выпуска

  • №
    Артикул
    Название
  • 11053
    K1105-31300 BRACKET, IGNITION COIL
    BRACKET, IGNITION COIL
  • 11053A
    K1105-31637 BRACKET, IGNITER
    BRACKET, IGNITER
  • 32190
    K3219-00014 BRACKET-ENGINE, UPPER, LEFT HAND
    BRACKET-ENGINE, UPPER, LEFT HAND
  • 32190A
    K3219-00015 BRACKET-ENGINE, UPPER, RIGHT HAND
    BRACKET-ENGINE, UPPER, RIGHT HAND
  • 32190B
    K3219-00070 BRACKET-ENGINE, FRONT
    BRACKET-ENGINE, FRONT
  • 55020
    K5502-00023 GUARD, ENGINE, FRONT, LEFT HAND
    GUARD, ENGINE, FRONT, LEFT HAND
  • 55020A
    K5502-00024 GUARD, ENGINE, FRONT, RIGHT HAND
    GUARD, ENGINE, FRONT, RIGHT HAND
  • 55020B
    K5502-00055 GUARD, ENGINE
    GUARD, ENGINE
  • 92002
    K9200-21576 BOLT, ARM,10MM
    BOLT, ARM,10MM
  • 92015
    K9201-51339 NUT, LOCK,FLANGED, 6MM
    NUT, LOCK,FLANGED, 6MM
  • 92015A
    K9201-51432 NUT, 8MM
    NUT, 8MM
  • 92045
    K9204-51009 BEARING-BALL, 608LLU/2A
    BEARING-BALL, 608LLU/2A
  • 92075
    K9207-51054 DAMPER
    DAMPER
  • 92122
    K9212-20007 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92143
    K9214-31307 COLLAR
    COLLAR
  • 92150
    K9215-01214 BOLT, FLANGED, 8X50
    BOLT, FLANGED, 8X50
  • 92150A
    K9215-01571 BOLT, FLANGED, 10X42
    BOLT, FLANGED, 10X42
  • 92152
    K9215-20211 COLLAR, 8.5X12.5X15.5
    COLLAR, 8.5X12.5X15.5
  • 92153
    K9215-30364 BOLT, FLANGED, 8X78
    BOLT, FLANGED, 8X78
  • 92153A
    K9215-30503 BOLT, 6X12
    BOLT, 6X12
  • 92153B
    K9215-30615 BOLT, FLANGED, 10X110
    BOLT, FLANGED, 10X110
  • 92153C
    K9215-30751 BOLT, FLANGED, 8X45
    BOLT, FLANGED, 8X45
  • 92210
    K9221-01080 NUT, LOCK,FLANGED, 10MM
    NUT, LOCK,FLANGED, 10MM
