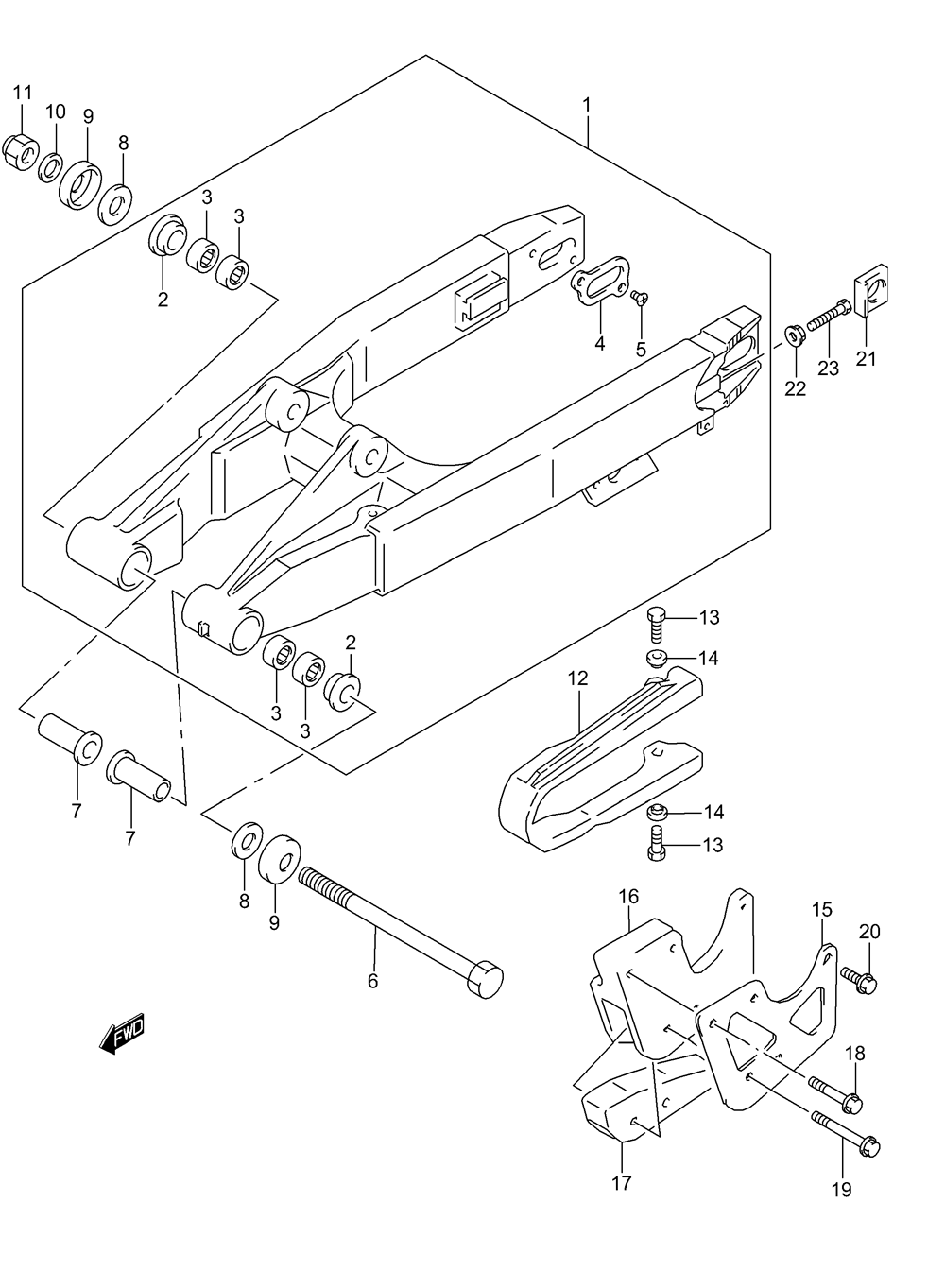

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM-85K5 - 2006 года выпуска`
-
№АртикулНазвание
-
161000-03B90 SWINGING ARM ASSY, REAR (RM85)SWINGING ARM ASSY, REAR (RM85)
-
161000-03BA0 SWINGING ARM ASSY, REAR (RM85L)SWINGING ARM ASSY, REAR (RM85L)
-
261261-02B00 BUSHINGBUSHING
-
309263-17039 BEARING (17X24X20)BEARING (17X24X20)
-
461128-03B70 PLATE, SWINGINGARM REARPLATE, SWINGINGARM REAR
-
502122-04103 SCREW, PLATESCREW, PLATE
-
661211-02B40 SHAFT, PIVOTSHAFT, PIVOT
-
761251-02B40 SPACER, PIVOTSPACER, PIVOT
-
808211-12282 THRUST WASHERTHRUST WASHER
-
961262-03B00 COVER, PIVOTCOVER, PIVOT
-
1008322-01123 WASHERWASHER
-
1108319-21128 NUTNUT
-
1261273-02B20 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1309103-06234 BOLTBOLT
-
1409169-06057 WASHERWASHER
-
1561342-02B40 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1661343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1761348-02B20 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1809103-06251 BOLT, UPPER (6X30)BOLT, UPPER (6X30)
-
1909103-06241 BOLT, LOWER (6X40)BOLT, LOWER (6X40)
-
2009103-06234 BOLT, REAR (6X16)BOLT, REAR (6X16)
-
2161445-03B00 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2209159-08034 NUT, ADJUSTERNUT, ADJUSTER
-
2309100-08301 BOLT, ADJUSTERBOLT, ADJUSTER
