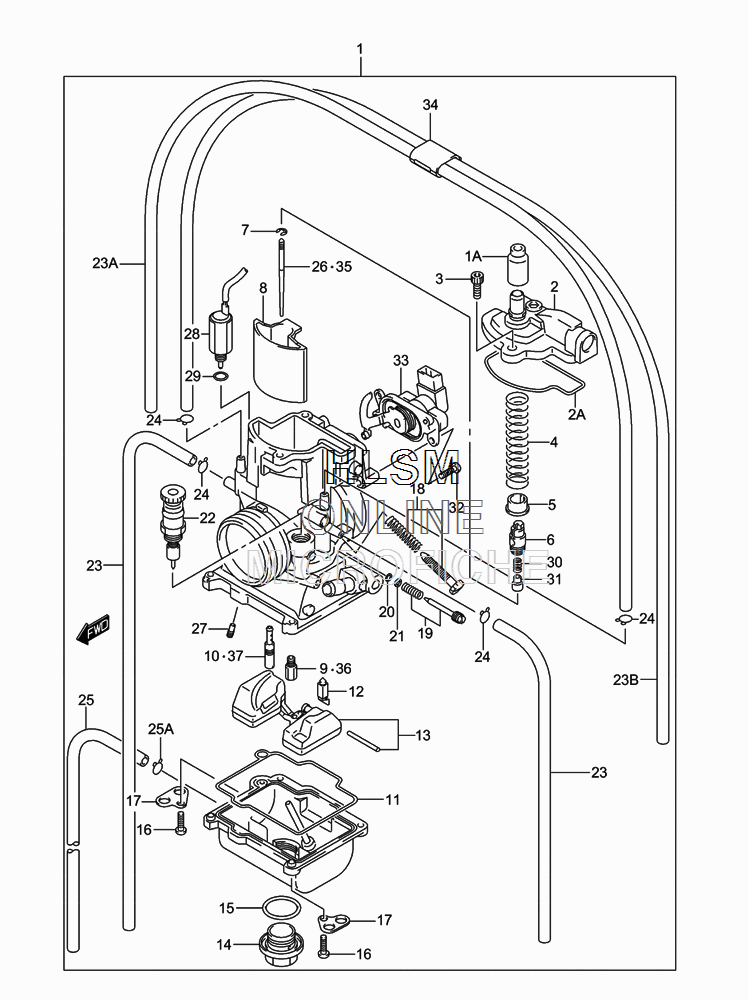

CARBURETOR ASSY. для Suzuki RM-250ZK6 - 2006 года выпуска`
-
№АртикулНазвание
-
113200-37FA0 CARBURETOR ASSY (INCL. 1A-34)CARBURETOR ASSY (INCL. 1A-34)
-
113200-37FB0 CARBURETOR ASSY (INCL. 1A-34) (CANADA ONLY)CARBURETOR ASSY (INCL. 1A-34) (CANADA ONLY)
-
1A13681-43D30 CAP, CARBURETORCAP, CARBURETOR
-
213261-37F80 TOPTOP
-
2A13262-37F80 O RINGO RING
-
313262-37F00 SCREWSCREW
-
413573-37F00 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
513424-43D30 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
613581-37F80 HOLDER, CABLEHOLDER, CABLE
-
713394-28E00 CLIP, NEEDLECLIP, NEEDLE
-
813551-37F80 VALVE, THROTTLEVALVE, THROTTLE
-
909491-33010 JET, MAIN (168)JET, MAIN (168)
-
909491-34011 JET, MAIN (172) (CANADA ONLY)JET, MAIN (172) (CANADA ONLY)
-
1009492-48013 JET, PILOT (48)JET, PILOT (48)
-
1009492-50023 JET, PILOT (CANADA ONLY)JET, PILOT (CANADA ONLY)
-
1113696-44E00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1213370-43D30 VALVE SET, FLOATVALVE SET, FLOAT
-
1313240-36E20 FLOAT SETFLOAT SET
-
1413247-28E00 BOLT, DRAINBOLT, DRAIN
-
1513246-28E00 O RINGO RING
-
1613602-26E10 SCREWSCREW
-
1713693-36E00 PLATEPLATE
-
1813270-43D30 SCREW SET, STOPSCREW SET, STOP
-
1913280-43D30 SCREW SET, AIRSCREW SET, AIR
-
2013295-26E00 O RINGO RING
-
2113291-26E00 WASHERWASHER
-
2213410-43D30 STARTER VALVESTARTER VALVE
-
2313686-36E00 HOSE (4X7X620) L:620!400 LH L:620!360HOSE (4X7X620) L:620!400 LH L:620!360
-
23A13686-36E00 HOSE (4X7X620) L:620!600HOSE (4X7X620) L:620!600
-
23B13686-36E00 HOSE (4X7X620) L:600!550HOSE (4X7X620) L:600!550
-
2409401-06101 CLIPCLIP
-
2509351-35653-600 HOSE (3.5X6.5X600) L:600!300HOSE (3.5X6.5X600) L:600!300
-
25A09401-05402 CLIPCLIP
-
2613383-37FE0 NEEDLE, JETNEEDLE, JET
-
2613383-37FK0 NEEDLE, JET (CANADA ONLY)NEEDLE, JET (CANADA ONLY)
-
2713345-37F00 JET, POWER (45)JET, POWER (45)
-
2709492-55019 JET, POWER (55) (CANADA ONLY)JET, POWER (55) (CANADA ONLY)
-
2813160-37E01 SOLENOID ASSYSOLENOID ASSY
-
2913453-37E00 O RINGO RING
-
3013582-37F80 SPRINGSPRING
-
3113583-37F80 COLLARCOLLAR
-
3213602-37F00 SCREWSCREW
-
3313580-37F80 SENSOR ASSYSENSOR ASSY
-
3413451-37F00 CLIPCLIP
-
3513383-37FA0 NEEDLE, JET (NECF) (OPT)NEEDLE, JET (NECF) (OPT)
-
3513383-37FB0 NEEDLE, JET (NECG) (OPT)NEEDLE, JET (NECG) (OPT)
-
3513383-37FC0 NEEDLE, JET (NECH) (OPT)NEEDLE, JET (NECH) (OPT)
-
3513383-37FD0 NEEDLE, JET (NECW) (OPT)NEEDLE, JET (NECW) (OPT)
-
3513383-37FE0 NEEDLE, JET (NECJ) (OPT)NEEDLE, JET (NECJ) (OPT)
-
3513383-37FF0 NEEDLE, JET (NECK) (OPT)NEEDLE, JET (NECK) (OPT)
-
3513383-37FG0 NEEDLE, JET (NECL) (OPT)NEEDLE, JET (NECL) (OPT)
-
3513383-37FH0 NEEDLE, JET (NEDF) (OPT)NEEDLE, JET (NEDF) (OPT)
-
3513383-37FJ0 NEEDLE, JET (NEDG) (OPT)NEEDLE, JET (NEDG) (OPT)
-
3513383-37FK0 NEEDLE, JET (NEDH) (OPT)NEEDLE, JET (NEDH) (OPT)
-
3513383-37FL0 NEEDLE, JET (NEDW) (OPT)NEEDLE, JET (NEDW) (OPT)
-
3513383-37FM0 NEEDLE, JET (NEDJ) (OPT)NEEDLE, JET (NEDJ) (OPT)
-
3513383-37FN0 NEEDLE, JET (NEDK) (OPT)NEEDLE, JET (NEDK) (OPT)
-
3513383-37FP0 NEEDLE, JET (NEDL) (OPT)NEEDLE, JET (NEDL) (OPT)
-
3609491-30018 JET, MAIN (150) (OPT)JET, MAIN (150) (OPT)
-
3609491-30019 JET, MAIN (152) (OPT)JET, MAIN (152) (OPT)
-
3609491-31012 JET, MAIN (155) (OPT)JET, MAIN (155) (OPT)
-
3609491-31013 JET, MAIN (158) (OPT)JET, MAIN (158) (OPT)
-
3609491-32010 JET, MAIN (160) (OPT)JET, MAIN (160) (OPT)
-
3609491-32011 JET, MAIN (162) (OPT)JET, MAIN (162) (OPT)
-
3609491-33009 JET, MAIN (165) (OPT)JET, MAIN (165) (OPT)
-
3609491-33010 JET, MAIN (168) (OPT)JET, MAIN (168) (OPT)
-
3609491-34010 JET, MAIN (170) (OPT)JET, MAIN (170) (OPT)
-
3609491-34011 JET, MAIN (172) (OPT)JET, MAIN (172) (OPT)
-
3609491-35009 JET, MAIN (175) (OPT)JET, MAIN (175) (OPT)
-
3609491-35010 JET, MAIN (178) (OPT)JET, MAIN (178) (OPT)
-
3609491-36008 JET, MAIN (180) (OPT)JET, MAIN (180) (OPT)
-
3609491-37008 JET, MAIN (185) (OPT)JET, MAIN (185) (OPT)
-
3609491-38011 JET, MAIN (190) (OPT)JET, MAIN (190) (OPT)
-
3609491-39001 JET, MAIN (195) (OPT)JET, MAIN (195) (OPT)
-
3609491-40013 JET, MAIN (200) (OPT)JET, MAIN (200) (OPT)
-
3609491-41001 JET, MAIN (205) (OPT)JET, MAIN (205) (OPT)
-
3609491-42006 JET, MAIN (210) (OPT)JET, MAIN (210) (OPT)
-
3709492-35019 JET, PILOT (35) (OPT)JET, PILOT (35) (OPT)
-
3709492-40022 JET, PILOT (40) (OPT)JET, PILOT (40) (OPT)
-
3709492-42019 JET, PILOT (42) (OPT)JET, PILOT (42) (OPT)
-
3709492-45032 JET, PILOT (45) (OPT)JET, PILOT (45) (OPT)
-
3709492-48013 JET, PILOT (48) (OPT)JET, PILOT (48) (OPT)
-
3709492-50023 JET, PILOT (50) (OPT)JET, PILOT (50) (OPT)
-
3709492-52011 JET, PILOT (52) (OPT)JET, PILOT (52) (OPT)
-
3709492-55017 JET, PILOT (55) (OPT)JET, PILOT (55) (OPT)
-
3709492-58001 JET, PILOT (58) (OPT)JET, PILOT (58) (OPT)
-
3709492-60016 JET, PILOT (60) (OPT)JET, PILOT (60) (OPT)
