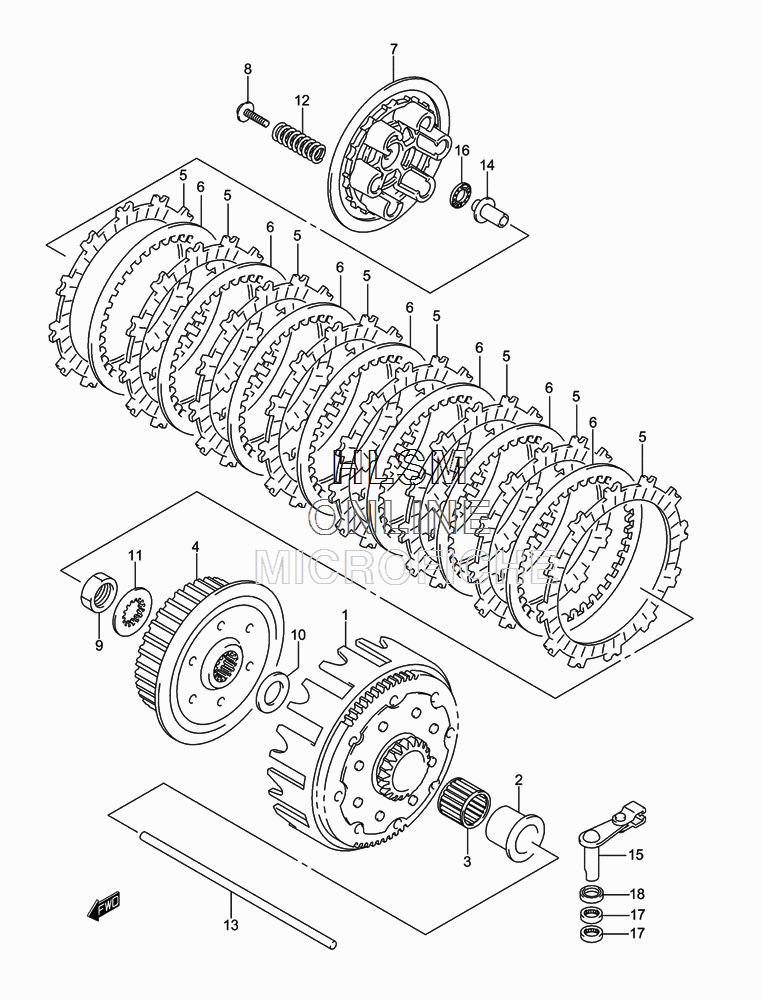

CLUTCH для Suzuki RM-250K6 - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    21200-37F10 GEAR ASSY, PRIMARY DRIVEN NT:63/21
    GEAR ASSY, PRIMARY DRIVEN NT:63/21
  • 2
    21251-37E01 SPACER, PRIMARY DRIVEN GEAR
    SPACER, PRIMARY DRIVEN GEAR
  • 3
    09263-29009 BEARING, PRIMARY DRIVEN 29X34X27
    BEARING, PRIMARY DRIVEN 29X34X27
  • 4
    21410-37F50 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21441-37F50 PLATE, CLUTCH DRIVE
    PLATE, CLUTCH DRIVE
  • 6
    21451-37F00 PLATE, CLUTCH DRIVEN
    PLATE, CLUTCH DRIVEN
  • 7
    21462-37F20 DISK, CLUTCH PRESSURE
    DISK, CLUTCH PRESSURE
  • 8
    09116-05019 BOLT, CLUTCH (5X25)
    BOLT, CLUTCH (5X25)
  • 9
    09140-18013 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 10
    09160-22082 WASHER, CLUTCH HUB THR 22.5X39
    WASHER, CLUTCH HUB THR 22.5X39
  • 11
    09167-22027 WASHER, CLUTCH HUB
    WASHER, CLUTCH HUB
  • 12
    09440-18038 SPRING, CLUTCH
    SPRING, CLUTCH
  • 13
    23110-37F00 ROD, CLUTCH PUSH
    ROD, CLUTCH PUSH
  • 14
    23121-37F00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 15
    23200-37E02 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 16
    09263-10002 BEARING, CLUTCH RELEASE 10.1X22X2.8
    BEARING, CLUTCH RELEASE 10.1X22X2.8
  • 17
    09263-12024 BEARING, NO.2 12X16X10
    BEARING, NO.2 12X16X10
  • 18
    09285-12004 12X19X5
    12X19X5
