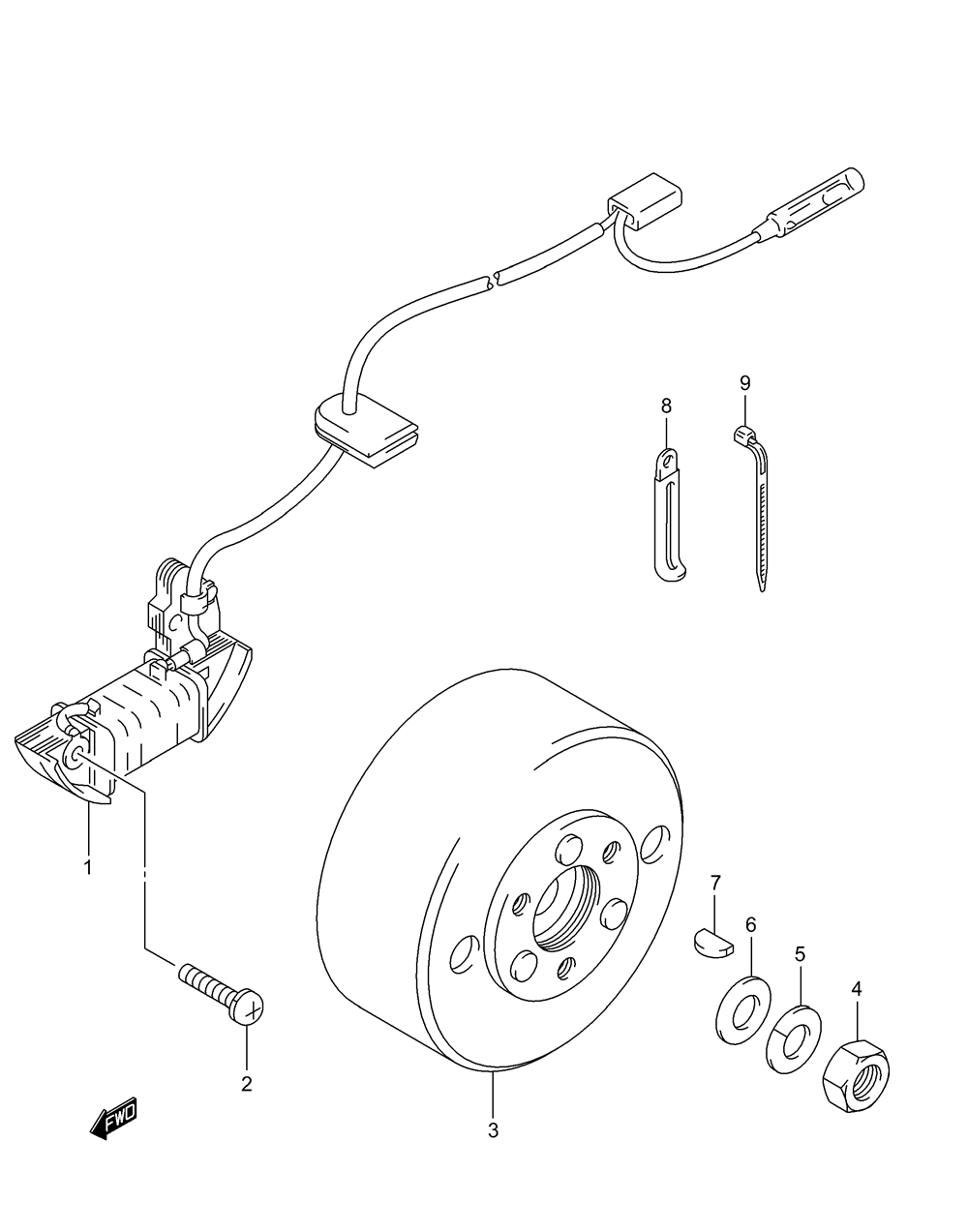

MAGNETO для Suzuki JR50K6 - 2006 года выпуска
-
№АртикулНазвание
-
132101-19G00 COIL ASSY, PRIMARYCOIL ASSY, PRIMARY
-
202112-34253 SCREWSCREW
-
332102-19G00 ROTOR, FLYWHEELROTOR, FLYWHEEL
-
408310-00103 NUTNUT
-
508321-01103 LOCK WASHERLOCK WASHER
-
608322-01103 WASHERWASHER
-
708341-31039 KEYKEY
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
909407-18402 CLAMP (L:165)CLAMP (L:165)
