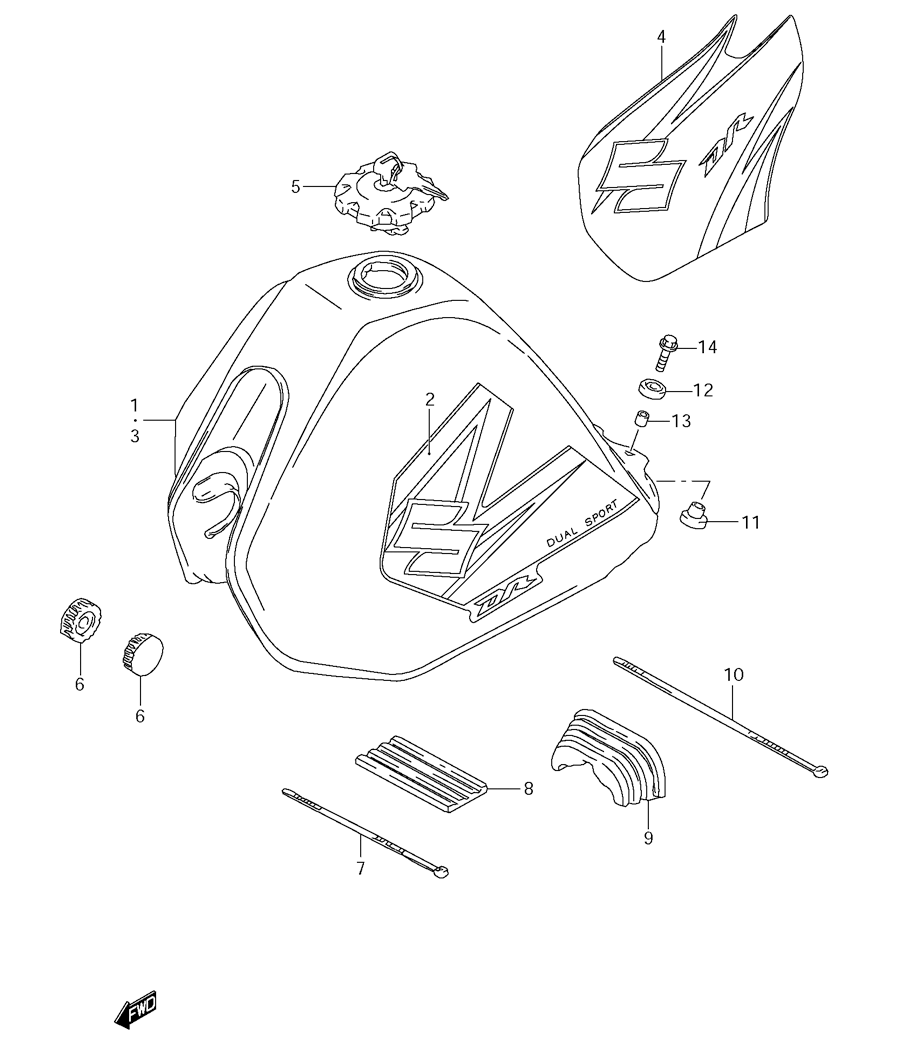

FUEL TANK для Suzuki DR200SEK6 - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-42AC0-YU1 TANK ASSEMBLY, FUEL (YELLOW) (YU1 FOR YU1)
    TANK ASSEMBLY, FUEL (YELLOW) (YU1 FOR YU1)
  • 1
    44100-42AC0-YC2 TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J)
    TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J)
  • 1
    44100-42AD0-YU1 TANK ASSEMBLY, FUEL (YELLOW) (FOR CALF. ONLY) (TU1 FOR TU1)
    TANK ASSEMBLY, FUEL (YELLOW) (FOR CALF. ONLY) (TU1 FOR TU1)
  • 1
    44100-42AD0-YC2 TANK ASSEMBLY, FUEL (BLUE) (FOR CALF. ONLY) (YC2 FOR N9J)
    TANK ASSEMBLY, FUEL (BLUE) (FOR CALF. ONLY) (YC2 FOR N9J)
  • 2
    68110-42A90-CET ...TAPE SET, FUEL TANK (CET FOR YU1)
    ...TAPE SET, FUEL TANK (CET FOR YU1)
  • 2
    68110-42A90-CLK ...TAPE SET, FUEL TANK (CLK FOR YC2)
    ...TAPE SET, FUEL TANK (CLK FOR YC2)
  • 5
    44200-12851 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 5
    44200-05820 CAP SET, FUEL TANK (FOR CALF. ONLY)
    CAP SET, FUEL TANK (FOR CALF. ONLY)
  • 6
    09329-10016 CUSHION
    CUSHION
  • 7
    09407-25402 CLAMP
    CLAMP
  • 8
    44541-14500 CUSHION, FUEL TANK UPPER
    CUSHION, FUEL TANK UPPER
  • 9
    44542-14A00 CUSHION, FUEL TANK REAR
    CUSHION, FUEL TANK REAR
  • 10
    09407-30402 CLAMP
    CLAMP
  • 11
    09320-10020 CUSHION
    CUSHION
  • 12
    09320-14013 CUSHION
    CUSHION
  • 13
    09180-06271 SPACER (6.5X9X18)
    SPACER (6.5X9X18)
  • 14
    01570-0630B BOLT
    BOLT
