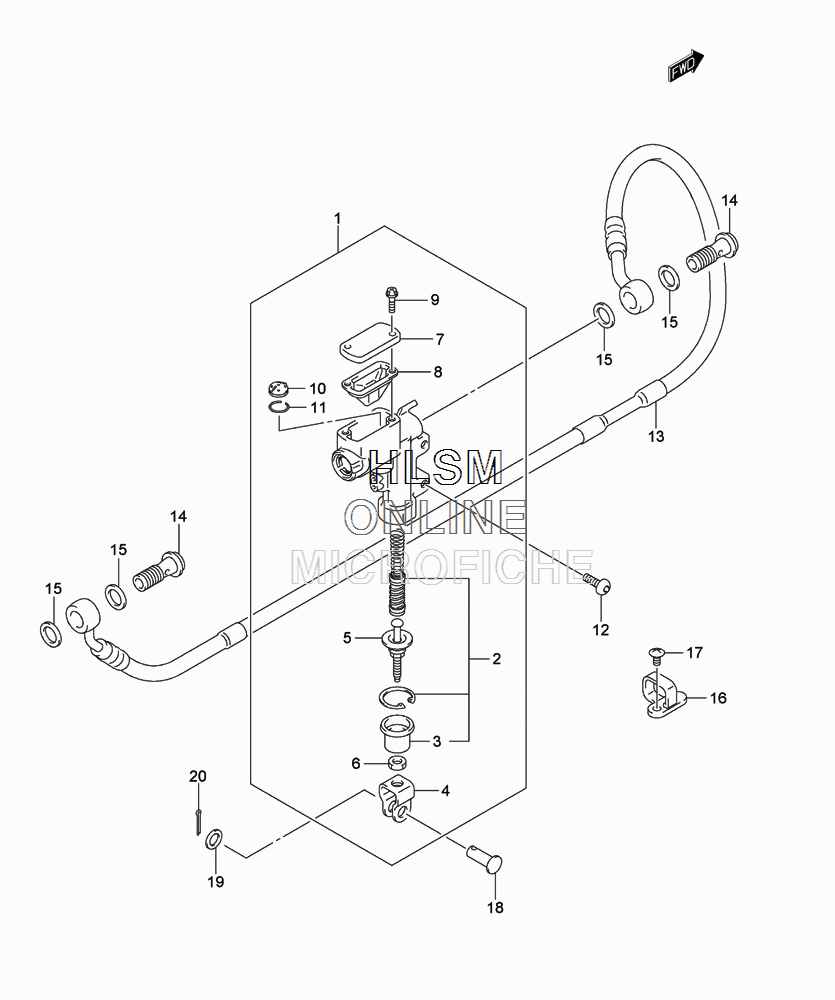

BRAKE - REAR MASTER CYLINDER для Suzuki RM-Z450K5 - 2005 года выпуска`
-
№АртикулНазвание
-
169604-35G00 CYLINDER ASSY, REAR MASTER (INCL. 2-11)CYLINDER ASSY, REAR MASTER (INCL. 2-11)
-
269600-35810 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-35G00 YOKEYOKE
-
569670-35G00 ROD, PUSHROD, PUSH
-
651212-77500 NUTNUT
-
769669-37F20 CAPCAP
-
869667-37F20 DIAPHRAGMDIAPHRAGM
-
969689-37F30 SCREWSCREW
-
1059748-36E00 SEPARATORSEPARATOR
-
1169744-36E00 RINGRING
-
1209139-06139 BOLTBOLT
-
1369480-35G00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1409360-10053 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
1509161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1661196-27C30 GUIDE, HOSEGUIDE, HOSE
-
1702142-05103 SCREWSCREW
-
1809200-08048 PINPIN
-
1909160-08119 WASHERWASHER
-
2004111-20158 PIN, COTTERPIN, COTTER
