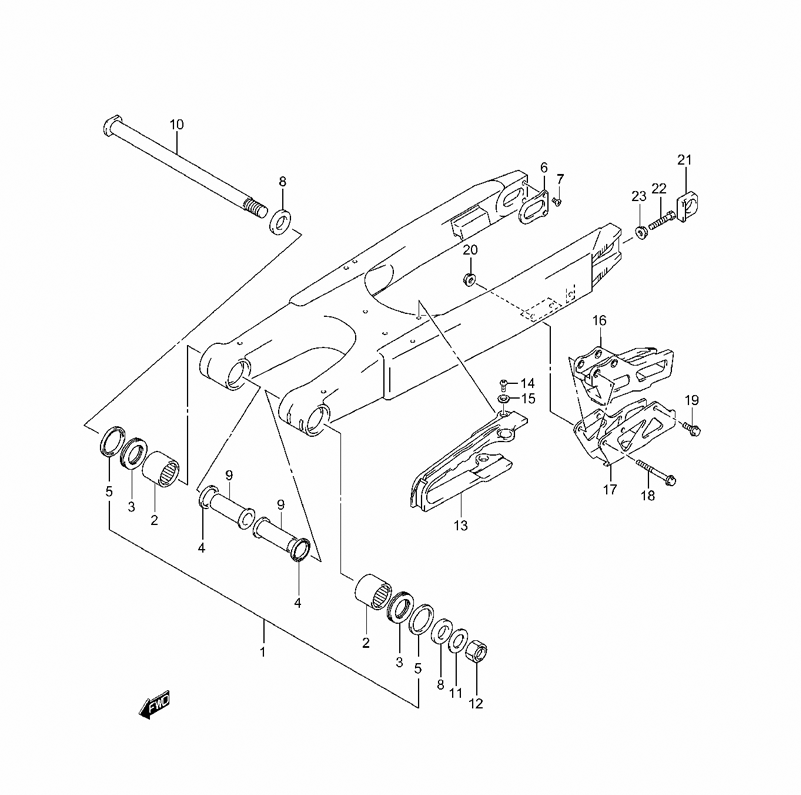

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM-125K5 - 2005 года выпуска`
-
№АртикулНазвание
-
161000-37F40 SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
209263-22017 BEARING, PIVOT (22X29X30)BEARING, PIVOT (22X29X30)
-
309263-22064 BEARING, OUTER (22X35X2)BEARING, OUTER (22X35X2)
-
409285-22001 SEAL, INNER (22X29X4)SEAL, INNER (22X29X4)
-
561262-36E00 SEAL, OUTER (29.2X37X4)SEAL, OUTER (29.2X37X4)
-
661128-37E20 PLATE, PR SWINGINGARM, REARPLATE, PR SWINGINGARM, REAR
-
702122-04103 SCREW (4X10)SCREW (4X10)
-
861251-36E01 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
961252-37F01 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
1061211-28C00 SHAFT, PIVOTSHAFT, PIVOT
-
1108322-01163 WASHERWASHER
-
1209159-16007 NUTNUT
-
1361273-37F10 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1402112-05083 SCREWSCREW
-
1509169-05022 WASHERWASHER
-
1661341-35G00 GUIDE, CHAINGUIDE, CHAIN
-
1761342-37F00 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1809103-06242 BOLT, UPPERBOLT, UPPER
-
1909103-06233 BOLT, REARBOLT, REAR
-
2008316-10063 NUTNUT
-
2161445-37F10 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2209100-08287 BOLT (8X50)BOLT (8X50)
-
2309159-08034 NUTNUT
