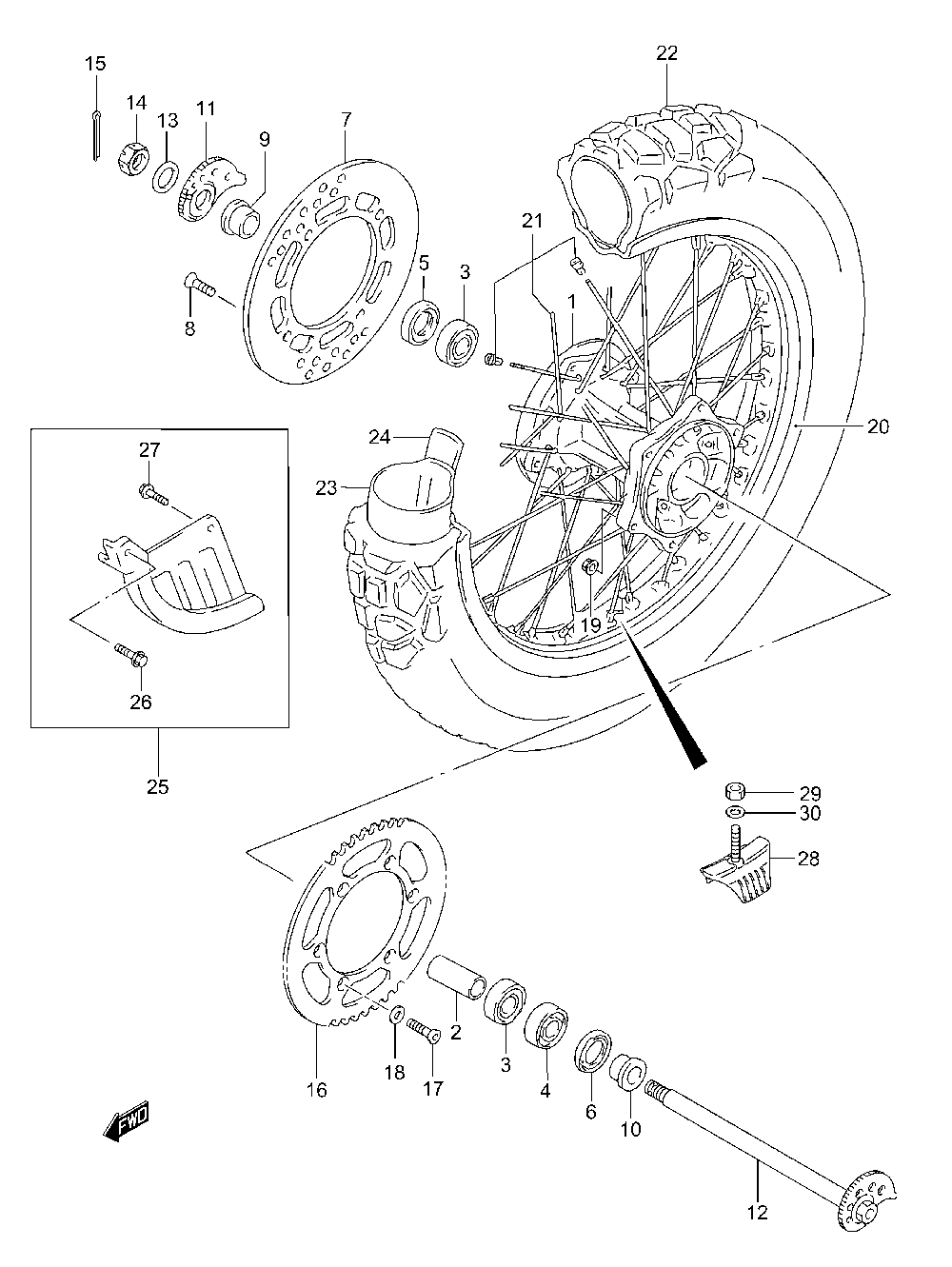

WHEEL - REAR для Suzuki DR-Z250K5 - 2005 года выпуска`
-
№АртикулНазвание
-
164111-14D10 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-13E00 SPACER, BEARINGSPACER, BEARING
-
308123-60047 BEARINGBEARING
-
408123-62047 BEARING, LEFT HANDBEARING, LEFT HAND
-
509282-26001 OIL SEAL, RIGHT HAND (26X42X8)OIL SEAL, RIGHT HAND (26X42X8)
-
609283-26019 OIL SEAL, LEFT HAND (26X47X5)OIL SEAL, LEFT HAND (26X47X5)
-
769211-03D10 DISC, REAR BRAKEDISC, REAR BRAKE
-
809106-08155 BOLT, DISCBOLT, DISC
-
964741-14D00 SPACER, REAR AXLE RIGHT HANDSPACER, REAR AXLE RIGHT HAND
-
1064751-05D00 SPACER, REAR AXLE LEFT HANDSPACER, REAR AXLE LEFT HAND
-
1161410-32E00 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
1264710-32E10 AXLE, REARAXLE, REAR
-
1309160-19022 WASHERWASHER
-
1408314-40183 NUTNUT
-
1504111-40308 PINPIN
-
1664511-00B01 SPROCKET, REAR (NT:49)SPROCKET, REAR (NT:49)
-
1709120-08004 BOLT (8X20)BOLT (8X20)
-
1808322-01083 WASHERWASHER
-
1908319-31088 NUTNUT
-
2065311-14D00 RIM, REAR WHEEL (18X2.15)RIM, REAR WHEEL (18X2.15)
-
2165320-14D00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
2265110-13E80 TIRE, REAR, 100/100-18 59M (DUNLOP)TIRE, REAR, 100/100-18 59M (DUNLOP)
-
2365200-13E00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2465261-13E00 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
2569200-28C00 COVER SET, REAR DISCCOVER SET, REAR DISC
-
2601550-06123 BOLTBOLT
-
2701550-06203 BOLTBOLT
-
2865270-29F00 STOPPER, BEADSTOPPER, BEAD
-
2908310-00083 NUTNUT
-
3008322-01083 WASHERWASHER
