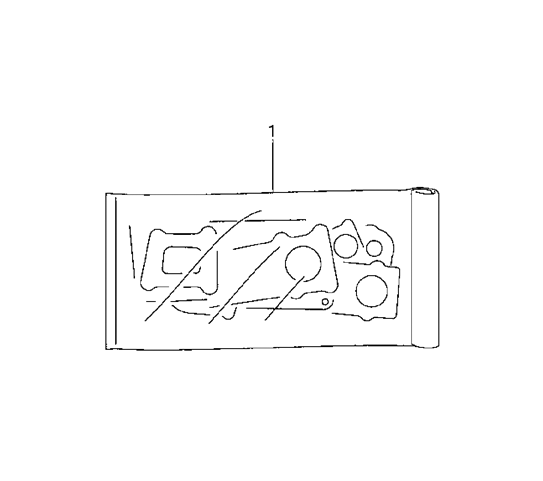

GASKET SET для Suzuki DR-Z125K5 - 2005 года выпуска`
-
№АртикулНазвание
-
111401-08810 GASKET SETGASKET SET
-
211141-05202 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
311241-05311 GASKET, CYLINDERGASKET, CYLINDER
-
411482-05211 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
511483-05210 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
612837-32410 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
714181-18C00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
814771-08G00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
909168-08021 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
-
1009168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
1109280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1209280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1309280-17003 O RING (D:3.1,ID:6.8)O RING (D:3.1,ID:6.8)
-
1409280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
1509280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
1609280-30001 O RING (D:3,ID:29.5)O RING (D:3,ID:29.5)
-
1709280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
1809280-60005 O RINGO RING
