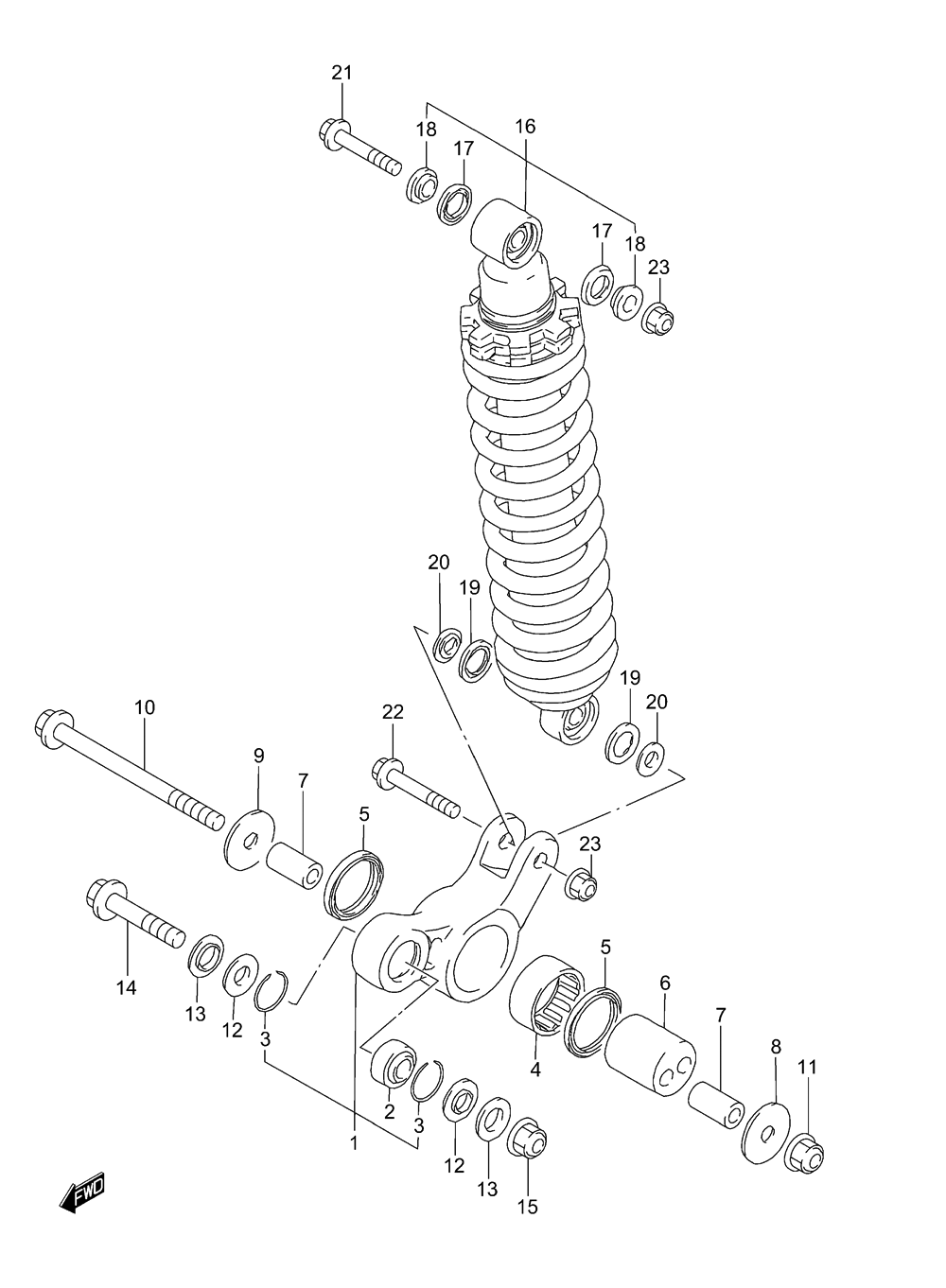

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR-200SEK5 - 2005 года выпуска`
-
№АртикулНазвание
-
162600-42812 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209269-12006 BEARING (12X26X16)BEARING (12X26X16)
-
362277-27C20 RING, BEARING STOPPERRING, BEARING STOPPER
-
409263-37003 BEARING (37X47X20)BEARING (37X47X20)
-
562624-42A00 SEAL, DUSTSEAL, DUST
-
662623-42A11 SPACER, REAR SUSPENSION ECCENTRICSPACER, REAR SUSPENSION ECCENTRIC
-
762646-42A11 SPACER, CUSHION LEVER SHAFTSPACER, CUSHION LEVER SHAFT
-
862628-42AA0 WASHER, REAR CUSHION LEVER CENTER LEFT HANDWASHER, REAR CUSHION LEVER CENTER LEFT HAND
-
962625-42AA0 WASHER, REAR CUSHION LEVER CENTER RIGHT HANDWASHER, REAR CUSHION LEVER CENTER RIGHT HAND
-
1062621-42AA0 SHAFT, REAR CUSHION LEVER CENTERSHAFT, REAR CUSHION LEVER CENTER
-
1108319-21128 NUTNUT
-
1262647-05A00 SEAL, DUST REAR CUSHION FRONTSEAL, DUST REAR CUSHION FRONT
-
1362316-05A01 SPACER, REAR CUSHION FRONTSPACER, REAR CUSHION FRONT
-
1462668-42A02 BOLT, CUSHION LEVER FRONTBOLT, CUSHION LEVER FRONT
-
1508319-31128 NUTNUT
-
1662100-44AB2-163 ABSORBER ASSY, REAR SHOCK (YELLOW FOR YU1) (CANADA)ABSORBER ASSY, REAR SHOCK (YELLOW FOR YU1) (CANADA)
-
1662100-44AB2-28W ABSORBER ASSY, REAR SHOCK (WHITE FOR N9J) (CANADA)ABSORBER ASSY, REAR SHOCK (WHITE FOR N9J) (CANADA)
-
1662100-44AC0-163 ABSORBER ASSY, REAR SHOCK (YELLOW FOR YU1) (UNITED STATES)ABSORBER ASSY, REAR SHOCK (YELLOW FOR YU1) (UNITED STATES)
-
1662100-44AC0-28W ABSORBER ASSY, REAR SHOCK (WHITE FOR N9J) (UNITES STATES)ABSORBER ASSY, REAR SHOCK (WHITE FOR N9J) (UNITES STATES)
-
1762226-20900 SEAL, DUSTSEAL, DUST
-
1862684-20900 SPACERSPACER
-
1962226-02B00 SEAL, DUST LOWERSEAL, DUST LOWER
-
2062684-31300 COLLAR, LOWERCOLLAR, LOWER
-
2162311-14501 BOLT, UPPER (10X58)BOLT, UPPER (10X58)
-
2209103-10126 BOLT, LOWER (10X48)BOLT, LOWER (10X48)
-
2309159-10058 NUTNUT
