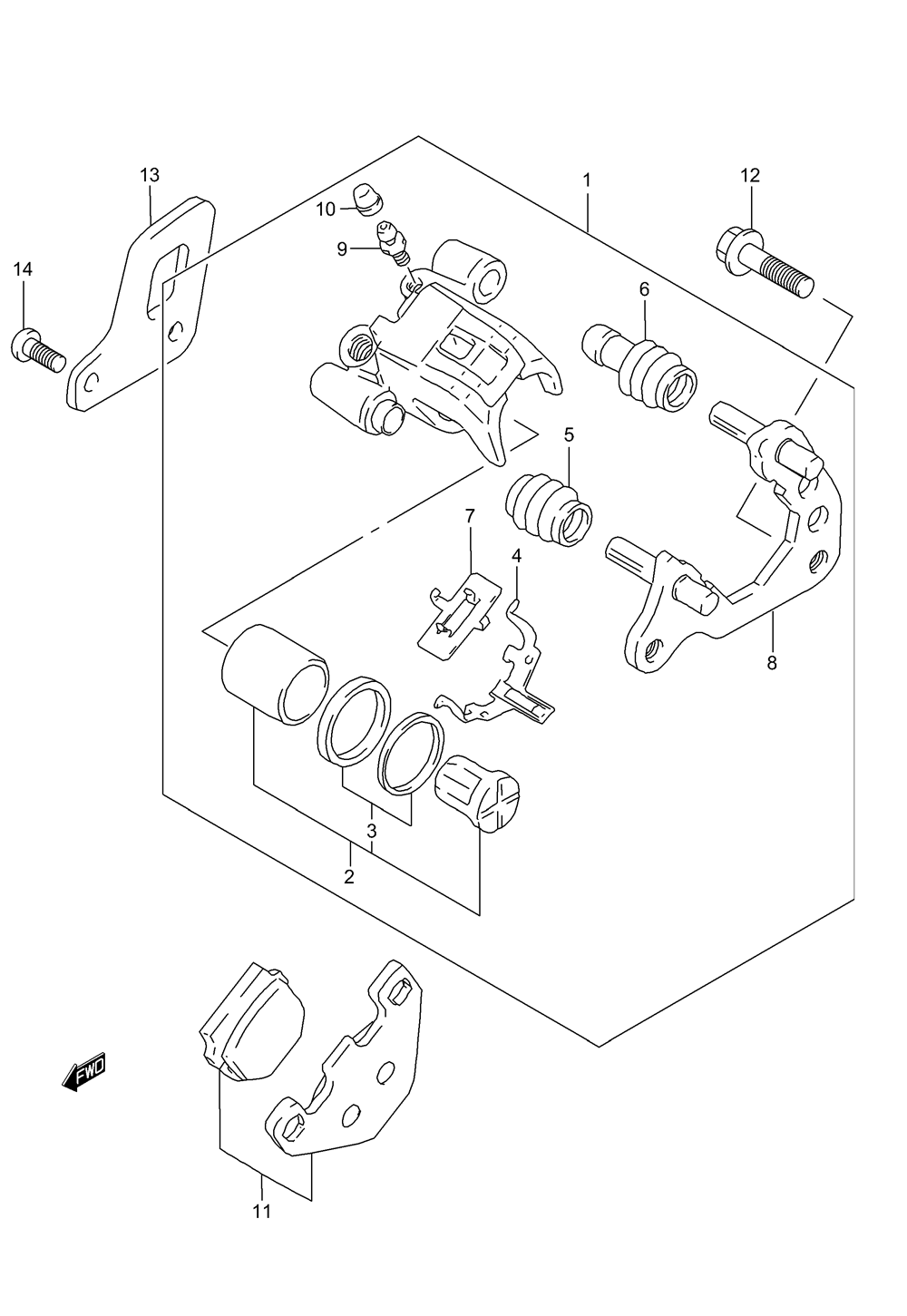

BRAKE - REAR CALIPER для Suzuki RM-85LK4 - 2004 года выпуска
-
№АртикулНазвание
-
169100-02B44-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-02811 PISTON SETPISTON SET
-
359100-04841 SEAL SET, PISTONSEAL SET, PISTON
-
459315-36500 SPRINGSPRING
-
559312-36500 BOOTBOOT
-
659313-36500 INSULATORINSULATOR
-
769133-02B40 SHIMSHIM
-
869150-02B41 BRACKETBRACKET
-
959121-18410 BLEEDERBLEEDER
-
1059122-02B40 CAPCAP
-
1169100-02822 PAD SETPAD SET
-
1209103-08171 BOLT (8X18)BOLT (8X18)
-
1369725-02B40 GUARD, CALIPERGUARD, CALIPER
-
1409139-06027 SCREW (6X12)SCREW (6X12)
