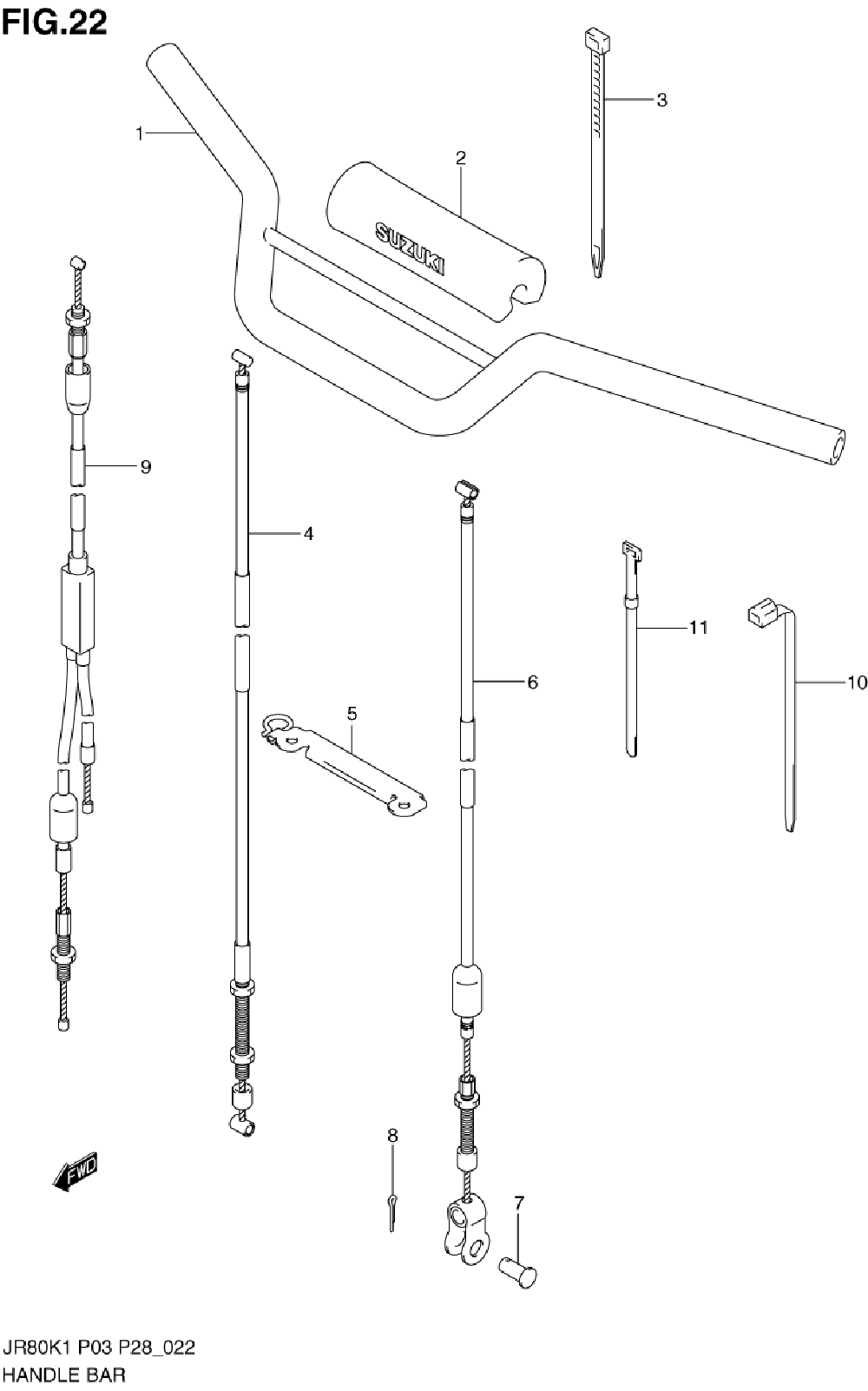

HANDLEBAR W/ CABLES для Suzuki JR80K4 - 2004 года выпуска`
-
№АртикулНазвание
-
1-256110-034A1-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
256172-03401 COVER, HANDLECOVER, HANDLE
-
309407-14407 CLAMPCLAMP
-
458110-034A0 CABLE ASSY, BRAKECABLE ASSY, BRAKE
-
558620-034A0 GUIDE, BRAKE CABLEGUIDE, BRAKE CABLE
-
658200-034A0 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
709200-06004 PINPIN
-
804111-20158 COTTER PINCOTTER PIN
-
958300-034A0 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1109407-18402 CLAMP (L:165)CLAMP (L:165)
