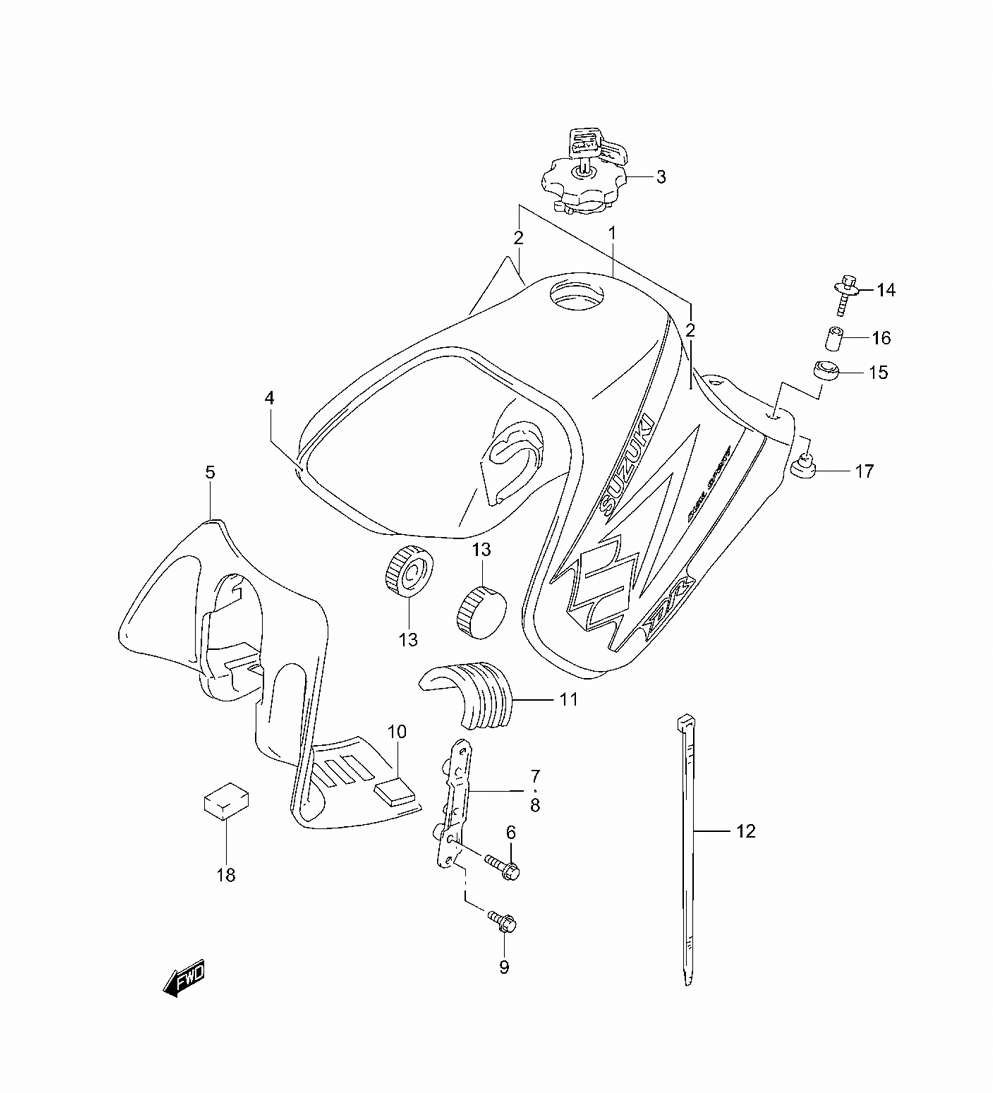

FUEL TANK для Suzuki DR650SEK4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-32EE0-YC2 TANK ASSY, FUEL (BLUE, N9J FOR N9J) (EXCEPT CALIF)
    TANK ASSY, FUEL (BLUE, N9J FOR N9J) (EXCEPT CALIF)
  • 1
    44100-32EE0-YU1 TANK ASSY, FUEL (YELLOW, YU1 FOR YU1) (EXCEPT CALIF)
    TANK ASSY, FUEL (YELLOW, YU1 FOR YU1) (EXCEPT CALIF)
  • 1
    44100-32EF0-YC2 TANK ASSY, FUEL (BLUE, YC2 FOR N9J) (CALIF ONLY)
    TANK ASSY, FUEL (BLUE, YC2 FOR N9J) (CALIF ONLY)
  • 1
    44100-32EF0-YU1 TANK ASSY, FUEL (YELLOW, YU1 FOR YU1) (CALIF ONLY)
    TANK ASSY, FUEL (YELLOW, YU1 FOR YU1) (CALIF ONLY)
  • 2
    68110-32E70-ABM TAPE SET, FUEL TANK (FOR YC2)
    TAPE SET, FUEL TANK (FOR YC2)
  • 2
    68110-32E70-NN2 TAPE SET, FUEL TANK (FOR YU1)
    TAPE SET, FUEL TANK (FOR YU1)
  • 3
    44200-13830 CAP SET, FUEL TANK (EXCEPT CALIF)
    CAP SET, FUEL TANK (EXCEPT CALIF)
  • 3
    44200-05820 CAP SET, FUEL TANK (CALIF ONLY)
    CAP SET, FUEL TANK (CALIF ONLY)
  • 4
    68241-32E00 MOLDING
    MOLDING
  • 5
    44271-32E00 COVER, FRONT
    COVER, FRONT
  • 6
    09116-06098 BOLT, FRONT COVER
    BOLT, FRONT COVER
  • 7
    44280-32E00 BRACKET, FRONT COVER RIGHT HAND
    BRACKET, FRONT COVER RIGHT HAND
  • 8
    44290-32E00 BRACKET, FRONT COVER LEFT HAND
    BRACKET, FRONT COVER LEFT HAND
  • 9
    01550-06253 BOLT, BRACKET
    BOLT, BRACKET
  • 10
    51827-12E00 CUSHION
    CUSHION
  • 11
    44541-13E00 CUSHION, UPPER REAR
    CUSHION, UPPER REAR
  • 12
    09407-25402 CLAMP
    CLAMP
  • 13
    44511-12D00 CUSHION, FRONT
    CUSHION, FRONT
  • 14
    09116-06172 BOLT, REAR
    BOLT, REAR
  • 15
    09320-14022 CUSHION, UPPER
    CUSHION, UPPER
  • 16
    09180-06271 SPACER
    SPACER
  • 17
    09320-10020 CUSHION, LOWER
    CUSHION, LOWER
  • 18
    44613-13600 CUSHION, TANK COVER
    CUSHION, TANK COVER
