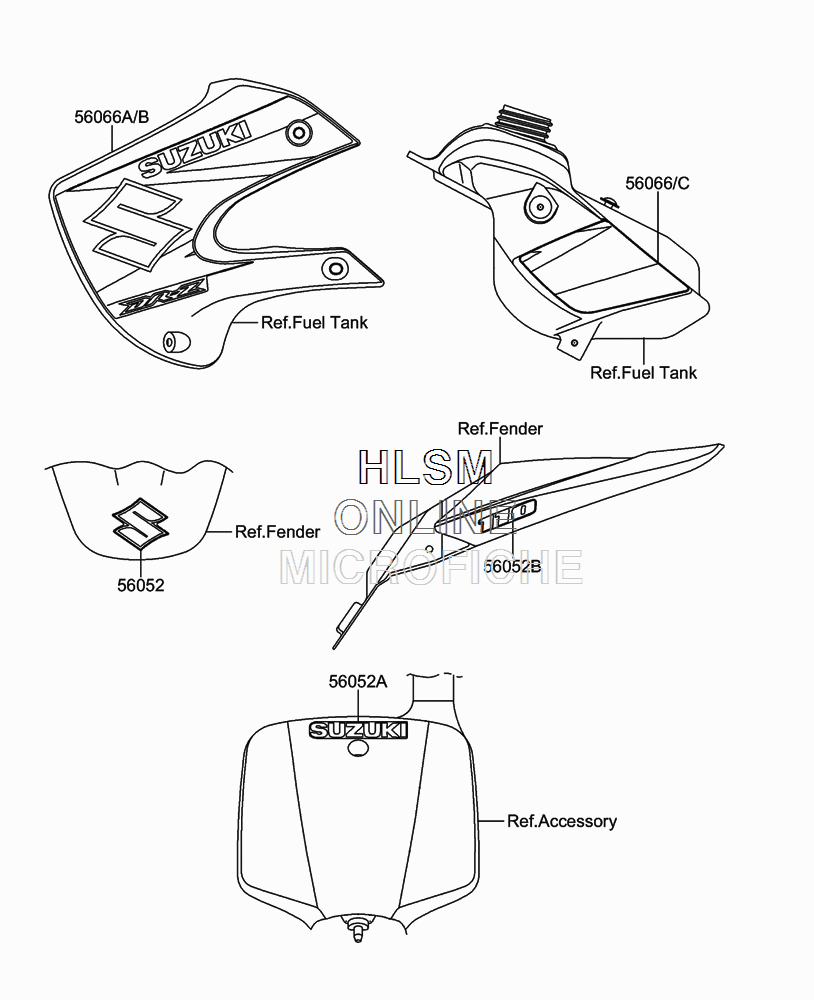

DECAL для Suzuki DR-Z110K4 - 2004 года выпуска
-
№АртикулНазвание
-
56052K5605-20141 MARK,FR FENDERMARK,FR FENDER
-
56052AK5605-21784 MARK,NUMBER PLATE,SUZUKIMARK,NUMBER PLATE,SUZUKI
-
56052BK5605-21792 MARK,RR FENDER,110MARK,RR FENDER,110
-
56066K5606-60425 PATTERN,FUEL TANK, LEFT HANDPATTERN,FUEL TANK, LEFT HAND
-
56066AK5606-60525 PATTERN,SHROUD, LEFT HANDPATTERN,SHROUD, LEFT HAND
-
56066BK5606-60526 PATTERN,SHROUD, RIGHT HANDPATTERN,SHROUD, RIGHT HAND
-
56066CK5606-60784 PATTERN,FUEL TANK, RIGHT HANDPATTERN,FUEL TANK, RIGHT HAND
