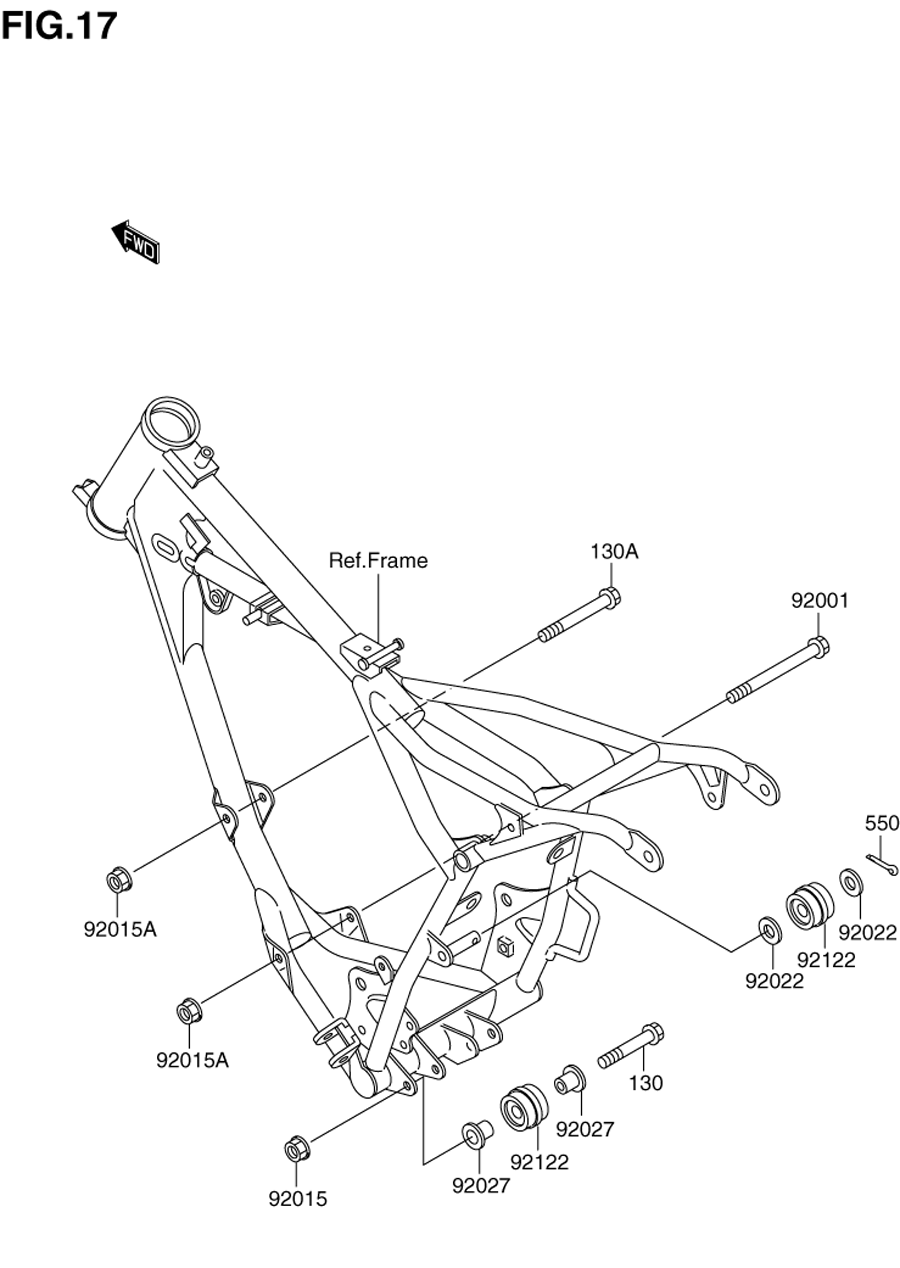

ENGINE MOUNT для Suzuki RM60K3 - 2003 года выпуска`
-
№АртикулНазвание
-
92001K9200-11367 BOLT,8X105BOLT,8X105
-
92015K9201-51078 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015K9201-51143 NUT,8MMNUT,8MM
-
92022KK920-22239 WASHER,10.5X20X1WASHER,10.5X20X1
-
92027K9202-71183 COLLARCOLLAR
-
92122K9212-21030 ROLLER,CHAIN GUIDEROLLER,CHAIN GUIDE
-
130KK130-G0640 BOLT-FLANGED,6X40BOLT-FLANGED,6X40
-
130KK130-G0860 BOLT-FLANGED,8X60BOLT-FLANGED,8X60
-
550KK550-D2518 PIN-COTTER,2.5X18PIN-COTTER,2.5X18
