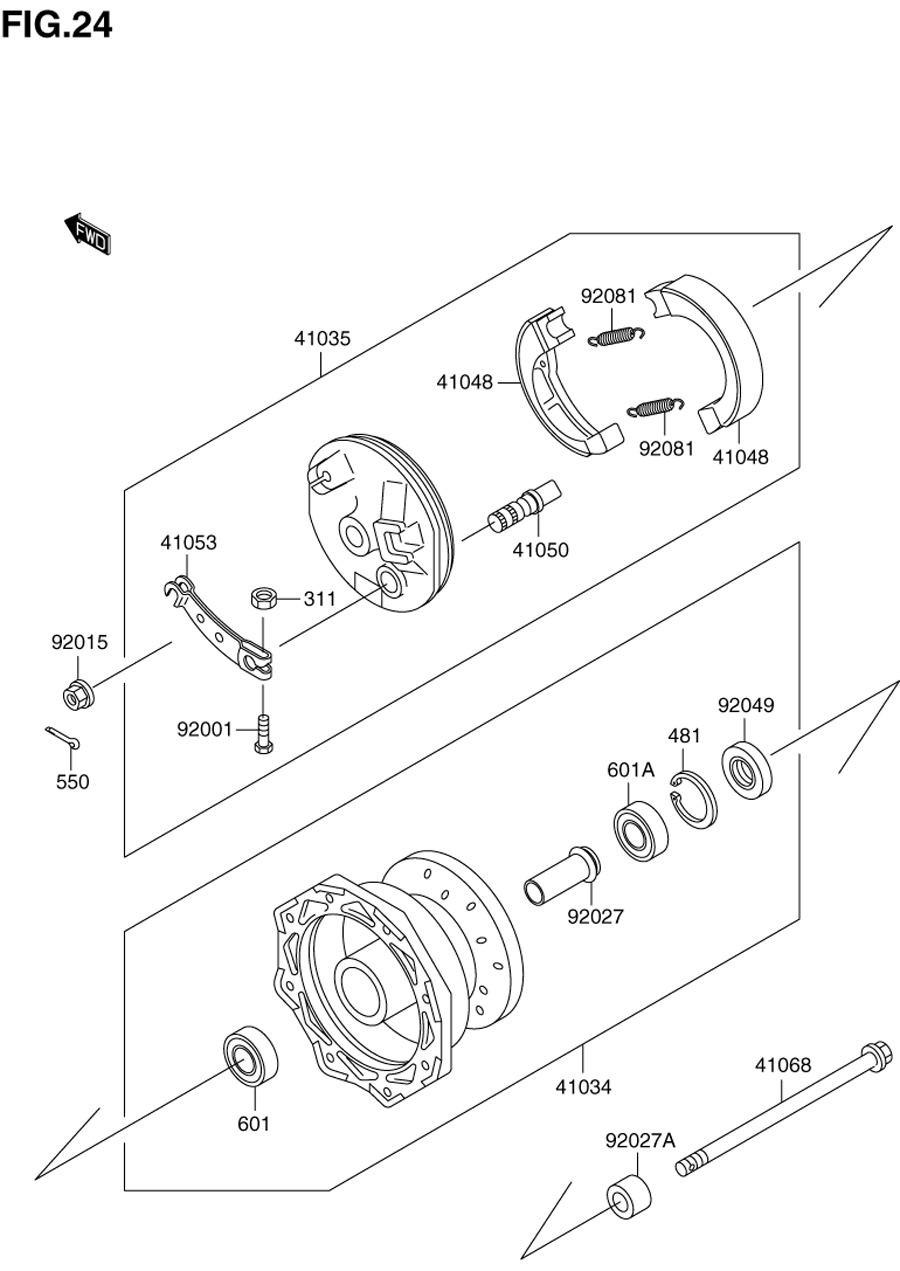

BRAKE - FRONT DRUM ASSY. для Suzuki RM60K3 - 2003 года выпуска`
-
№АртикулНазвание
-
41034K4103-41168 DRUM-ASSY,BRAKE (FRONT)DRUM-ASSY,BRAKE (FRONT)
-
41035K4103-51285 PANEL-ASSY-BRAKE(FRONT)PANEL-ASSY-BRAKE(FRONT)
-
41048K4104-81083 SHOE-BRAKESHOE-BRAKE
-
41050K4105-01031 CAM-BRAKECAM-BRAKE
-
41053K4105-31027 LEVER-BRAKE CAM (FRONT)LEVER-BRAKE CAM (FRONT)
-
41068K4106-81305 AXL,(FRONT)AXL,(FRONT)
-
92001K9200-11695 BOLT,5X25BOLT,5X25
-
92015K9201-51335 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
92027K9202-71470 COLLAR,DRUM,L=54 (FRONT)COLLAR,DRUM,L=54 (FRONT)
-
92027K9202-71472 COLLAR,AXLE,L=14.5 (FRONT)COLLAR,AXLE,L=14.5 (FRONT)
-
92049K9204-91095 SEAL-OIL,DD20357SEAL-OIL,DD20357
-
92081K9208-11564 SPRING,BRAKE SHOESPRING,BRAKE SHOE
-
311KK311-H0500 NUT-HEXNUT-HEX
-
481KK481-J3500 CIRCLIP-TYPE-C,35MMCIRCLIP-TYPE-C,35MM
-
550KK550-D2520 PIN-COTTER,2.5X20PIN-COTTER,2.5X20
-
601KKK60-1B620-0UU BEARING-BALL,#6200UUC3BEARING-BALL,#6200UUC3
-
601KKK60-1B630-0UU BEARING-BALL,#6300UUC3BEARING-BALL,#6300UUC3
