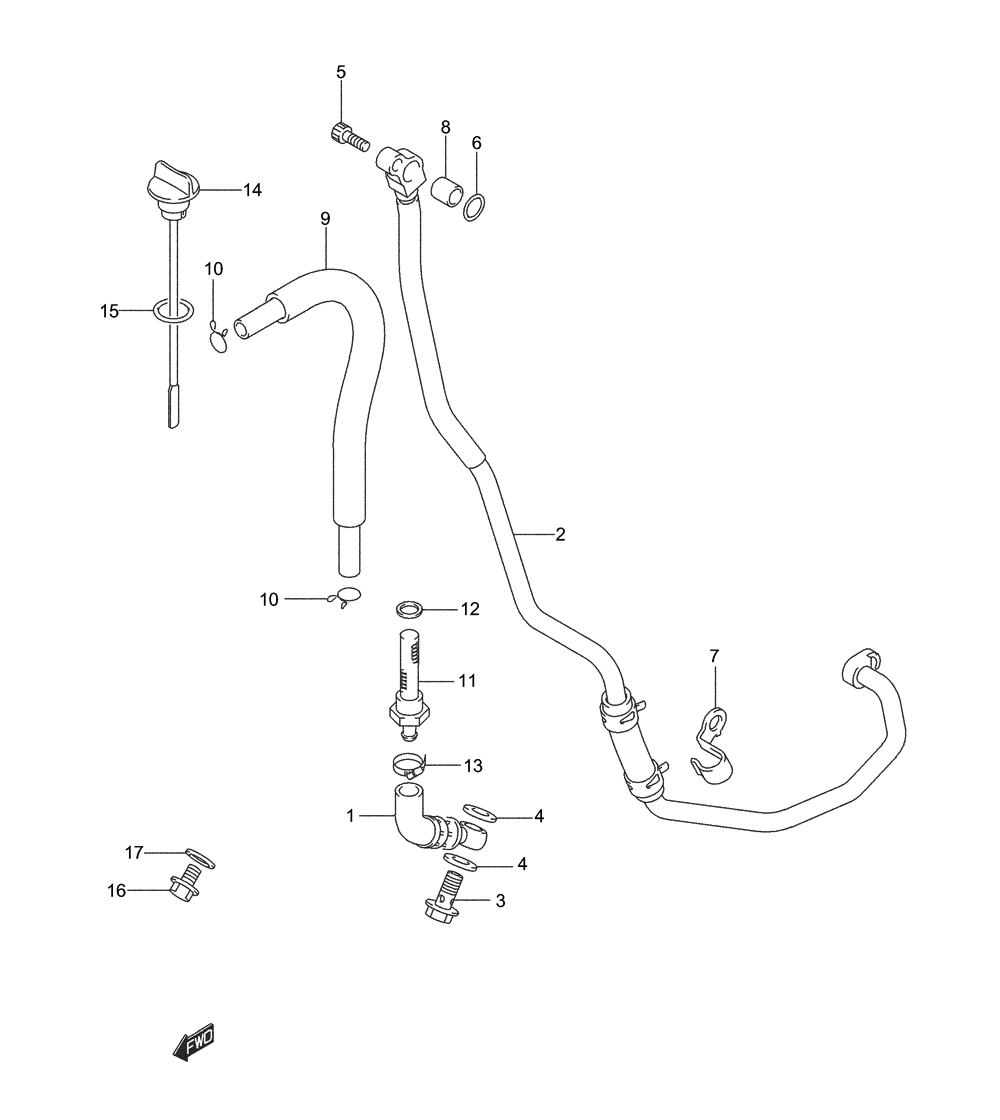

OIL TANK W/ OIL HOSE для Suzuki DR-Z400K3 - 2003 года выпуска
-
№АртикулНазвание
-
116460-29F00 HOSE, OIL TANK RIGHT HANDHOSE, OIL TANK RIGHT HAND
-
216470-29F00 HOSE, OIL TANK LEFT HANDHOSE, OIL TANK LEFT HAND
-
309360-14012 BOLT, UNION (14X27)BOLT, UNION (14X27)
-
409168-14015 GASKET (14X20X1.5)GASKET (14X20X1.5)
-
507120-06163 BOLT, UPPERBOLT, UPPER
-
507120-06203 BOLTBOLT
-
609280-11005 O RING (D:2.4,ID:11)O RING (D:2.4,ID:11)
-
716491-29F01 CLAMP, OIL TANK HOSECLAMP, OIL TANK HOSE
-
804211-11129 PIN, OIL TANK HOSEPIN, OIL TANK HOSE
-
916480-29F00 HOSE, OIL OVER FLOWHOSE, OIL OVER FLOW
-
1009401-12403 CLIPCLIP
-
1116550-29F00 STRAINER, FRAME HEAD UNDERSTRAINER, FRAME HEAD UNDER
-
1209168-18007 GASKETGASKET
-
1309402-22511 CLAMPCLAMP
-
1416561-29F10 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
1509280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1609247-10008 PLUG, DRAINPLUG, DRAIN
-
1709168-10002 GASKETGASKET
