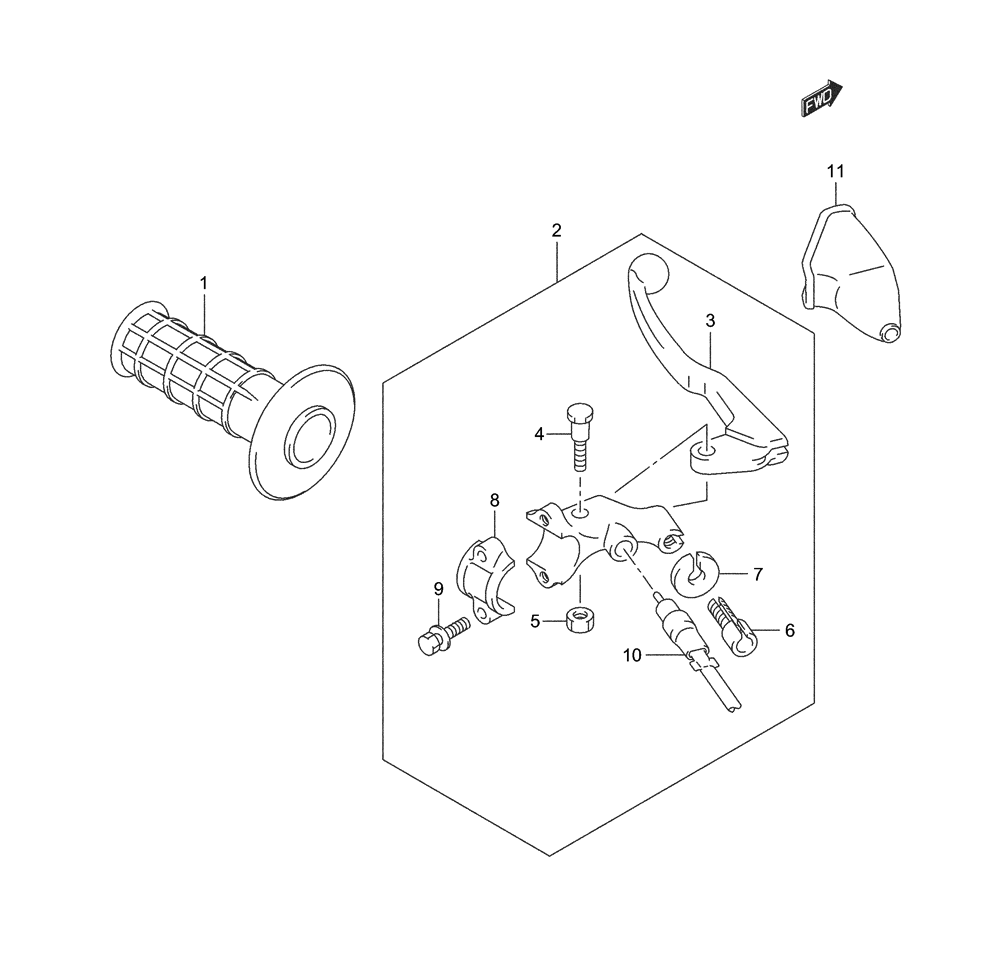

HANDLEBAR - LEVERS W/ GRIPS (LEFT) для Suzuki DR-Z400EK3 - 2003 года выпуска
-
№АртикулНазвание
-
157211-27C00 GRIP, LEFT HANDGRIP, LEFT HAND
-
257500-29F10 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
357621-13E00 LEVER, CLUTCHLEVER, CLUTCH
-
457431-21D11 BOLT, LEVER PIVOTBOLT, LEVER PIVOT
-
508319-21068 NUTNUT
-
657441-29F00 ADJUSTER, WIREADJUSTER, WIRE
-
757442-45C00 NUT, LOCKNUT, LOCK
-
857512-13E00 BRACKET, HOLDERBRACKET, HOLDER
-
957513-13E00 BOLT, BRACKETBOLT, BRACKET
-
1057560-13E00 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
1157341-29F01 DUST COVER, CLUTCH CABLEDUST COVER, CLUTCH CABLE
