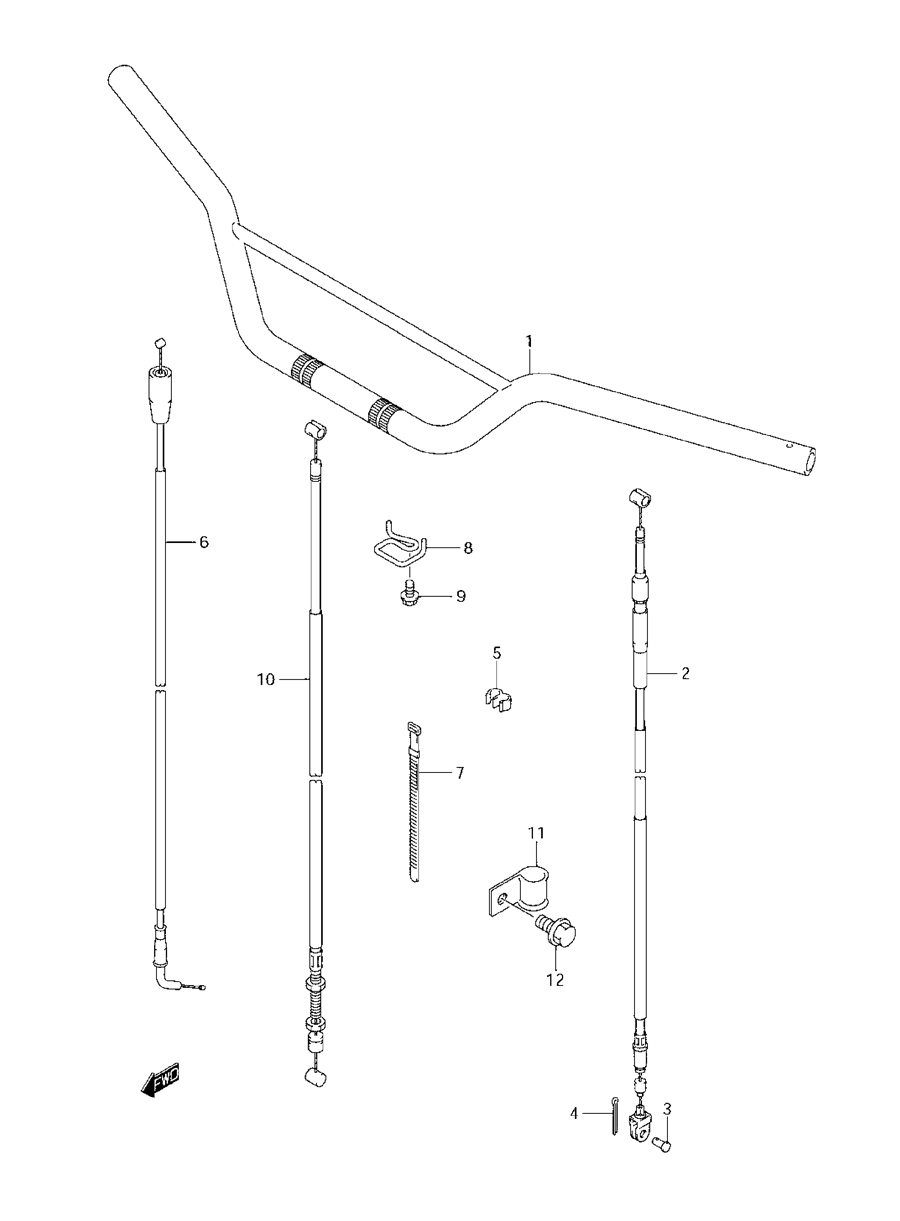

HANDLEBAR для Suzuki DR-Z125K3 - 2003 года выпуска
-
№АртикулНазвание
-
156110-08G00-13L HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
258200-08G00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
309200-06004 PINPIN
-
404111-20158 COTTER PINCOTTER PIN
-
509403-17402 CLAMP, CLUTCH CABLECLAMP, CLUTCH CABLE
-
658300-08G00 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
709407-11402 CLAMP, THROTTLE CABLECLAMP, THROTTLE CABLE
-
858621-08G00 GUIDE, CABLEGUIDE, CABLE
-
901550-06123 BOLTBOLT
-
1058110-08G00 CABLE, FRONT BRAKECABLE, FRONT BRAKE
-
1158622-08G00 CLAMPCLAMP
-
1201547-06103 BOLTBOLT
