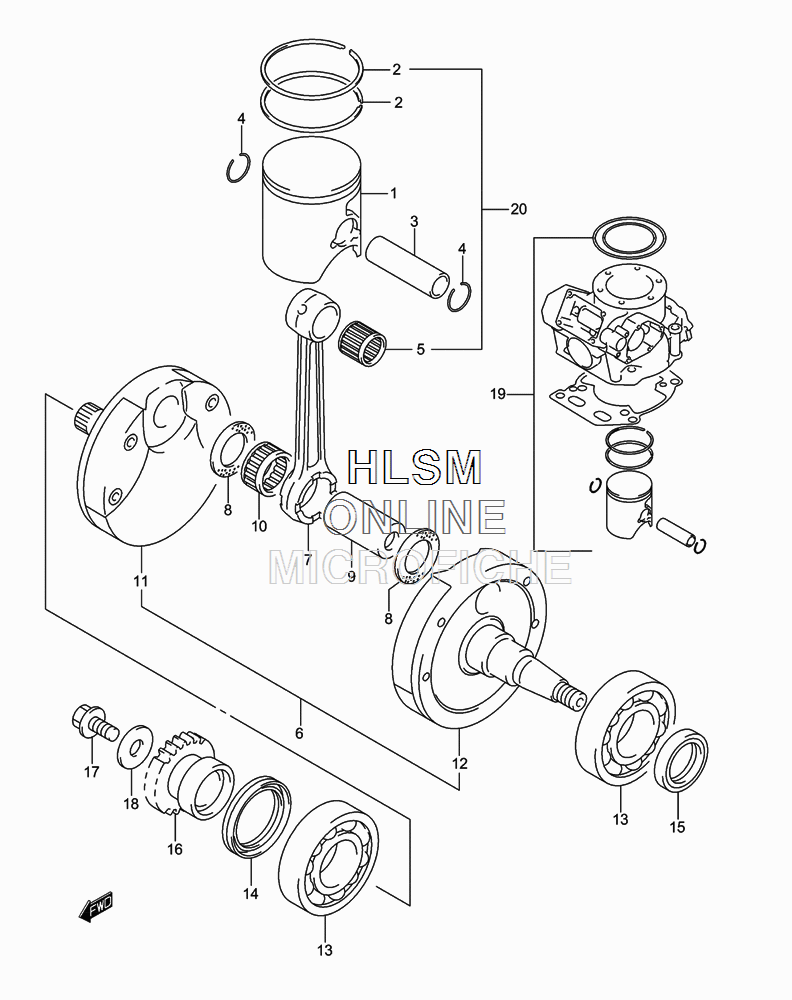

CRANKSHAFT W/ PISTON для Suzuki RM250K2 - 2002 года выпуска

№

Артикул

Название
1

12110-37E42-0F0 PISTON

PISTON
2

12141-37E02 RING, PISTON

RING, PISTON
3

12151-37F00 PIN, PISTON

PIN, PISTON
4

09381-18002 CIRCLIP

CIRCLIP
5

09263-18016 BEARING (18X23X22)

BEARING (18X23X22)
6

12200-37F00 CRANKSHAFT ASSY (INCL. 7-12)

CRANKSHAFT ASSY (INCL. 7-12)
7

12161-37E00 ROD, CONNECTING

ROD, CONNECTING
8

09160-24027 WASHER

WASHER
9

12211-05D00 PIN, CRANK

PIN, CRANK
10

09263-24026 BEARING (24X30X20)

BEARING (24X30X20)
11

12220-37F00 CRANKSHAFT, RIGHT HAND

CRANKSHAFT, RIGHT HAND
12

12260-37F00 CRANKSHAFT, LEFT HAND

CRANKSHAFT, LEFT HAND
13

09262-28027 BEARING (28X68X18)

BEARING (28X68X18)
14

09283-38021 OIL SEAL, RIGHT HAND (38X52X8)

OIL SEAL, RIGHT HAND (38X52X8)
15

09283-25099 OIL SEAL, LEFT HAND (25X37X6)

OIL SEAL, LEFT HAND (25X37X6)
16

21111-37F00 GEAR, PRIMARY DRIVE (NT:21)

GEAR, PRIMARY DRIVE (NT:21)
17

09103-10339 BOLT, PRIMARY DRIVE GEAR

BOLT, PRIMARY DRIVE GEAR
18

09164-11004 WASHER

WASHER
19

12102-37812 TOP END KIT, ENGINE (OPT) (US ONLY) (NOT SHOWN)

TOP END KIT, ENGINE (OPT) (US ONLY) (NOT SHOWN)
19

11147-37F00 O RING, CYLINDER HEAD NO.1 (NOT SHOWN)

O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
19

11148-37F00 O RING, CYLINDER HEAD NO.2 (NOT SHOWN)

O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
19

11241-37F01 GASKET, CYLINDER (NOT SHOWN)

GASKET, CYLINDER (NOT SHOWN)
19

12110-37E42-0F0 PISTON (NOT SHOWN)

PISTON (NOT SHOWN)
19

12141-37E02 RING, PISTON (NOT SHOWN)

RING, PISTON (NOT SHOWN)
19

09381-18002 CIRCLIP (NOT SHOWN)

CIRCLIP (NOT SHOWN)
20

12101-37893 PISTON KIT (OPT) (CANADA ONLY) (NOT SHOWN)

PISTON KIT (OPT) (CANADA ONLY) (NOT SHOWN)
20

12110-37E42-0F0 PISTON (NOT SHOWN)

PISTON (NOT SHOWN)
20

12141-37E02 RING, PISTON (NOT SHOWN)

RING, PISTON (NOT SHOWN)
20

12151-37F00 PIN, PISTON (NOT SHOWN)

PIN, PISTON (NOT SHOWN)
20

09263-18016 BEARING (NOT SHOWN)

BEARING (NOT SHOWN)
20

09381-18002 CIRCLIP (NOT SHOWN)

CIRCLIP (NOT SHOWN)
