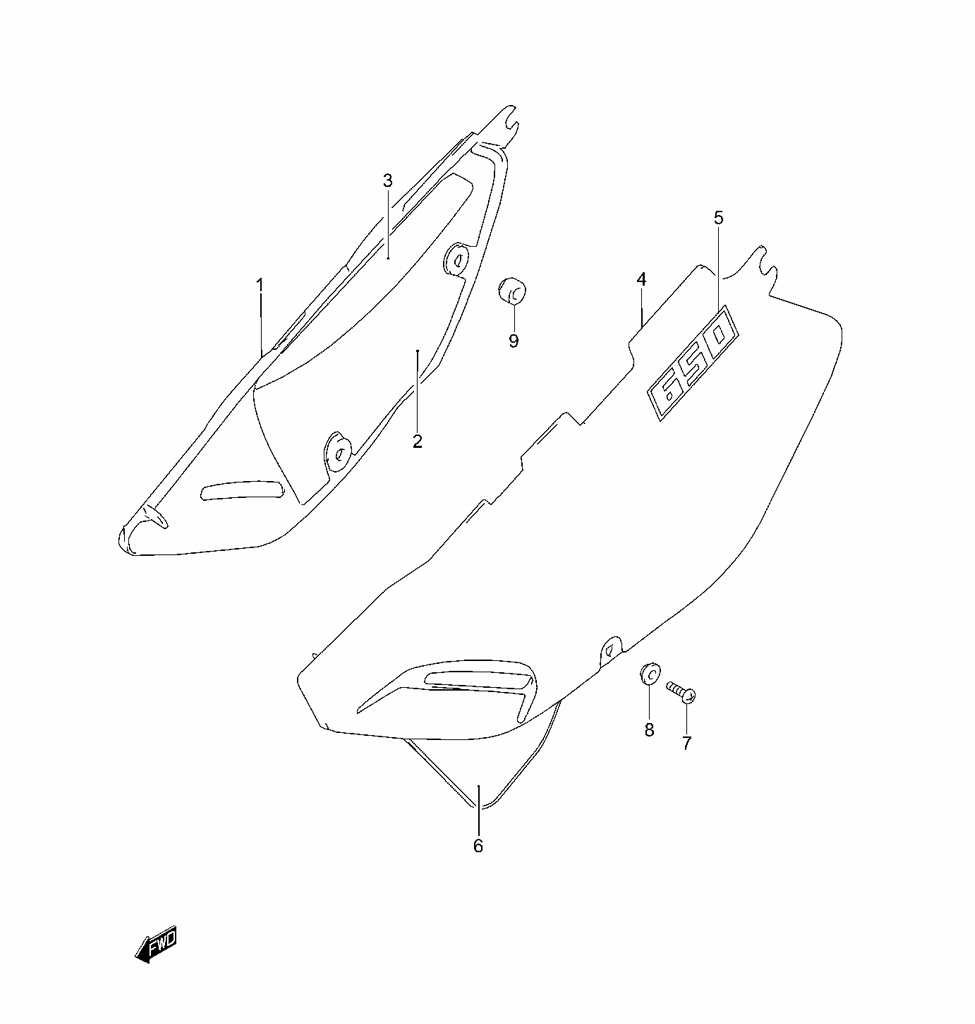

SIDE COVER для Suzuki DR650SEK2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-32E00-30H COVER, FRAME RIGHT HAND (WHITE, 30H FOR N9J)
    COVER, FRAME RIGHT HAND (WHITE, 30H FOR N9J)
  • 1
    47111-32E00-YU1 COVER, FRAME RIGHT HAND (YELLOW, YU1 FOR YU1)
    COVER, FRAME RIGHT HAND (YELLOW, YU1 FOR YU1)
  • 2
    47166-32E00 SHIELD, COVER LOWER RIGHT HAND
    SHIELD, COVER LOWER RIGHT HAND
  • 3
    47167-32E00 SHIELD, COVER UPPER RIGHT HAND
    SHIELD, COVER UPPER RIGHT HAND
  • 4
    47211-32E00-30H COVER, FRAME LEFT HAND (BLACK, 30H FOR N9J)
    COVER, FRAME LEFT HAND (BLACK, 30H FOR N9J)
  • 4
    47211-32E00-YU1 COVER, FRAME LEFT HAND (YELLOW, YU1 FOR YU1)
    COVER, FRAME LEFT HAND (YELLOW, YU1 FOR YU1)
  • 5
    68131-32E10-8YM EMBLEM (FOR N9J)
    EMBLEM (FOR N9J)
  • 5
    68131-32E10-GY8 EMBLEM (FOR YU1)
    EMBLEM (FOR YU1)
  • 6
    68146-32E00 TAPE, NO.2, LEFT HAND
    TAPE, NO.2, LEFT HAND
  • 7
    02142-06167 SCREW
    SCREW
  • 8
    09169-06028 WASHER
    WASHER
  • 9
    09321-10019 CUSHION, MUFFLER
    CUSHION, MUFFLER
