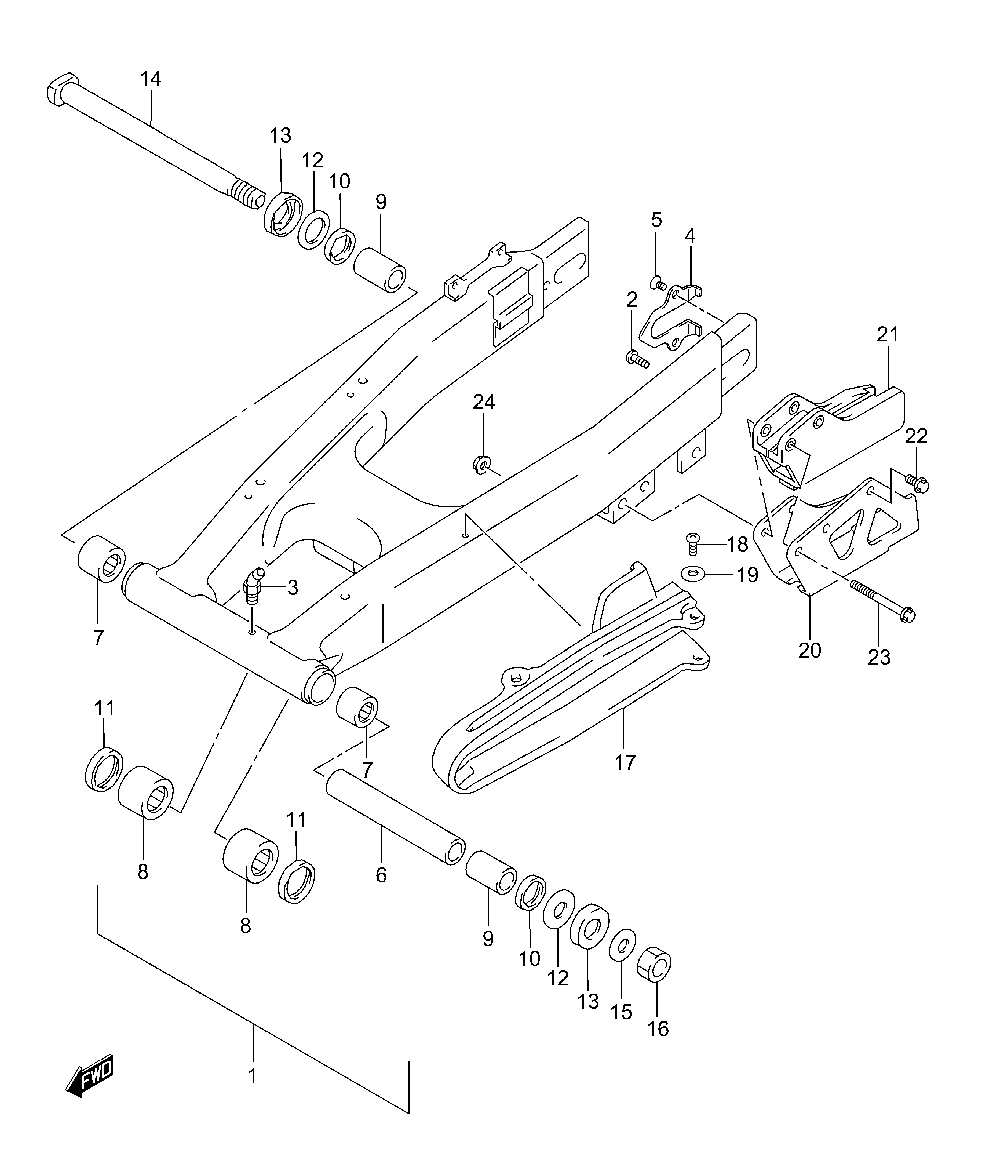

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki DR-Z250K2 - 2002 года выпуска`
-
№АртикулНазвание
-
161000-13E20 SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
261431-13E00 BOLT, STOPPERBOLT, STOPPER
-
308351-31008 NIPPLENIPPLE
-
461128-29E00 PLATEPLATE
-
509126-05009 SCREW (5X8)SCREW (5X8)
-
661282-13E00 SPACERSPACER
-
709263-22017 BEARING, PIVOT (22X29X30)BEARING, PIVOT (22X29X30)
-
809263-20071 BEARING, REAR (20X27X23.5)BEARING, REAR (20X27X23.5)
-
961251-14D00 SPACER, PIVOT BEARINGSPACER, PIVOT BEARING
-
1009285-22001 OIL SEAL, PIVOT (22X29X4)OIL SEAL, PIVOT (22X29X4)
-
1109283-20031 OIL SEAL, REAR (20X27X5)OIL SEAL, REAR (20X27X5)
-
1208211-17341 THRUST WASHERTHRUST WASHER
-
1361262-28C10 COVER, PIVOTCOVER, PIVOT
-
1461211-13E00 SHAFT, PIVOTSHAFT, PIVOT
-
1508322-01163 WASHERWASHER
-
1609159-16007 NUTNUT
-
1761273-13E01 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1802142-06123 SCREWSCREW
-
1909169-06057 WASHERWASHER
-
2061342-36E30 PLATE, CHAIN GUIDE OUTERPLATE, CHAIN GUIDE OUTER
-
2161341-36E30 GUIDE, CHAINGUIDE, CHAIN
-
2201547-06123 BOLT, REARBOLT, REAR
-
2301547-06503 BOLTBOLT
-
2408319-31063 NUTNUT
