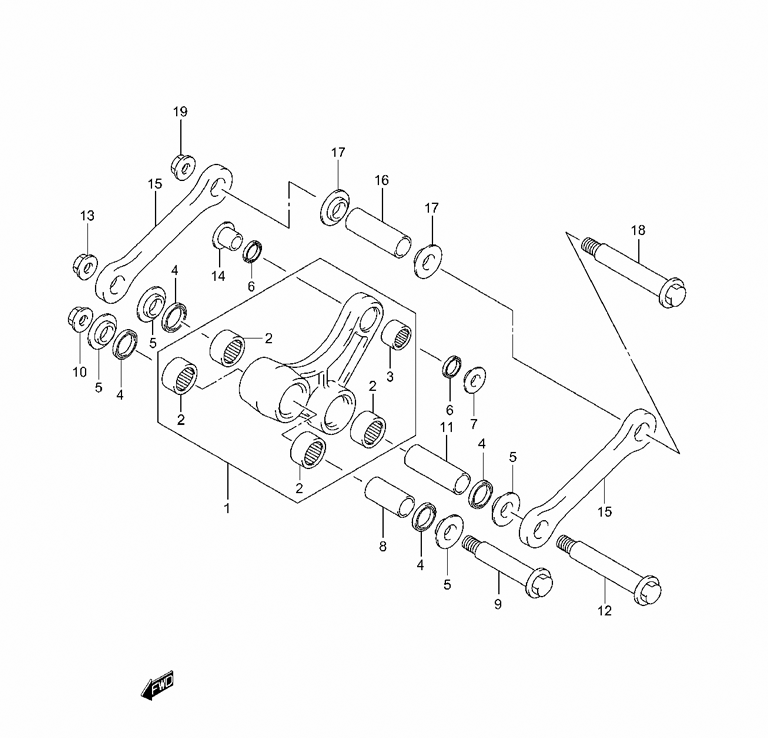

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM125K1 - 2001 года выпуска`
-
№АртикулНазвание
-
162600-37840 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20086 BEARING (20X27X15)BEARING (20X27X15)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462624-14500 SEAL, DUST (19X27X4)SEAL, DUST (19X27X4)
-
562647-37F00 SPACERSPACER
-
609284-16005 SEAL, REAR (16X22X2.5)SEAL, REAR (16X22X2.5)
-
762685-37F00 SPACER, REAR LEFT HANDSPACER, REAR LEFT HAND
-
862317-37F00 SPACER, FRONT (15X20X31)SPACER, FRONT (15X20X31)
-
962658-37E01 BOLT, FRONT (12X76)BOLT, FRONT (12X76)
-
1009159-12056 NUTNUT
-
1162646-37F00 SPACER, CENTER (15X20X44)SPACER, CENTER (15X20X44)
-
1262621-37F00 BOLT, CENTER (12X100)BOLT, CENTER (12X100)
-
1309159-12056 NUTNUT
-
1462684-37F00 SPACER, REAR (10X16X22)SPACER, REAR (10X16X22)
-
1562641-37F00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1662646-37F00 SPACER, ROD (15X20X44)SPACER, ROD (15X20X44)
-
1762647-37F00 SPACERSPACER
-
1862621-37F00 BOLT, RODBOLT, ROD
-
1909159-12056 NUTNUT
