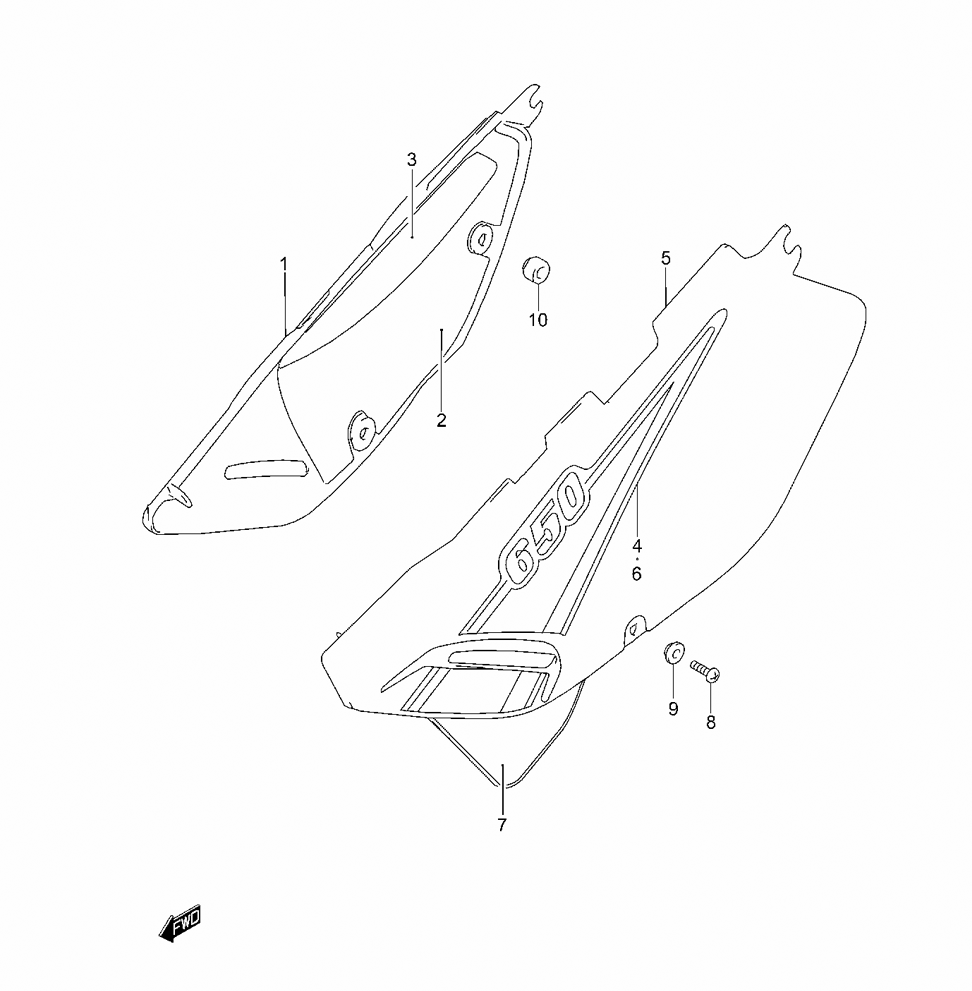

SIDE COVER для Suzuki DR650SEK1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-32E00-019 COVER, FRAME RIGHT HAND (BLACK, 019 FOR CT5)
    COVER, FRAME RIGHT HAND (BLACK, 019 FOR CT5)
  • 1
    47111-32E00-30H COVER, FRAME RIGHT HAND (WHITE, 30H FOR N9J)
    COVER, FRAME RIGHT HAND (WHITE, 30H FOR N9J)
  • 2
    47166-32E00 SHIELD, COVER LOWER RIGHT HAND
    SHIELD, COVER LOWER RIGHT HAND
  • 3
    47167-32E00 SHIELD, COVER UPPER RIGHT HAND
    SHIELD, COVER UPPER RIGHT HAND
  • 4
    68130-32E00-FF8 TAPE, RIGHT HAND
    TAPE, RIGHT HAND
  • 4
    68130-32E00-FF9 TAPE, RIGHT HAND
    TAPE, RIGHT HAND
  • 5
    47211-32E00-019 COVER, FRAME LEFT HAND (BLACK, 019 FOR CT5)
    COVER, FRAME LEFT HAND (BLACK, 019 FOR CT5)
  • 5
    47211-32E00-30H COVER, FRAME LEFT HAND (WHITE, 30H FOR N9J)
    COVER, FRAME LEFT HAND (WHITE, 30H FOR N9J)
  • 6
    68140-32E00-FF8 TAPE, LEFT HAND (FOR CT5)
    TAPE, LEFT HAND (FOR CT5)
  • 6
    68140-32E00-FF9 TAPE, LEFT HAND (FOR N9J)
    TAPE, LEFT HAND (FOR N9J)
  • 7
    68146-32E00 TAPE, NO.2, LEFT HAND
    TAPE, NO.2, LEFT HAND
  • 8
    02142-06167 SCREW
    SCREW
  • 9
    09169-06028 WASHER
    WASHER
  • 10
    09321-10019 CUSHION, MUFFLER
    CUSHION, MUFFLER
