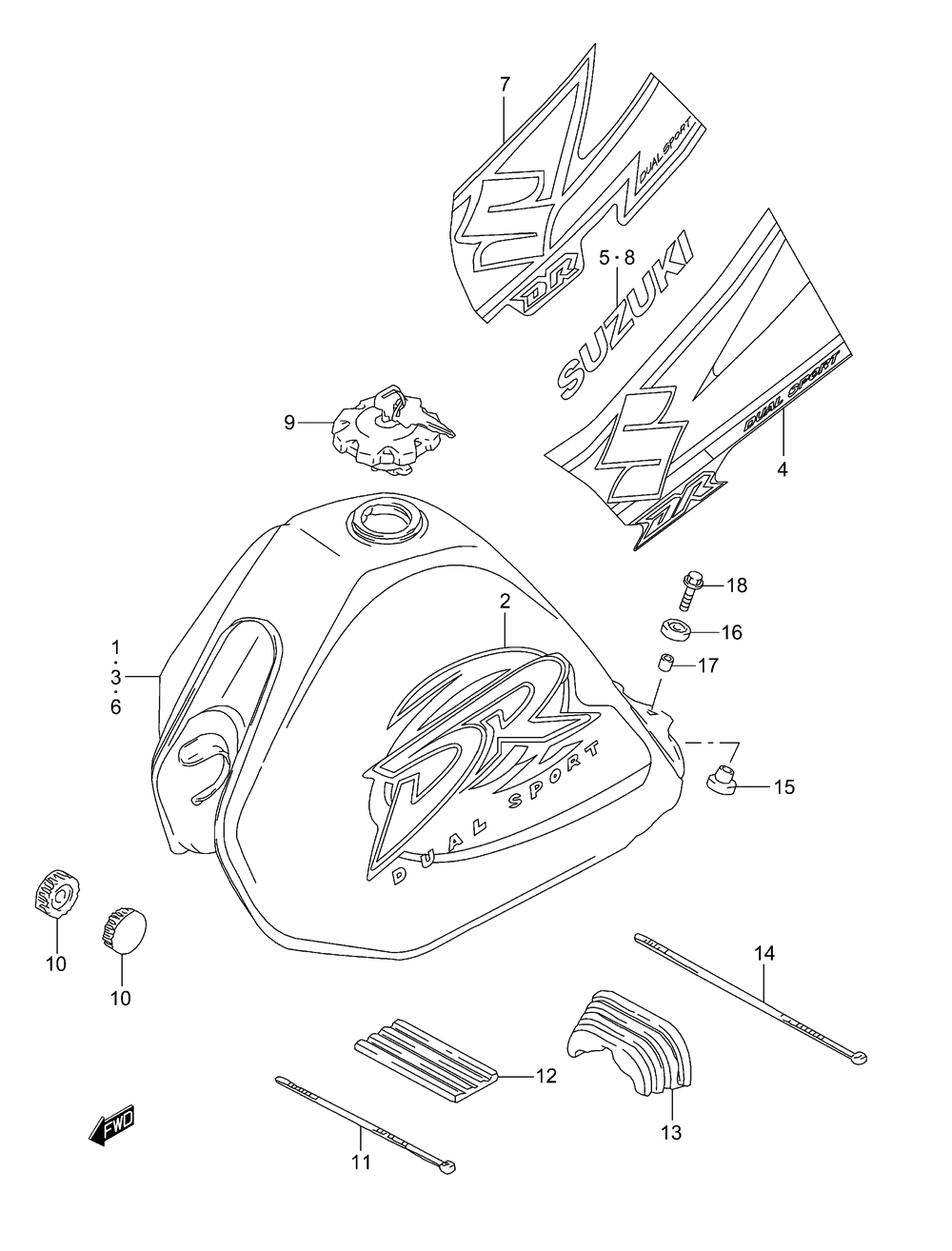

FUEL TANK для Suzuki DR200SEK1 - 2001 года выпуска
-
№АртикулНазвание
-
149100-44AM1-YEX TANK ASSY, FUEL (BLUE, YEX) (EXCEPT CALIF)TANK ASSY, FUEL (BLUE, YEX) (EXCEPT CALIF)
-
149100-44AN1-YEX TANK ASSY, FUEL (BLUE, YEX) (CALIF ONLY)TANK ASSY, FUEL (BLUE, YEX) (CALIF ONLY)
-
268110-44AP0-YS2 TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
944200-12851 CAP SET, FUEL TANK (EXCEPT CALIF)CAP SET, FUEL TANK (EXCEPT CALIF)
-
944200-05820 CAP SET, FUEL TANK (CALIF ONLY)CAP SET, FUEL TANK (CALIF ONLY)
-
1009329-10016 CUSHIONCUSHION
-
1109407-25402 CLAMPCLAMP
-
1244541-14500 CUSHION, FUEL TANK UPPERCUSHION, FUEL TANK UPPER
-
1344542-14A00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
1409407-30402 CLAMPCLAMP
-
1509320-10020 CUSHIONCUSHION
-
1609320-14013 CUSHIONCUSHION
-
1709180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1801570-06303 BOLTBOLT
