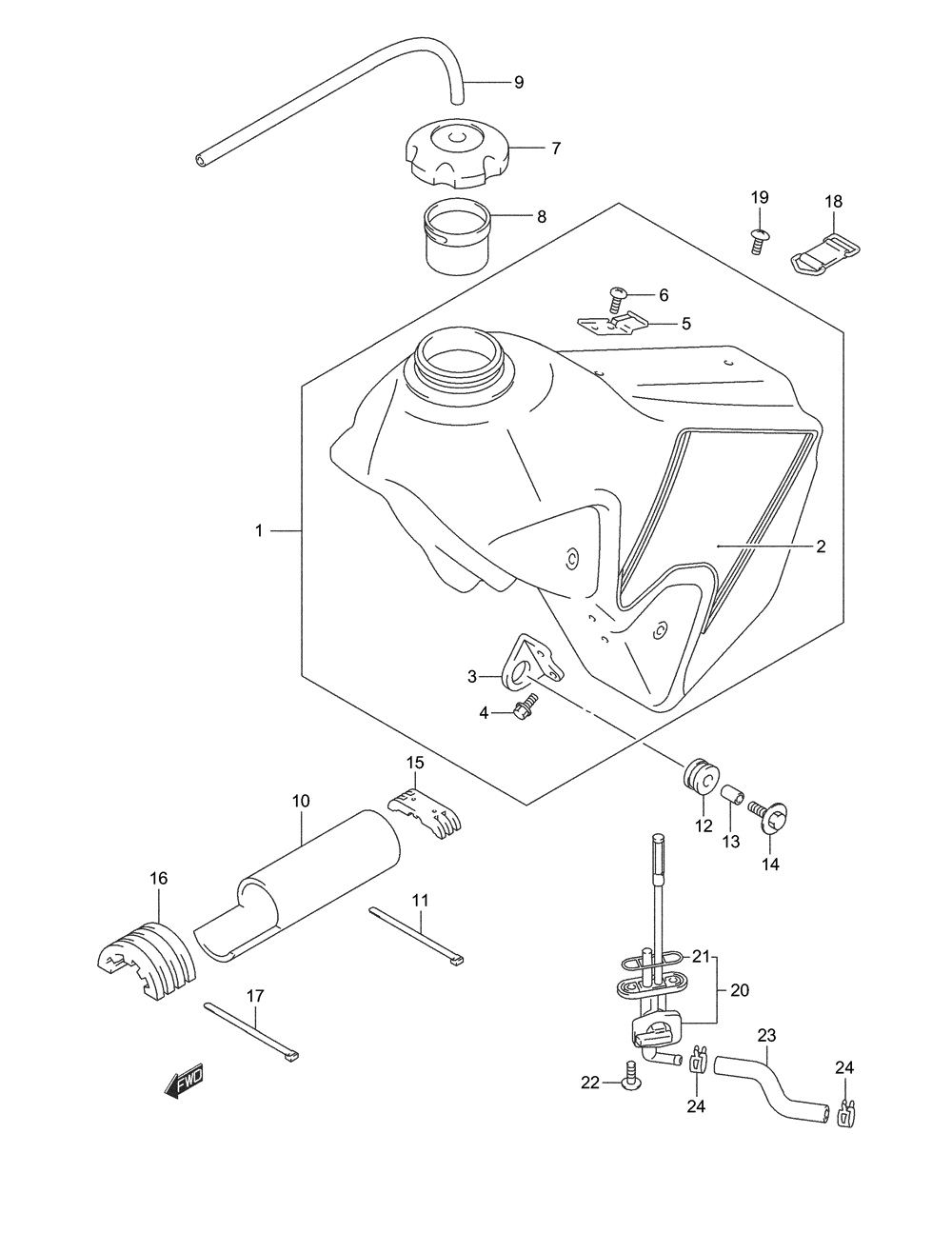

FUEL TANK для Suzuki DR-Z400K1 - 2001 года выпуска`
-
№АртикулНазвание
-
144100-29F50-YR1 TANK ASSY, FUEL (YELLOW, YR1)TANK ASSY, FUEL (YELLOW, YR1)
-
268110-29F20-ER4 TAPE SETTAPE SET
-
344131-27C01 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
401547-06123 BOLTBOLT
-
544132-44E01 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
602142-06123 SCREWSCREW
-
744200-29F00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
844199-19A00 TUBE, INLETTUBE, INLET
-
909352-50823-600 HOSE (L:600!280)HOSE (L:600!280)
-
1044194-29F00 SHIELD, FUEL TANKSHIELD, FUEL TANK
-
1109407-30402 CLAMPCLAMP
-
1214762-01B01 CUSHIONCUSHION
-
1309180-06268 SPACER (6.5X9X13.5)SPACER (6.5X9X13.5)
-
1409118-06112 BOLTBOLT
-
1544542-29F00 CUSHION, REARCUSHION, REAR
-
1644541-29F00 CUSHION, FUEL TANKCUSHION, FUEL TANK
-
1709407-30402 CLAMPCLAMP
-
1844560-44E00 BAND, FUEL TANK REARBAND, FUEL TANK REAR
-
1902142-06163 SCREWSCREW
-
2044300-29F10 COCK ASSY, FUELCOCK ASSY, FUEL
-
2144348-87420 O RINGO RING
-
2201547-06163 BOLTBOLT
-
2344421-29F00 HOSE, FUELHOSE, FUEL
-
2409401-11413 CLIPCLIP
