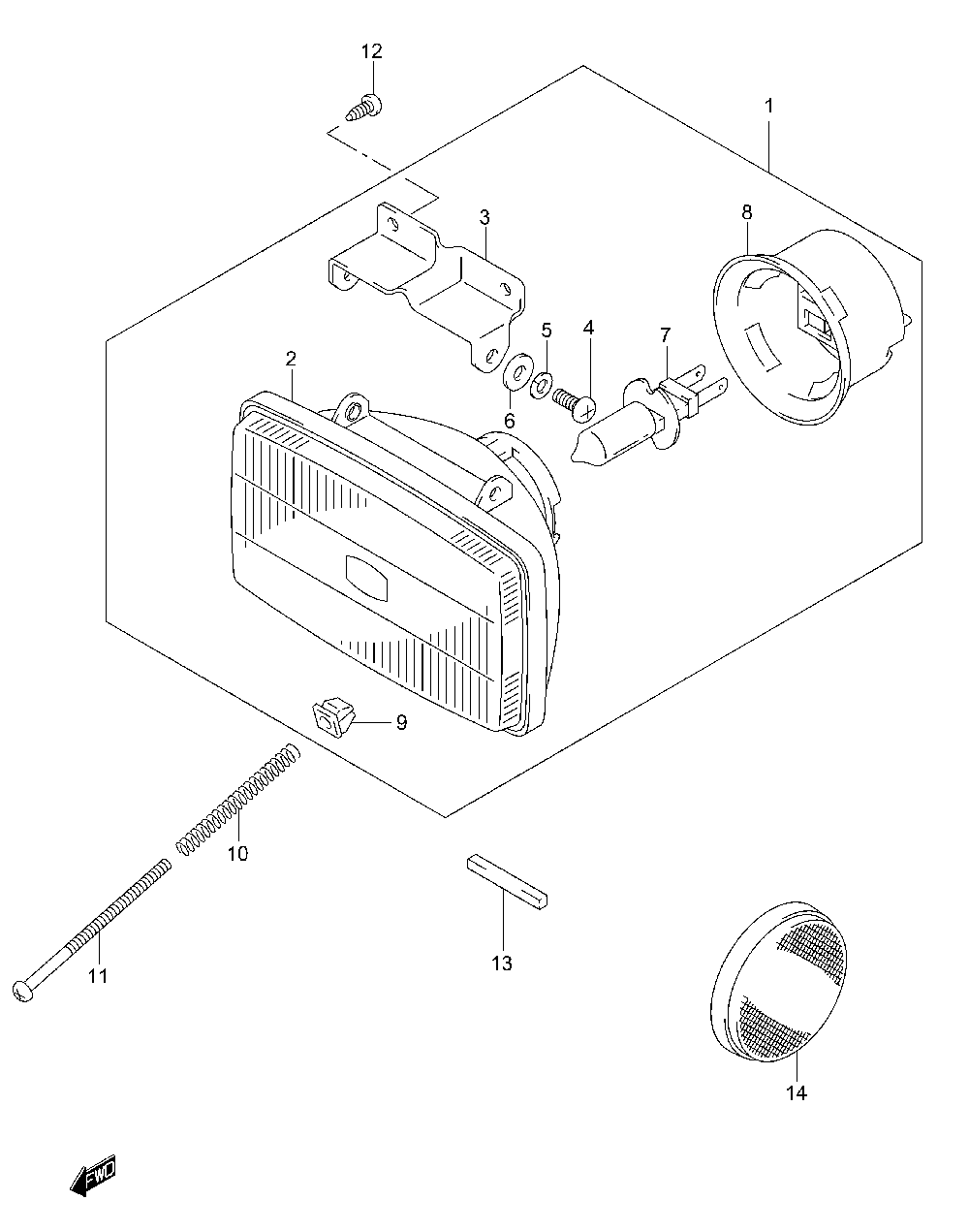

HEADLAMP для Suzuki DR-Z250K1 - 2001 года выпуска
-
№АртикулНазвание
-
135100-05D10 HEADLAMP ASSYHEADLAMP ASSY
-
235121-05D10 UNITUNIT
-
335230-05D00 BRACKET, LAMPBRACKET, LAMP
-
435136-16700 SCREWSCREW
-
508321-01057 LOCK WASHERLOCK WASHER
-
635138-05D00 WASHERWASHER
-
709471-12160 BULB (12V,55W)BULB (12V,55W)
-
835173-05D00 COVER, SOCKETCOVER, SOCKET
-
935135-12E20 NUTNUT
-
1035154-30B00 SPRINGSPRING
-
1109125-04501 SCREWSCREW
-
1203511-04103 SCREWSCREW
-
1333652-20C00 CUSHIONCUSHION
-
1435950-14A00 REFLEX REFLECTOR, FRONT SIDEREFLEX REFLECTOR, FRONT SIDE
