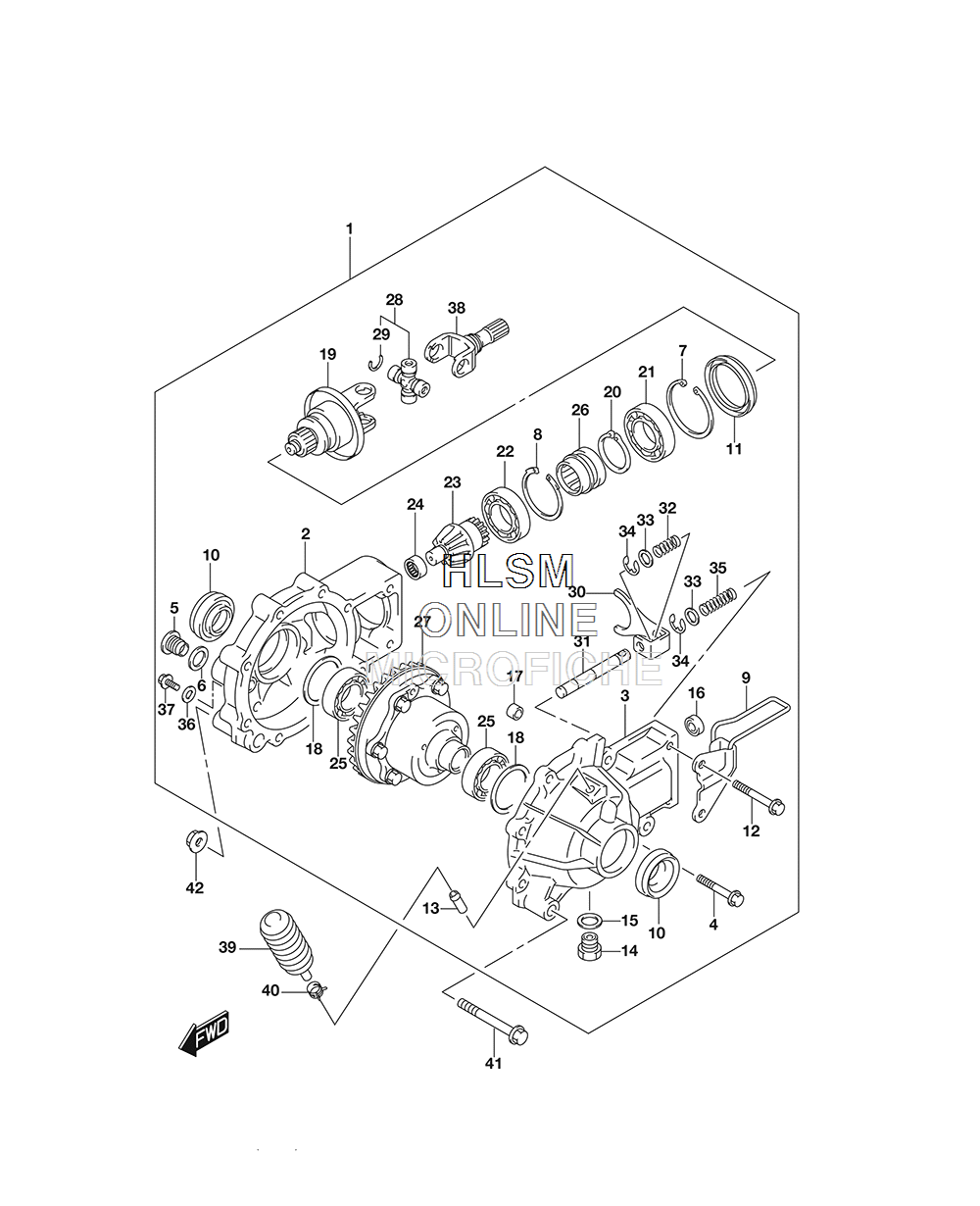

DIFFERENTIAL - FRONT для Suzuki LT-F400FL8 KINGQUAD 400FSI - 2018 года выпуска`
-
№АртикулНазвание
-
127400-38F50 CASE ASSY, FR DIFFERENTIALCASE ASSY, FR DIFFERENTIAL
-
227451-38FB1 ...HOUSING, FINAL DRIVE FR...HOUSING, FINAL DRIVE FR
-
327461-38FA1 ...COVER, FINAL DRIVE FR...COVER, FINAL DRIVE FR
-
427401-38FA1 ...BOLT (8X25)...BOLT (8X25)
-
527409-38FA0 ...PLUG...PLUG
-
627407-38FA0 ...WASHER...WASHER
-
727403-38FA0 ...RING SNAP...RING SNAP
-
827403-38FB0 ...RING SNAP...RING SNAP
-
927951-38FA0 ...BRACKET ASSY, SHIFT...BRACKET ASSY, SHIFT
-
1027406-38FD0 ...OIL SEAL...OIL SEAL
-
1127406-38FB0 ...OIL SEAL...OIL SEAL
-
1227401-38FB0 ...BOLT (8X50)...BOLT (8X50)
-
1309364-08003 ...UNION...UNION
-
1427409-38FB0 ...PLUG...PLUG
-
1527407-38FB0 ...WASHER...WASHER
-
1627406-38FC0 ...OIL SEAL...OIL SEAL
-
1727404-31GA0 ...PIN...PIN
-
1827445-38FA0 ...SHIM SET...SHIM SET
-
1927130-03GA0 ...YOKE ASSY...YOKE ASSY
-
2027403-38FC0 ...SNAP RING...SNAP RING
-
2127405-38FA0 ...BEARING...BEARING
-
2227405-38FB0 ...BEARING...BEARING
-
2327311-11HA0 ...PINION, DRIVE...PINION, DRIVE
-
2427405-38FC0 ...BEARING...BEARING
-
2527405-38FD0 ...BEARING...BEARING
-
2627371-31GA0 ...SLEEVE...SLEEVE
-
2727320-27HA0 ...GEAR ASSY...GEAR ASSY
-
2827200-19810 ...JOINT SET...JOINT SET
-
2909380-20016 ......CIRCLIP......CIRCLIP
-
3027941-38FA0 ...FORK, SHIFT...FORK, SHIFT
-
3127921-38FA0 ...ROD, SHIFT...ROD, SHIFT
-
3227402-38FA0 ...SPRING, SHIFT...SPRING, SHIFT
-
3327407-38FC0 ...WASHER...WASHER
-
3427403-38FD0 ...E RING...E RING
-
3527402-38FB0 ...SPRING, RETURN...SPRING, RETURN
-
3627407-38FD0 ...WASHER...WASHER
-
3727409-38FC0 ...PLUG...PLUG
-
3827151-27HA0 ...YOKE, SHAFT JOINT...YOKE, SHAFT JOINT
-
3927491-38F00 CASE, BREATHERCASE, BREATHER
-
4009401-08411 CLIPCLIP
-
4109103-10148 BOLT (10X110)BOLT (10X110)
-
4208319-3110A NUTNUT
