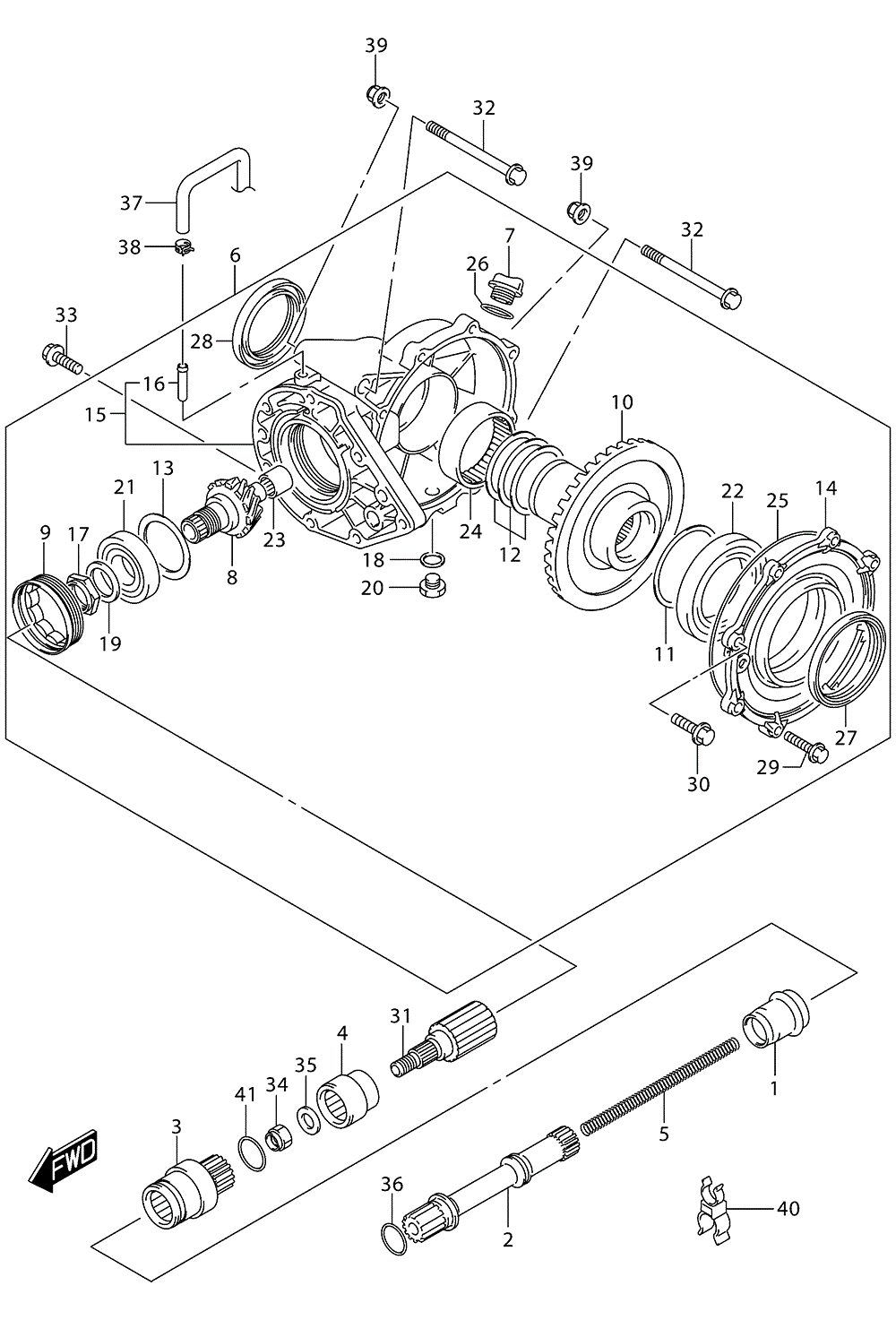

DIFFERENTIAL - REAR для Suzuki KINGQUAD 750AXi POWER STEERING [LT-A750XP] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    27153-31G40 BOOT, JOINT SHAFT
    BOOT, JOINT SHAFT
  • 2
    27155-31G30 SHAFT, REAR PROPELLER
    SHAFT, REAR PROPELLER
  • 3
    27157-31G60 JOINT, REAR PROPELLER SHAFT
    JOINT, REAR PROPELLER SHAFT
  • 4
    27171-31G60 COUPLING, REAR OUTPUT SHAFT
    COUPLING, REAR OUTPUT SHAFT
  • 5
    27192-31G10 SPRING, REAR PROPELLER SHAFT
    SPRING, REAR PROPELLER SHAFT
  • 6
    27410-31G50 CASE ASSY, REAR FINAL GEAR
    CASE ASSY, REAR FINAL GEAR
  • 7
    09259-20008-XC0 ...PLUG
    ...PLUG
  • 8
    27311-31G50 ...GEAR, REAR FINAL DRIVE BEVEL (NT:10)
    ...GEAR, REAR FINAL DRIVE BEVEL (NT:10)
  • 9
    27312-38F00 ...STOPPER, FINAL DRIVE BEARING
    ...STOPPER, FINAL DRIVE BEARING
  • 10
    27320-31G00 ...GEAR, REAR FINAL DRIVEN (NT:36)
    ...GEAR, REAR FINAL DRIVEN (NT:36)
  • 11
    27326-31810 ...SHIM SET (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET (T:0.30/0.35/0.40/0.50/0.60)
  • 12
    27327-31810 ...SHIM SET (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET (T:0.30/0.35/0.40/0.50/0.60)
  • 13
    27445-24810 ...SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)
  • 14
    27451-31G10 ...CASE, REAR FINAL GEAR LEFT HAND
    ...CASE, REAR FINAL GEAR LEFT HAND
  • 15
    27460-31G10 ...CASE, REAR FINAL GEAR RIGHT HAND
    ...CASE, REAR FINAL GEAR RIGHT HAND
  • 16
    09364-08016 ......UNION
    ......UNION
  • 17
    09140-28006 ...NUT
    ...NUT
  • 18
    09168-14002 ...GASKET (13.8X18.8X4.8)
    ...GASKET (13.8X18.8X4.8)
  • 19
    09181-28195 ...SHIM (28X38X1)
    ...SHIM (28X38X1)
  • 20
    09247-14013 ...PLUG (OIL DRAIN)
    ...PLUG (OIL DRAIN)
  • 21
    09262-28023 ...BEARING (28X68X18)
    ...BEARING (28X68X18)
  • 22
    09262-65001 ...BEARING (65X100X11)
    ...BEARING (65X100X11)
  • 23
    09263-20062 ...BEARING (20X34X18)
    ...BEARING (20X34X18)
  • 24
    09263-55003 ...BEARING (55X67X20)
    ...BEARING (55X67X20)
  • 25
    09280-00046 ...O RING (D:2.45,ID:156)
    ...O RING (D:2.45,ID:156)
  • 26
    09280-17003 ...O RING (D:3.1,ID:16.8)
    ...O RING (D:3.1,ID:16.8)
  • 27
    09283-59001 ...OIL SEAL (59X88X8)
    ...OIL SEAL (59X88X8)
  • 28
    09283-59001 ...OIL SEAL (59X88X8)
    ...OIL SEAL (59X88X8)
  • 29
    09103-08357 ...BOLT (8X35)
    ...BOLT (8X35)
  • 30
    09103-10294 ...BOLT (10X45)
    ...BOLT (10X45)
  • 31
    27594-31G80 SHAFT, REAR FINAL DRIVE GEAR
    SHAFT, REAR FINAL DRIVE GEAR
  • 32
    09103-10148 BOLT (10X110)
    BOLT (10X110)
  • 33
    09103-10405 BOLT (10X30)
    BOLT (10X30)
  • 34
    09159-16003 NUT
    NUT
  • 35
    09160-16026 WASHER (16X30X3)
    WASHER (16X30X3)
  • 36
    09280-20002 O RING (D:3.1,ID:19.4)
    O RING (D:3.1,ID:19.4)
  • 37
    27491-31G00 HOSE, BREATHER
    HOSE, BREATHER
  • 38
    09401-10403 CLIP
    CLIP
  • 39
    09159-10115 NUT
    NUT
  • 40
    09408-00235 CLAMP
    CLAMP
  • 41
    09280-35008 O RING (D:3.1,ID:34.4)
    O RING (D:3.1,ID:34.4)
