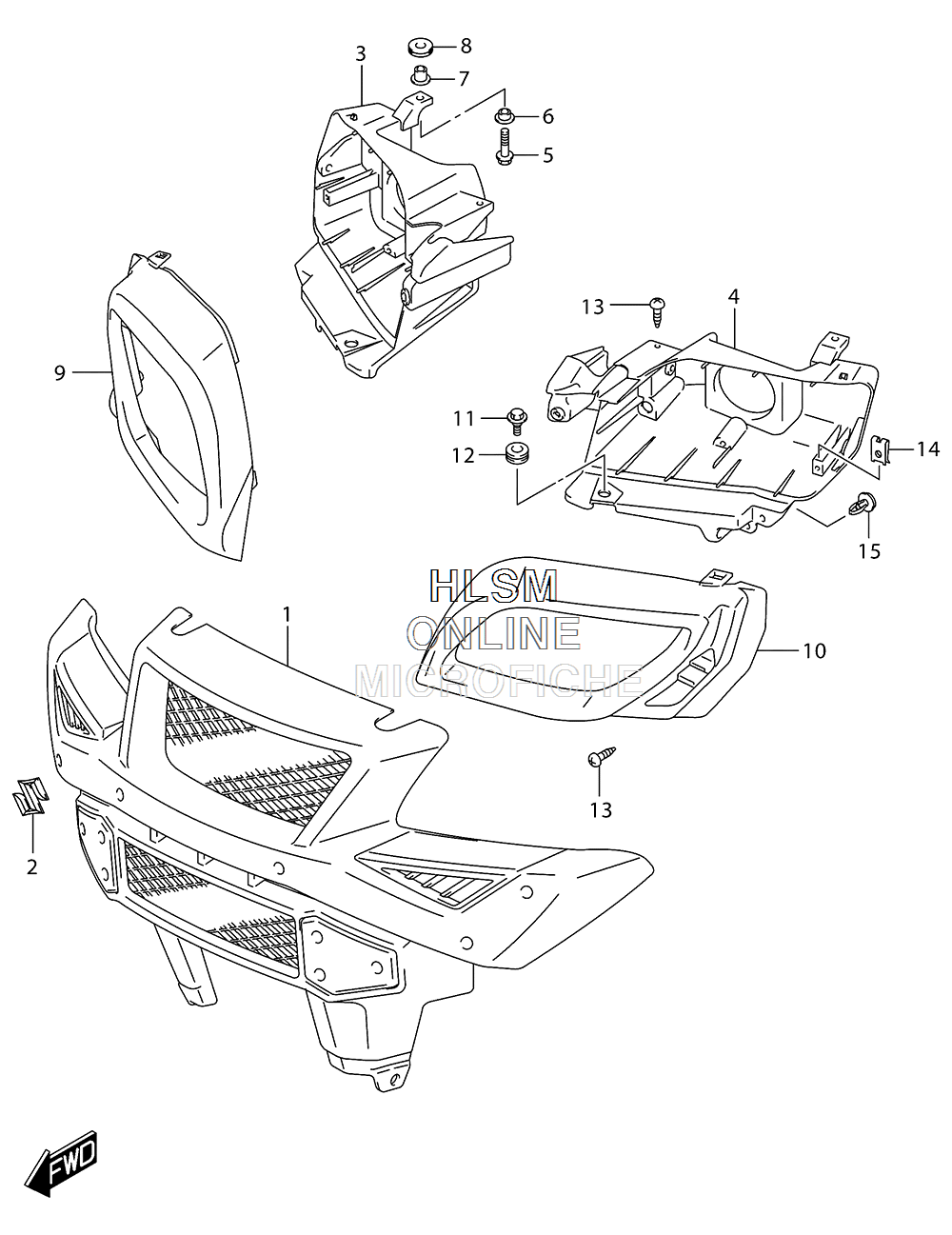

GRILLE - FRONT (CANADA) для Suzuki KINGQUAD 750AXi [LT-A750X] - 2017 года выпуска`
-
№АртикулНазвание
-
153118-31GA0-291 GRILLE, FRONT (BLACK)GRILLE, FRONT (BLACK)
-
268151-03G40 EMBLEM, ''S''EMBLEM, ''S''
-
353281-31G11-291 HOUSING, FRONT RIGHT HAND (BLACK)HOUSING, FRONT RIGHT HAND (BLACK)
-
453284-31G11-291 HOUSING, FRONT LEFT HAND (BLACK)HOUSING, FRONT LEFT HAND (BLACK)
-
501550-0630A BOLTBOLT
-
609169-06073 WASHERWASHER
-
709169-06074 WASHERWASHER
-
809320-11021 CUSHIONCUSHION
-
953282-31G01-291 COVER, RIGHT HAND (BLACK)COVER, RIGHT HAND (BLACK)
-
1053283-31G01-291 COVER, LEFT HAND (BLACK)COVER, LEFT HAND (BLACK)
-
1109139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1209320-10501 CUSHIONCUSHION
-
1303541-0516A SCREWSCREW
-
1409148-05038 NUTNUT
-
1509409-08335 CLIPCLIP
