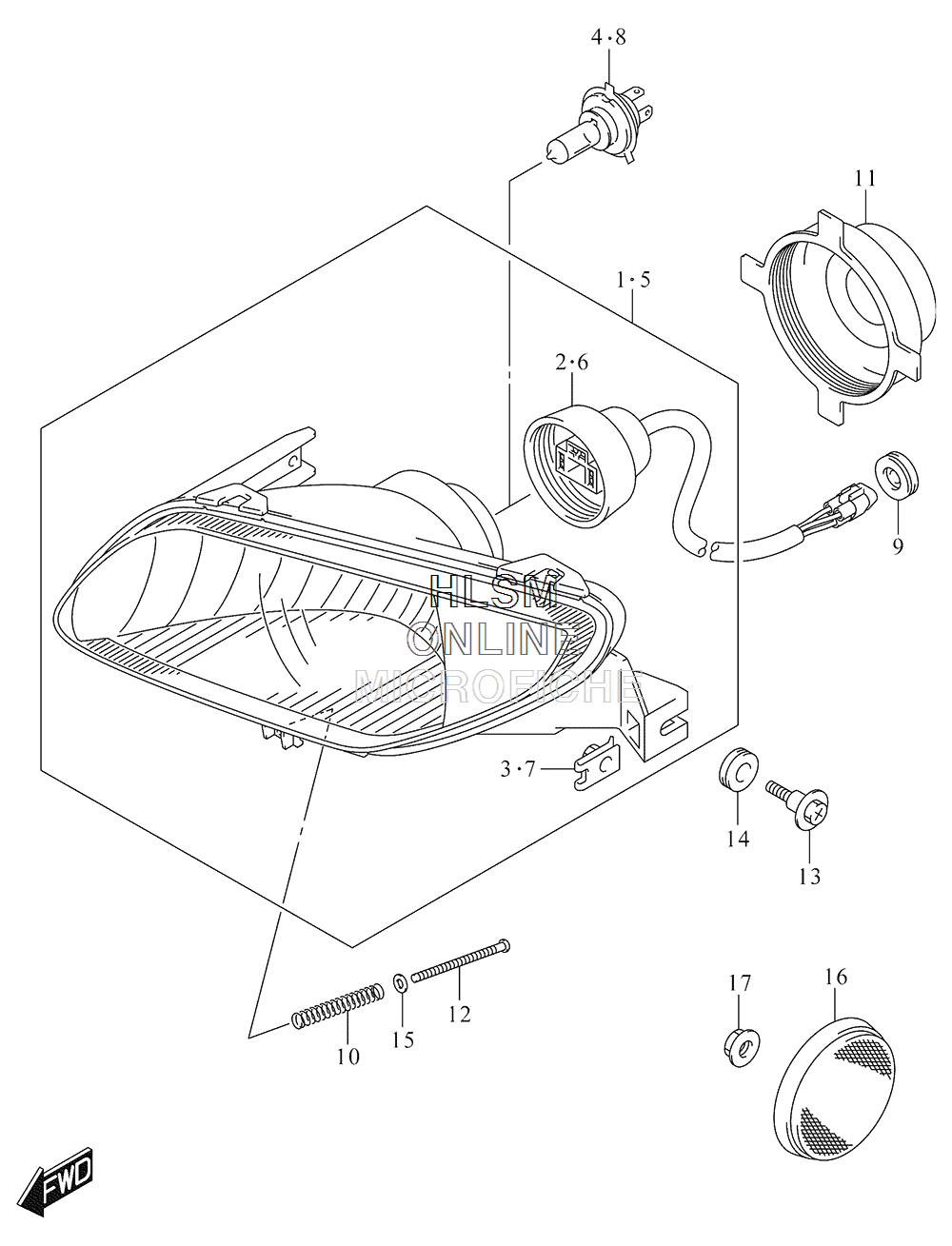

HEADLAMP (CAN) для Suzuki KINGQUAD 750 AXI [LTA750XL6] - 2016 года выпуска
-
№АртикулНазвание
-
135100-31G92-999 HEADLAMP ASSY RHHEADLAMP ASSY RH
-
235171-31GM1 ...CORD ASSY RH...CORD ASSY RH
-
335157-31G90 ...NUT...NUT
-
409471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
535300-31G92-999 HEADLAMP ASSY LHHEADLAMP ASSY LH
-
635171-31GH1 ...CORD ASSY LH...CORD ASSY LH
-
735157-31G90 ...NUT...NUT
-
809471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
909308-07011 GROMMETGROMMET
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10501 CUSHIONCUSHION
-
1508322-0104A WASHERWASHER
-
1635950-14A11 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1708316-1005B NUTNUT
